Walkera Furious 215 RTF Racing Drone with 600 TVL Night Vision HD Camera and DEVO 7 Remote Controller

SKU: WAFURIOUS215

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Robert D : It has some rad features

Reviews about this item

Review Summary

Walkera Furious 215 Specifications

Aircraft

Aircraft

Jump to...
  • Main Rotor Diameter

    127mm (5.00")

  • Remote Controller

    DEVO 7

  • Receiver

    DEVO-RX721

  • Flight Controller

    FCS-F215

  • 5.8G transmitter

    TX5838 (FCC)

  • Brushless Motor

    WK-WS-28-017 (2500KV)

  • Brushless ESC

    Furious 215 ESC

  • Battery

    14.8V 1300mAh 60C 4S LiPo

  • Flight Time

    8 to 9mins

  • Working temperature

    -10 to 40 deg. C (14 to 104 deg. F)

  • Lens

    2.5mm

  • Lens Field of View

    Horizontal: 130 deg.

  • Image Sensor

    1/3" Sony SUPER HAD II CCD

  • Horizontal Resolution

    600TVL

  • Integrated MIC

    Yes

  • WDR

    D-WDR

  • DNR

    2DNR

  • Day/Night

    Color/Auto/B&W

  • Power

    5V to 17V

DEVO 7 Remote Controller

Jump to...
  • Frequency

    2.4GHz DSSS

  • Output power

    <=100mW

  • Current consumption

    <=230mA(100mW)

  • Power Supply

    5# Battery 8x 1.5V or NiMH 8x 1.2V 1600-2000mAh

  • Output Pulse

    1000-2000mS (1500Ms Neutral)

Transmitter

Jump to...
  • TX5838 (FCC) Transmitter

    5.8G wireless image transmission
    TX5838 B-band 8-channel selection
    TX5838 output power<=200mW

Charger

Jump to...
  • Model

    GA009

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

Propeller

Jump to...
  • Model

    5040

  • Size

    5" (12.70cm)

General

Jump to...
  • Maximum Operating Distance

    4921' (1499.94m) at 2.4GHz

  • Number of Rotors

    4

  • Diagonal Size

    8.5" (21.59cm) (Without Propellers)

  • Dimensions (LxWxH)

    168 x 209 x 71.5mm (6.61 x 8.23 x 2.81")

  • Weight

    375g (13.23 oz) (Excluding battery)

About Walkera Furious 215

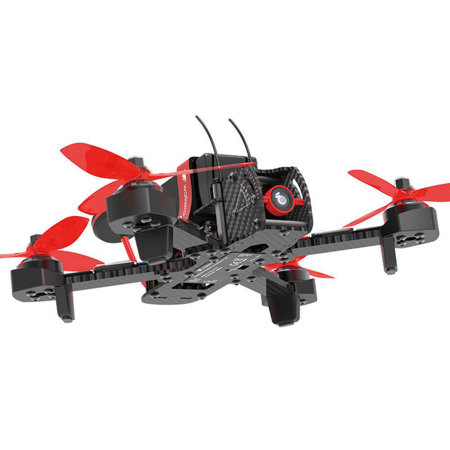

With powerful dynamical system and swift responsiveness committed to achieving excellent flight experience, the readily-flying Furious 215 racer at 215mm wheel base is suitable for both professional racing events and thrilling freestyle flying. With advanced airframe design, featuring simple/lightweight body, robust/crashproof structure and extreme openness, it enables players to DIY upgrade or replace all key components. Having Furious 215 at hand, you can progress to excellence from underperformance.

Furious, Swift as Lightning
ESC supporting one-shot 125/oneshot42, high accelerator responsiveness makes operation as swift as lightning. High-performance 2500KV brushless motor combined with 5040 5" propeller and 4S power battery, powerful momentum speaks itself.

Stable Center of Gravity
Rectangle airframe with batteries on top, smooth and stable flight, both track racing and freestyle flight accessible Compact gadget design saves space by removing unnecessary wiring and centers airframe center of gravity by lowering battery fitting surface to 30mm.

Carbon Fiber Airframe + Independent Arms
Its airframe made of high strength carbon fiber, robust arm at 4mm thickness; 4 independent arms achieve lower maintenance cost.

Multiple Reinforcements
Those parts extremely vulnerable in high velocity impacts are well reinforced.

Aluminum Fittings
Triangle aluminum components are used to fix airframe; aluminum alloy posts improve airframe strength.

Motor Guard
Designed to be coupled with safety guard and buffer bracket, brushless motor can stand rigorous reliability tests. Robustness & resistance to wear highlight its quality assurance.

Carbon Fiber Airframe
Airframe made of high-strength carbon fiber and supported by metal posts makes the aircraft robust and crash proof.

Protruded Redundancy Design
Redundancy design is employed and highlighted at bottom plate tail so as to make sure that video transmission antenna is not suffered from powerful impact.

Camera Protection
Camera is protected with carbon fiber reinforced polymer at its head, with metal posts consolidated with 3 screws at bottom and top, which can effectively disperse impacts.

Camera Mount
Compatible with sports cameras at different sizes of popular mainstream brands like GoPro hero4, GoPro hero5 session, Xiaoyi & Runcam, its mount is provided with tightening straps at multiple directions.

Integrated PDB (power distribution board)
Airframe is integrated with PDB that is shaped in line with airframe bottom plate to completely fit it. Electronic speed controller (ESC) output extends to arms, greatly shortening the distance of the welding wire. Onboard active beeper and integrated OSD, provided with OSD tuning connector at its bottom for the purpose of tuning.

Battery Space
XT60 power connector and video transmission antenna connector are placed in its after body, allowing more space for batteries and obtaining better video transmission effect by minimizing sheltering of video transmission antenna.

Professional Imaging System
With ultra-high reduction and ultra-wide dynamicity, the beautifully colored high-definition camera 600TVL exceptionally performs under the lowlight and backlight surrounding and capable of perfectly adapting to complicated environments. Equipped with FOV-130 deg. wide-angle lens of focus-2.5mm, it is committed to delivering awesome visual experience. Its high-performance video transmission system supports 600mW(at maximum) power switching (FCC version), achieves transmission distance of 1.5 kilometers at maximum thanks to HG omni-directional mushroom antenna.

Adjustable Angle of View
An embodiment of humanized scale design is angle scale specially added at both sides of camera, so that players can memorize their preferences, not blindly adjust their angles of view, meanwhile aware of their progress(aircraft flying speed is in direct proportion to angle of view and aircraft inclination, i.e. the faster the aircraft speed is, the larger the angle of view is and the larger the aircraft inclination is).

Mainstream F3 flight controller employed to make convenient upgrading and tuning
Equipped with mainstream F3 flight controller ,which enables players to perform autonomous tuning. Boot key is equipped on the flight controller to brush and upgrade betaflight and cleanflight SPracing F3 firmware.

Provide many DIY interfaces, expand the creative space for players

Sbus Communication Protocol
Supporting 3rd-Party Receiver Extended Employing sbus communication protocol, Furious 215 remote-control receiver can achieve rapid response. Provided with PPM/SBUS receiver connector, the flight controller enables DIY players to install 3rd-party receivers that are controllable using 3rd-party remote control.

Dazzling Light
It supports LED Strip programmable light strip, in addition to taillight supplied, provides 5V LED light connectors at both sides of PDB, which facilitates DIY installation of LED strips. Amazing marquee effect can be achieved by simply programming flight controller.

MR Drone simulator, your best FPV companion
A Mr Drone simulator activation code and a USB dongle are included in both RTF version and BNF version package, which will greatly improve your flying skills in a short time.

What's in the box:

  • Walkera Furious 215 RTF Racing Drone with 600 TVL Night Vision HD Camera
  • GA009 Charger
  • Mr Drone Simulator Activation Code
  • Mr Drone USB Dongle
  • DEVO 7 Remote Controller
  • DEVO-RX721 Receiver
  • TX5838 (FCC) 5.8G Transmitter Antenna
  • 1300mAh LiPo Drone Battery
  • GoPro Camera Mount
  • Walkera Warranty
