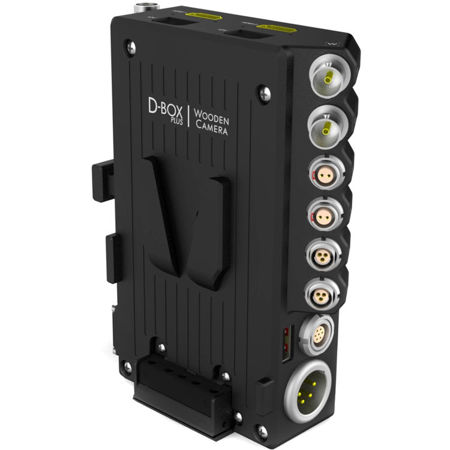

Wooden Camera D-Box Plus Distribution Adapter Box for ARRI ALEXA Mini Camera (V-Mount)

Why settle for less when you can have the D-Box Plus Distribution Adapter Box for ARRI ALEXA Mini Camera (V-Mount)? This high-quality, professional-grade accessory is a significant upgrade from the already popular D-Box Alexa Mini. Designed to seamlessly interface with your camera's Power, EXT, and SDI ports, the D-Box Plus ensures a smooth and efficient workflow for your photography or videography sessions.

The D-Box Plus features a full-size 4-pin XLR connector as its DC input, which is prioritized for use, keeping your onboard battery fully charged and ready for action. Unlike its predecessor, the D-Box Plus replaces physical fuses with a processor-controlled amp limit. This innovative feature can be set to 3.8, 5.8, or 9 amps using the slide switch on the operator's side, providing you with more control over your equipment's power consumption.

In the event of an overload, the D-Box Plus smartly disables only the accessory outputs, ensuring your camera continues to function normally. Once the current load is reduced, a simple press of the reset button will re-enable accessory power.

Built with the highest quality Anton Bauer components, the V-Mount assembly is both durable and lightweight. The unibody power plate design adds to the robustness of the device, making it a reliable companion for your ARRI ALEXA Mini Camera.

The D-Box Plus is equipped with a multitude of interfaces, including a V-Mount Power Plate, three HD-SDI outputs, two HDMI outputs, and various connectors for 24V and 12V accessories. It also includes a 5V USB port and an EXT port to maintain the functionality of external communication for Starlite monitor, R/S, and power.

The D-Box Plus comes with three compatible cables, each 16 inches in length, for easy connection to your camera. The bottom of the D-Box features two 1/4-20 holes for direct attachment to Rod Clamps of various sizes. For an adjustable mount system, you can use the Battery Slide or Battery Swing.

The D-Box Plus is designed to attach to the ARRI BAP-1, and instructions for this are included in the box. The connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.

In summary, the D-Box Plus Distribution Adapter Box for ARRI ALEXA Mini Camera (V-Mount) is a versatile, compact, and durable solution for your power distribution needs. It's the perfect tool to enhance your professional photography or videography setup.
