Wooden Camera Pro Accessory Kit

Shop the Wooden Camera Pro Accessory Kit for RED KOMODO. Durable aluminum build, 15mm LWS baseplate, and V-Mount battery slide. Order today!

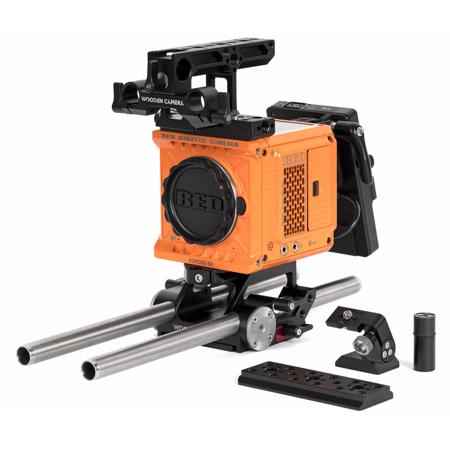

RED KOMODO Accessory Kit (Pro, V-Mount) is an accessory kit for RED KOMODO that includes the LW 15mm Baseplate, Complete Top Mount Kit, Battery Slide Pro V-Mount, and 2x 15mm Rods (12").The LW 15mm Baseplate (RED KOMODO) provides 15mm lightweight rod openings at the correct distance to the center of the lens. ARRI standard, M6 rosettes are on both sides along with 1/4-20 threaded holes. 3/8-16 ARRI accessory mount also available on camera right side.Baseplate features upper ARCA Swiss standard dovetail with center screw channel and vertical lens support post system. Attach one 1/4-20 and 3/8-16 screw to camera bottom and position vertical, 1/4-20 rod post underneath lens adapter like Canon RF to PL Mount Pro (RED KOMODO).Lower dovetail slot is ARRI standard for attaching to ARRI dovetails or the included Quick Dovetail. With Quick Dovetail attached, the baseplate and camera combination can be combined with an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio).The Complete Top Mount Kit (RED KOMODO) features a Top Mount that attaches to the camera body using two captive 1/4-20 screws and provides a center ARCA Swiss dovetail clamping slot along with 1/4-20 and 3/8-16 threaded holes for attaching accessories.Included Top Handle slides into ARCA slot and leaves camera control screen easily accessible. Shoe mount on top can hold on-camera lights and microphones and side 15mm opening can hold included monitor arm or UVF Mount V2. 1/4-20 and 3/8-16 ARRI accessory mount in several places and 15mm lightweight rod bracket on front for attaching lens motors and more.Monitor Hinge can attach into ARCA slot and provides a direct 1/4-20 mount for SmallHD monitors. Included rubber pad can be added for attaching third party monitors. A 15mm mounting spud is included and allows monitor arm to be quick released and attached onto Top Handle.Top Plate slides into ARCA slot to provide rows of 1/4-20 and 3/8-16 ARRI accessory mounts in standard spacing and can be adjusted forwards to allow camera control screen access. Great for attaching to gimbal and drone systems or for using legacy Wooden Camera products.The Battery Slide Pro V-Mount (RED KOMODO) attaches to the camera-left, BP-9 battery slot and powers the camera using a right angle LEMO compatible connector. Thumbscrew can be loosened to tilt and slide the plate as needed.Three D-Taps on the plate provide battery voltage for accessories and power is monitored for over-current. If more than 5.8A are used by accessories, a digital fuse will trip and the red LED will illuminate but the camera will remain powered. Reset button can be pressed to restart accessory power once.DC Input on camera-right side can be used for hot-swapping between block battery and on-board battery. While the AC adapter that comes with the KOMODO can be used, please note that it may not be powerful enough to sustain the camera and accessory draw.If hot-swapping between V-Mount battery and BP-955 battery is desired, please consider Battery Slide Extension for Canon BP-955 Hot Swap (RED KOMODO) which moves the battery plate further back from the camera body.

Wooden Camera Pro Accessory Kit for RED KOMODO, V-Mount

Key Features
