Williams Sound DL102 2A RMS Counter Loop Amplifier System, Includes PLW 037 120' Loop Wire, PLM 001 Loop Mat and MIC 027 Shotgun Mic

SKU: WSDL102SY2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Williams Sound DL102 Specifications

Amplifier

Amplifier

Jump to...
  • Audio Input

    3 (1 microphone or line input, isolated line input, Mic)

  • Connector Type

    3.5mm jack, Mic-2 pole line in, 3 pole line in, Mic in

  • Power Supply

    12V DC 1.5 A output

  • Power Voltage

    100-240VAC, 50/60Hz - 2.0A Input

  • Dynamic Range

    > 60 dB

  • THD

    THD+N < 0.5% - 1kHz

  • Amplifier Type

    Constant current

  • Loop Resistance

    0.1 Ohms to 1.0 Ohms

  • Current Output

    2A RMS at 1kHz (2.8 APK)

  • Protection

    Thermal, short-circuit and start

Microphone

Jump to...
  • Phantom Powered

    No

  • Impedance

    1.4 kOhms

  • Operating Voltage

    1.5 - 10 VDC

  • Frequency Response

    20 Hz - 18 kHz

  • Dynamic Range

    99 dB

  • Signal-to-Noise Ratio

    74 dB

  • Pick-Up Pattern

    Uni-directional

  • Element

    Electret Condenser

  • Max Input Sound Level

    119 dB SPL

  • Sensitivity

    -56 dB +/- 3 dB

  • Plug

    3.5 mm mono

  • Cord Length

    49" (1244.60mm)

  • Approvals

    WEEE, RoHS

Loop Mat

Jump to...
  • Lead Wire Length

    16' (4.88m)

  • DC Resistance

    1.3 Ohms

  • Pad

    14" (355.60mm)/ 0.4m (1.31') square

  • Wire In Pad

    10-turn loop

Loop Wire

Jump to...
  • Length

    120' (36.58m)

General

Jump to...
  • Dimensions

    Amplifier: 3.9 x 2.3 x 1" (99.06 x 58.42 x 25.40mm)
    T-Coil: 10.37 x 6.25 x 0.125" (263.40 x 158.75 x 3.18mm)
    Microphone Stand: 4.12 x 5 x 1" (104.78 x 127.00 x 25.40mm)
    Loop Wire: Dia. 6.5" (165.10mm) (Spool)

  • Weight

    Amplifier: 0.48 lbs (0.22kg)
    Microphone: 0.54 lbs (0.24kg)
    Loop Mat: 0.5 lbs (0.23kg)
    Loop Wire: 9.8 lbs (4.45kg) (Spool)
    Microphone Stand: 1.01 lbs (0.46kg)

About Williams Sound DL102

You can enhance the auditory experience for individuals with hearing impairments with the DL102 2A RMS Counter Loop Amplifier System by Williams Sound. This innovative and user-friendly system is designed to seamlessly integrate with T-coil enabled hearing devices, providing clear and amplified audio in intimate settings such as service counters and help desks. The DL102 Loop Amplifier ensures that users can effectively hear without the need for a direct connection to service personnel, fostering an inclusive environment for all.

The system includes a high-quality PLM 001 Power Loop Mat, a durable 14" nylon fabric mat with a ten-turn loop, which can be discreetly placed under seat cushions or counters. When paired with the amplifier, it creates a magnetic field of approximately 36" x 36", allowing for optimal T-coil hearing aid reception. This mat is perfect for a variety of applications, including kiosks, pharmacies, bank teller windows, and ticket counters, as well as for portable use in meetings as a chair loop.

Accompanying the loop amplifier and mat is the PLW 037 120' Loop Wire, a 120-foot spool of 18-gauge wire in a discreet white color, ensuring a reliable and extensive reach for your audio setup.

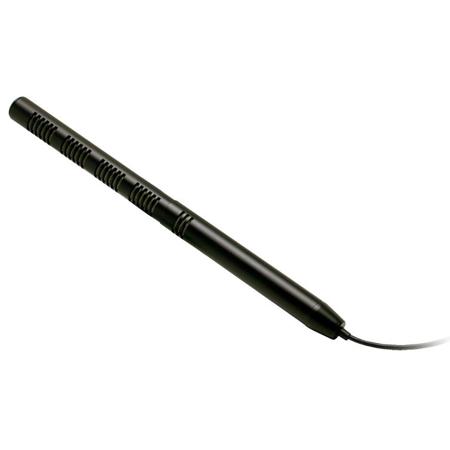

The system also features the MIC 027 Shotgun Microphone, a hand-held directional microphone with improved RF resistance and a unidirectional condenser that captures sound frequencies from 20 Hz to 18 kHz. The microphone includes a 3.5 mm mono plug and a 49" cord, making it versatile for use with various Williams Sound transmitters and interpreters.

To inform your customers of the hearing assistance available, the IDP 009 ADA Wall Plaque is an attractive and informative display that clearly indicates the presence of a T-coil compatible system. The self-adhesive plaque measures 10-3/8" (L) x 6-1/4" (W) x 1/8" (H) and can be easily mounted in a visible location.

Lastly, the STD 005 Stand provides a stable base for the MIC 027 microphone, ensuring it remains in the optimal position for capturing audio during use.

The DL102 2A RMS Counter Loop Amplifier System is a complete, portable, and high-quality solution for enhancing live performance audio for those with hearing loss. Choose this system for its comprehensive features and the reputable expertise of Williams Sound in the field of audio amplification.

Williams Sound DL102 Features

  • Seamless integration with T-coil hearing aids for amplified audio in intimate environments
  • Durable PLM 001 Power Loop Mat creates a 36" x 36" magnetic field for optimal hearing aid reception
  • Includes 120' of PLW 037 Loop Wire for extensive and flexible audio setup configurations
  • MIC 027 Shotgun Microphone with unidirectional condenser and RF resistance for clear sound capture
  • Informative IDP 009 ADA Wall Plaque to indicate hearing assistance system availability
  • STD 005 Microphone Stand ensures stable and optimal positioning of the MIC 027 during use

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamless integration with T-coil hearing aids for amplified audio in intimate environments
  • Includes 120' of PLW 037 Loop Wire for extensive and flexible audio setup configurations
  • MIC 027 Shotgun Microphone with unidirectional condenser and RF resistance for clear sound capture
  • Informative IDP 009 ADA Wall Plaque to indicate hearing assistance system availability
  • STD 005 Microphone Stand ensures stable and optimal positioning of the MIC 027 during use

What's in the box:

  • Williams Sound DL102 2A RMS Counter Loop Amplifier
  • PLW 037 120' Loop Wire
  • PLM 001 Loop Mat
  • MIC 027 Shotgun Microphone
  • IDP 009 T-Coil ADA Wall Plaque
  • STD 005 Shotgun Microphone Stand
  • WND 027 Windscreen for Shotgun Microphone
  • Williams Sound 2 Year Warranty for Amplifier (90 Day for Accessories)
