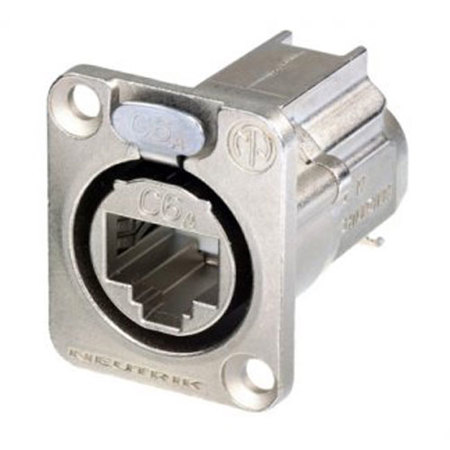

Whirlwind Neutrik D-shape CAT6A Panel Connector, Shielded, Nickel Housing
See all Whirlwind items

Whirlwind Neutrik D-shape CAT6A Panel Connector, Shielded, etherCON, IDC Termination, Nickel Housing

SKU: WWNE8FDXY6 MFR: NE8FDX-Y6
Be the first to review this itemAsk a Question
$24.04
Earn VIP Reward Points

Key Features

  • Rugged CAT6A panel connector with a durable nickel housing for reliable network connections.
  • Achieve superior data transfer speeds with this shielded etherCON connector, perfect for pro audio.
  • Enjoy long-lasting performance with a CAT6A connector rated for over 1000 mating cycles.
  • Simplify installations using the IDC termination, compatible with solid and stranded wires.
  • This Neutrik D-shape connector supports Power over Ethernet (PoE+) for efficient power delivery.
  • Ensure secure connections with the latch lock, designed for front mounting in any setup.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Whirlwind CAT6A Panel Connector Specifications

Electrical

Electrical

Jump to...

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 0.5 GOhm

  • Rated current per contact

    1.5 A

  • Transmission performance

    CAT6A, acc. TIA/EIA rating
    Class EA, acc. IEC/ISO/EN rating

  • Power over Ethernet

    PoE+ acc. IEEE 802.3at

Mechanical

Jump to...

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    solid: AWG 26/1 - AWG 22/1
    stranded: AWG 26/7 - AWG 22/7

  • Locking device

    Latch lock

  • Mounting direction

    Front mounting

  • Insulation diameter

    0.03 - 0.06" (0.85 - 1.6mm)

Material

Jump to...

  • Contact plating

    Au

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Nickel

Environmental

Jump to...

  • Flammability

    UL 94 V-0

  • Temperature range

    -40 Degree C to + 70 Degree C

Other

Jump to...

  • UPC Code

    7613187009259

About Whirlwind CAT6A Panel Connector

D-shape CAT6A panel connector, shielded, IDC termination, nickel housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S cables.

Whirlwind CAT6A Panel Connector Features

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • Rugged latch lock system million fold proven
  • Shielded system - high noise immunity and EMI protection
  • PoE+ compliant according to 802.3at Type2
  • Intermateable with the existing etherCON CAT5 range

Warranty Information

This product has a limited warranty of 6 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Rugged CAT6A panel connector with a durable nickel housing for reliable network connections.
  • Achieve superior data transfer speeds with this shielded etherCON connector, perfect for pro audio.
  • Enjoy long-lasting performance with a CAT6A connector rated for over 1000 mating cycles.
  • Simplify installations using the IDC termination, compatible with solid and stranded wires.
  • This Neutrik D-shape connector supports Power over Ethernet (PoE+) for efficient power delivery.
  • Ensure secure connections with the latch lock, designed for front mounting in any setup.

What's in the box:

  • Neutrik D-shape CAT6A Panel Connector (Nickel Housing)
  • Whirlwind Neutrik 180 Day Limited Warranty
