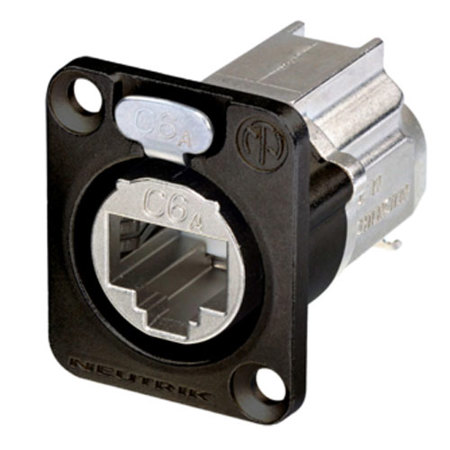

Whirlwind Neutrik D-shape CAT6A Panel Connector, Shielded, Black Housing
See all Whirlwind items

Whirlwind Neutrik D-shape CAT6A Panel Connector, Shielded, etherCON, IDC Termination, Black Housing

SKU: WWNE8FDXY6B MFR: NE8FDX-Y6-B
Be the first to review this itemAsk a Question
$31.24
Earn VIP Reward Points

Key Features

  • Ensure reliable network connections with this CAT6A panel connector for superior performance.
  • Shielded etherCON connector guarantees optimal data transfer, minimizing signal interference.
  • Built to last: Durable Neutrik D-shape housing ensures a secure, long-lasting CAT6A connection.
  • Simplify installations: IDC termination allows for quick and easy field terminations of CAT6A cables.
  • Front mounting design makes this CAT6A panel jack mount ideal for various applications.
  • Black housing offers a sleek, professional look while providing robust CAT6A connectivity.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Whirlwind CAT6A Panel Connector Specifications

Electrical

Electrical

Jump to...

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 0.5 GOhm

  • Rated current per contact

    1.5 A

  • Transmission performance

    CAT6A, acc. TIA/EIA rating
    Class EA, acc. IEC/ISO/EN rating

  • Power over Ethernet

    PoE+ acc. IEEE 802.3at

Mechanical

Jump to...

  • Lifetime

    > 1000 mating cycles

  • Wiring

    Feedthrough

  • Wiresize

    solid: AWG 26/1 - AWG 22/1
    stranded: AWG 26/7 - AWG 22/7

  • Locking device

    Latch lock

  • Mounting direction

    Front mounting

  • Insulation diameter

    0.03 - 0.06" (0.85 - 1.6mm)

Material

Jump to...

  • Contact plating

    Au

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black

Environmental

Jump to...

  • Flammability

    UL 94 V-0

  • Temperature range

    -40 Degree C to + 70 Degree C

About Whirlwind CAT6A Panel Connector

Just introduced is the Neutrik D-shape CAT6A Panel Connector, a robust and high-quality product designed for optimal performance in various applications. This durable connector, housed in a sleek black casing, is crafted by the reputable brand, Whirlwind, renowned for its reliable audio and video equipment.

The connector is shielded, a feature that significantly reduces interference, thereby enhancing the overall performance of your connection. It's equipped with IDC termination, ensuring a secure and stable connection for your Ethernet cables with RJ-45 connectors.

Please note, this CAT6A panel connector does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S cables.

Whether you're setting up a networking system, an audio/video setup, or a security system, this sturdy and reliable Neutrik D-shape CAT6A Panel Connector is an excellent choice. Trust in the quality and reliability of Whirlwind products to deliver superior performance in all your professional audio and video equipment needs.

Whirlwind CAT6A Panel Connector Features

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • Rugged latch lock system million fold proven
  • Shielded system - high noise immunity and EMI protection
  • PoE+ compliant according to 802.3at Type2
  • Intermateable with the existing etherCON CAT5 range

Warranty Information

This product has a limited warranty of 6 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure reliable network connections with this CAT6A panel connector for superior performance.
  • Shielded etherCON connector guarantees optimal data transfer, minimizing signal interference.
  • Built to last: Durable Neutrik D-shape housing ensures a secure, long-lasting CAT6A connection.
  • Simplify installations: IDC termination allows for quick and easy field terminations of CAT6A cables.
  • Front mounting design makes this CAT6A panel jack mount ideal for various applications.
  • Black housing offers a sleek, professional look while providing robust CAT6A connectivity.

What's in the box:

  • Neutrik D-shape CAT6A Panel Connector (Black Housing)
  • Whirlwind Neutrik 180 Day Limited Warranty
