New Arrival

XVIVE U35 5.8GHz Dynamic Wireless Microphone System

SKU: XVU35 MFR: U35
Earn VIP Reward Points

Key Features

  • Experience crystal-clear sound quality with the XVIVE U35 5.8GHz wireless microphone system.
  • Enjoy freedom of movement with an impressive wireless signal range of up to 100 feet.
  • Benefit from up to 5 hours of reliable battery life, perfect for extended performances.
  • Set up is a breeze, ensuring an easy to use experience for all your audio needs.
  • This durable system is designed for consistent, professional audio in various environments.
  • Achieve seamless compatibility with dynamic and battery-powered XLR-output condenser microphones.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

XVIVE U35 Specifications

System
  • Tuning bandwidth

    Int: 5730-5844 MHz; Korea: 5729-5821MHz

  • Wireless signal range

    Up to 100' (30.48m) Actual range depends on RF signal absorption, reflection and interference

  • Audio frequency response

    20Hz - 20kHz (-3dB), dependent on microphone type / input signal

  • Dynamic range

    110 dB

  • Battery life

    Up to 5 hours

  • RF sensitivity

    -88 dBm

  • Total harmonic distortion

    0.2%

  • RF output power

    25 mW E.I.R.P. max

  • Operating Temperature Range

    32 to 113 Degree F (0 to 45 Degree C) (battery characteristics may limit this range)

  • Channel count

    Up to 6 channels (and U35 sets) can be used simultaneously in one area

  • Charging voltage and current

    5V / 2A

  • Signal-to-noise ratio

    110 dB

Transmitter

Jump to...
  • Color

    Black

  • Material

    Molded plastic and cast metal

  • Battery

    3.7V Rechargeable Li-ion, 860 mA

  • Impedance

    Input: 220k Ohm (1 kHz)

  • Audio input connector

    Balanced XLR female

  • Maximum input level

    Mic mode: 2.8 Vp-p / Line mode: 7 Vp-p

  • Gain adjustment range

    Mic mode: 0 dB / Line mode: -10 dB

  • Battery life

    Up to 5 hours

  • Microphone types supported

    XLR-output dynamic and battery-powered XLR-output condenser

  • Antenna impedance

    50 Ohm

  • Antenna type

    1/4 wave sleeve dipole, non-removable

  • Number of antennas

    1

  • Dimensions

    1.2 x 1.1 x 3.9" (31 x 29 x 98mm)

  • Weight

    3.3 oz (93g)

Receiver

Jump to...
  • Color

    Black

  • Material

    Molded plastic and cast metal

  • Battery

    3.7V Rechargeable Li-ion, 860 mA

  • Impedance

    Output: 470 Ohm (1 kHz)

  • Audio output connector

    Unbalanced XLR male

  • Maximum output level

    2.8 Vp-p

  • Battery life

    Up to 5 hours

  • Antenna impedance

    50 Ohm

  • Antenna type

    1/4 wave sleeve dipole, non-removable

  • Number of antennas

    2

  • Dimensions

    3.2 x 1.2 x 1.1" (81 x 31 x 29mm)

  • Weight

    3.2 oz (92g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • UPC Code

    6943050422061

About XVIVE U35

Discover the freedom of wireless-live, at home or in the studio-and roam free with your favorite microphone! U35 broadcast on the 5.8 GHz wireless channel, avoiding interference from common 2.4 GHz devices.

The system

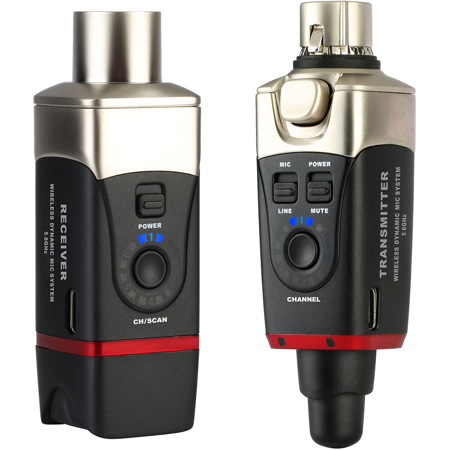

The U35 system is comprised of a Transmitter unit, which connects to your microphone; and a Receiver, which connects to a mixer, sound interface, preamp, XLR cable or snake.

Your true voice
The U35 systems feature high-resolution, 24-bit / 48 kHz audio, with a very wide and smooth frequency response between 20 Hz and 20 kHz and a signal-to-noise ratio of 110 decibels. Sing or speak without compromising the quality of your voice or your microphone!

Hold on to power
The internal battery in both the transmitter and the receiver lasts for 5 hours. Both units can be easily charged at the same time using the included dual-USB cable and any standard 5V USB charger-and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used.

Applications
The basic application is to run wirelessly from a microphone to a soundboard-live, at home or in the studio. But there's a lot more you can do with the U35 systems!

Free voice
The U35 system is not only great for singers and rappers. Wireless freedom is liberating for harmonica players, public speakers, DJs, preachers, auctioneers, actors, politicians... anyone who wants to move freely while speaking or performing to an audience!

Bypass the mixer
If you need to address a crowd through powered speaker cabinets, not only do you not need a cable, you don't need a mixer! Just connect your U35 receiver directly to the XLR input of the cabinet.

Control your range
The U35 receiver can be connected to an XLR cable or snake, meaning that the transmitter's signal doesn't have to reach all the way to the soundboard or monitor desk-it can broadcast to the front of the stage, or any central and convenient location.

Get amped
Beyond all the vocal applications, the U35 system can also be used with microphones for guitar amplifiers, as well as direct audio signals from balanced XLR outputs, for example from multi-effect processors or keyboards.

PA Friend
Run wirelessly from a PA mixing console to a powered main speaker, avoiding the hassles and risks of running speaker cables across a crowded venue! You can also run wirelessly between powered mains or between powered monitors.

Free instruments
Use the U35 to roam free with any instrument that requires a microphone or clip-on microphone, such as harmonicas, violins, trumpets, saxophones and accordions!

Freedom on video
The U35 system can be used to connect microphones to DSLR cameras-provided you have an adapter to run between the XLR receiver and the camera's (usually 3.5 mm) audio input.

XVIVE U35 Features

  • 5.8GHz True Diversity wireless system for dynamic microphones
  • Automatic scanning for the best signal out of the available 6 channels
  • 24-bit / 48 kHz digital audio with low distortion and wide frequency response
  • Stable 5.8GHz wireless connection with a range of up to 100' (30.5m)
  • Mic Mode for dynamic microphones and Line Mode for wireless audio from a mixer to a powered speaker

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience crystal-clear sound quality with the XVIVE U35 5.8GHz wireless microphone system.
  • Enjoy freedom of movement with an impressive wireless signal range of up to 100 feet.
  • Benefit from up to 5 hours of reliable battery life, perfect for extended performances.
  • Set up is a breeze, ensuring an easy to use experience for all your audio needs.
  • This durable system is designed for consistent, professional audio in various environments.
  • Achieve seamless compatibility with dynamic and battery-powered XLR-output condenser microphones.

What's in the box:

  • Transmitter
  • Receiver
  • USB-A to Dual USB-C Charging Cable
  • Bag
  • User Manual
  • XVIVE 1 Year Limited Warranty
