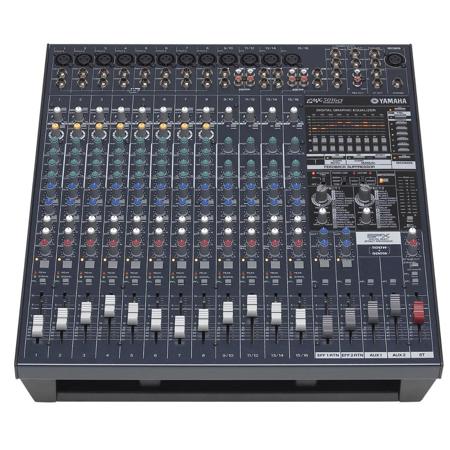

Yamaha EMX5016CF 16 Powered Sound Reinforcement Audio Mixer
See all Yamaha items

Yamaha EMX5016CF 16 Powered Sound Reinforcement Audio Mixer with Dual 500 Watt Power Amplifier

SKU: YMEMX5016CF

This item is no longer available.

Recommended Alternatives

See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Yamaha EMX5016CF Specifications

  • Total harmonic distortion

    Less than 0.3%

  • Frequency response

    0, +0, -3dB 20Hz-20kHz

  • Hum & noise level

    Equivalent input noise: -128dBu
    Residual output noise: -68dBu (Speaker out); -95dBu (Line out)

  • Crosstalk

    -68dB

  • Mixing capability: Mixing capability

    8 Mono + 4 Stereo +2 Return

  • Mixing capability: AUX

    4 (incl. 2x Effect Send)

  • Mixing capability: MAIN

    Stereo

  • Mixing capability: Input channel

    CH1-8: HPF, Compressor, 3-band mid-sweep PEQ Insert I/O; CH9-16: HPF, 3 band PEQ

  • Mixing capability: On-board processors

    2x SPX, 2x Digital 9-band GEQ, Feedback suppressor, Frequency response correction, Maximizer, YSProcessing

  • I/O

    Mic inputs: 12
    Phantom power: +48V DC; ON/OFF
    Line inputs: 4x Stereo
    Control and others: 2x Foot switch, Lamp

  • On-board amplifiers

    Maximum output power at4ohms: 500W/ch
    Maximum output power at8ohms: 370W/ch (100V model), 350W/ch (120V model), 320W/ch (220-240V model)
    Output selection: 500W, 200W, 75W; L/R, AUX1/MONO, AUX1/AUX2

  • Protection circuit: Load protection

    Power switch on/off mute, DC-fault (power supply shutdown/manual reset), Clip limiter (=THD 1%; compression)

  • Protection circuit: Amplifier protection

    Thermal (heatsink temp =90 degrees Celsius; output mute/auto reset), Vl limiter (RL =2ohms)

  • Protection circuit: Power supply

    Thermal (heatsink temp =100 degrees Celsius; power supply shutdown/manual reset)

  • Cooling

    2x Variable-speed fan

  • Power consumption

    500W

  • Dimensions (WxHxD)

    17.48x6.10x19.40" (444x155x493mm)

  • Weight

    24.25 lbs (11kg)

  • UPC Code

    086792856216

About Yamaha EMX5016CF

The Yamaha EMX5016CF is a powered audio mixer with a powerful built in amplifier that is capable of supplying up to 1000 watts in stereo. The EMX5016CF features a total of 16 input channels, with 12 microphone inputs and 8 1/4" phone line inputs. Stereo inputs are featured with 1/4" phone and RCA paired line inputs. A built-in effects engine provides over 16 user selectable effects. The powerful amplifier and full feature set give the EMX5016CF the sound quality and flexibility to perform in small clubs, bars, restaurants, houses-of-worship, halls, etc.

Yamaha EMX5016CF Features

  • 500W + 500W Amplifier: The EMX5016CF features a powerful internal amplifier capable of 1000 watts of stereo power at four ohms
  • Dual Effects Processor Engine: Dual internal effects processor engine features over 16 preset effects
  • Frequency Response Correction System: Yamaha's FRC detection automatically matches the frequency and tonal response of any room
  • Automatic Feedback Suppression: The Automatic Feedback Suppression system compensates for frequencies that are causing feedback

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 500W + 500W Amplifier
  • Dual Effects Processor Engine
  • Frequency Response Correction System
  • Automatic Feedback Suppression

What's in the box:

  • Yamaha EMX5016CF 16 Powered Sound Reinforcement Audio Mixer
  • Owner's Manual
  • AC Power Cord
  • Yamaha Warranty
