Review Summary

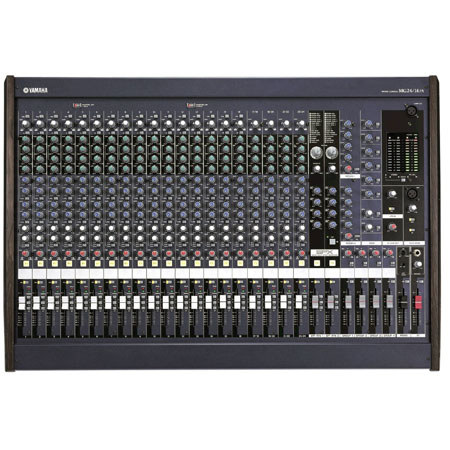

The Yamaha MG2414FX 24-Channel 14-Bus Mixer is a 24 channel 14 bus sound reinforcement mixer with internal effects. The first 16 channels feature mono 1/4" phone line inputs and XLR microphone inputs. Channels 17 - 24 are stereo channels with stereo paired 1/4" phone line level inputs.
Internal SPx digital effects engine routes effects via separate AUx send and return buses. Among the included effects are reverb, delay, phasing, distortion, chorus and more. The main stereo output, 4 stereo group bus outputs, 6 AUx buses and 2 internal effect buses combine for a total of 14 output buses. Every mono channel input features a full EQ section with mid-range frequency sweep and high pass filter. A mono output with sweepable low pass filter is also provided and provides a viable option for feeding signal to subs. Inserts on all mono channels, group outputs and main outputs provide adequate routing to external signal processors or monitor mixers. Quality microphone preamps provide high headroom and low noise floor.
