Kit Savings

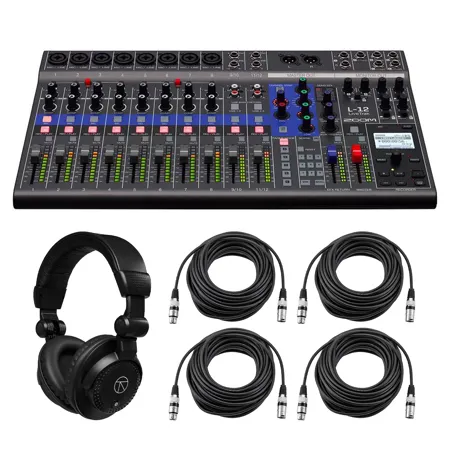

Zoom LiveTrak L-12 12-Channel Digital Mixer & Multitrack Recorder with Closed-Back Studio Monitor Headphones and Value Series XLR M to F Professional Microphone Cable - 50'

SKU: ZOZL12A MFR: ZL12 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Zoom LiveTrak L-12 12-Channel Digital Mixer & Multitrack Recorder
    Zoom LiveTrak L-12 12-Channel Digital Mixer & Multitrack Recorder
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 50'
    H&A Value Series XLR M to F Professional Microphone Cable - 50'

    Qty: 4

  • +
  • Show more

Key Features

  • Capture pristine audio quality with 14-track simultaneous recording for your next project.
  • Enjoy seamless portability with this compact digital mixer, perfect for on-the-go creators.
  • Benefit from extended battery life, ensuring your recording sessions never get cut short.
  • Experience intuitive ease of use with a straightforward interface, ideal for any skill level.
  • Rely on its robust durability, built to withstand the demands of professional field recording.
  • Connect effortlessly with versatile connectivity options for all your audio equipment needs.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-03-24T09:20:26

Rated 5 out of 5

Best mixer in this price bracket!

Amazing piece of equipment! This mixer is able to send in stereo and record individual tracks on a DAW simultaneously! Perfect for what I do with my project Chase Me, November on YouTube! It tracks songs perfectly, and the on-board effects are nice as well! All of the lights and indicators work very well, and there is never any glitchy noises or glitches in general with this board, which is a stark contrast when compared to my experience with the Tascam Model 12! Zoom did an excellent job with this one! Well worth the money!

MATT R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zoom LiveTrak L-12 Specifications

  • Number of input and output channels

    Inputs:
    Mono (Mic/Line): 8
    Stereo (Line): 2

    Outputs:
    Master Out: 1
    Monitor Out: 5

  • Inputs: Mono (Mic/Line)

    Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

    Input gain:
    PAD OFF: +16 - +60dB
    PAD ON: -10 - +34 dB
    Hi-Z ON: +6 - +50dB

    Input impedance:
    XLR: 3kOhms; TRS: 10kOhms/1MOhms (when Hi-Z ON)

    Maximum input level: PAD OFF: 0dBu (at 0dBFS); PAD ON: +26dBu (at 0dBFS)

    Phantom power: +48V

  • Inputs: Stereo (Line)

    Type: TRS phone/RCA pin (unbalanced) jacks
    Maximum input level: +10dBu

  • Outputs: Master Out

    Type: XLR jacks (balanced)
    Maximum output level: +14.5dBu
    Output impedance: 100Ohms

  • Outputs: Monitor Out A (TRS)

    Type: TRS phone jacks (balanced)
    Maximum output level: +14.5dBu
    Output impedance: 100Ohms

  • Outputs: Monitor Out A-E (Phones)

    Type: Standard stereo phone jacks
    Maximum output level: 42mW + 42mW at 60Ohms
    Output impedance: 100Ohms

  • Buses

    Master: 1
    Monitor: 5
    Send EFX: 1

  • Channel Strip

    Comp: Yes, channels 1 to 8
    Low Cut: 75Hz, 12dB/oct

    EQ:
    High: 10kHz, +/-15dB, shelving
    Mid: 100Hz to 8kHz, +/-15 dB, peaking
    Low: 100Hz, +/-15dB, shelving

  • Level Meters

    12-segment

  • Send Effects

    16 types

  • Recorder

    Maximum Simultaneous Recording Tracks:
    14 at 44.1/48kHz
    12 at 96kHz

    Maximum Simultaneous Playback Tracks: 12

    Recording Format: WAV 44.1, 48, 96kHz, 16/24-bit, mono/stereo WAV format

    Recording Media:
    16MB to 2GB SD cards
    4 to 32GB SDHC cards
    64 to 512GB SDXC cards

  • Audio Interface

    44.1/48kHz:
    Recording: 14 channels
    Playback: 4 channels

    Bit depth: 24-bit
    Interface: USB 2.0

  • Card Reader

    Class: Mass storage; USB 2.0 High Speed

  • USB Host

    Class: USB 2.0 High Speed

  • Sampling rate

    44.1/48/96kHz

  • Frequency characteristics

    Frequency characteristics (44.1kHz): -1.0dB: 20Hz - 20kHz
    Frequency characteristics (96kHz): -3.0dB: 20 Hz - 40kHz

  • Equivalent input noise

    Actual measurements: -128dB EIN (IHF-A) with +60 dB/150Ohms input

  • Display

    LCD with backlight (128x64 resolution)

  • Power supply

    AD-19 AC adapter (DC12 V/2 A)

  • Power Consumption

    Maximum: 17W

  • Dimensions (WxDxH)

    445 x 282 x 70.5mm (17.52 x 11.10 x 2.78")

  • Weight

    2.53kg (5.58 lbs)(main unit only)

  • UPC Codes

    192223286801, 192223075504, 192223227576, 884354018054

About Zoom LiveTrak L-12

FEATURED REVIEWS

Best mixer in this price bracket!

By MATT R.

Amazing piece of equipment! This mixer is able to send in stereo and record individual tracks on a DAW simultaneously! Perfect for what I do with my project Chase Me, November on YouTube! It tracks songs perfectly, and the on-board effects are nice as well! All of the lights and indicators work very well, and there is never any glitchy noises or glitches in general with this board, which is a stark contrast when compared to my experience with the Tascam Model 12! Zoom did an excellent job wit...

View full Review

Take your live performances to the next level with the LiveTrak L-12 12-Channel Digital Mixer & Multitrack Recorder. This all-in-one digital console is designed to streamline your setup, allowing you to mix, record, and monitor with a single piece of equipment.

The LiveTrak L-12 stands out with its ability to record up to 12 discrete channels while simultaneously providing five individual custom headphone mixes. It features 12 discrete channels, including eight mono and two stereo, with versatile XLR or 1/4" connectivity.

This digital mixer and recorder offers 14-track simultaneous recording and 12-track playback, making it an ideal choice for live performances. It also includes a 14-in/4-out USB audio interface connectivity, allowing you to easily connect it to your computer or other devices.

The LiveTrak L-12 is equipped with five powered headphone outputs, each with a customizable and savable mix. This feature allows each performer to create a mix that suits their individual preferences. The device also includes RCA and TRS line inputs, 48V phantom power for channels 1-4 and 5-8, and Hi-Z connectivity for channels 1 and 2.

For enhanced control, the LiveTrak L-12 features a 26dB pad for channels 3-8, built-in compression control for channels 1-8, and digital level meters ranging from -48dB to -0dB. It also includes a master mute button, low-cut control, stereo panning, and master and monitor outputs A-E.

The LiveTrak L-12 is designed for convenience, with a scene-saving function that allows you to save up to nine scenes at a time. It also includes 16 built-in delay and reverb effects with adjustable parameters, a built-in slate mic, and a class-compliant mode for iOS compatibility.

The device also includes an SD card input, built-in metronome, automatic recording starting/stopping capability, project protection, and import/export projects with USB 2.0 host port. It also features latency adjustment for A-to-D conversion and compatible functions for the ZOOM FS01 footswitch.

With its intuitive controls, high-definition sample rates, and versatile operation modes, the LiveTrak L-12 12-Channel Digital Mixer & Multitrack Recorder is a powerful tool for any live performer or recording artist.

Zoom LiveTrak L-12 Features

  • All-in-one digital console for live performances, with 12 discrete channels for recording & mixing
  • 14-track simultaneous recording and 12-track playback with 14-in/4-out USB audio interface connectivity
  • Five powered headphone outputs with customizable and savable mixes for individual preferences
  • Built-in features for enhanced control, including 26dB pad, compression control, digital level meters, and master mute button
  • Convenient scene-saving function, with capacity to save up to nine scenes at a time
  • High-definition sample rates and versatile operation modes, offering a comprehensive solution for live performers and recording artists

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture pristine audio quality with 14-track simultaneous recording for your next project.
  • Enjoy seamless portability with this compact digital mixer, perfect for on-the-go creators.
  • Benefit from extended battery life, ensuring your recording sessions never get cut short.
  • Experience intuitive ease of use with a straightforward interface, ideal for any skill level.
  • Rely on its robust durability, built to withstand the demands of professional field recording.
  • Connect effortlessly with versatile connectivity options for all your audio equipment needs.

What's in the box:

  • Zoom LiveTrak L-12 12-Channel Digital Mixer & Multitrack Recorder
  • AD-19 AC Adapter
  • USB 2.0 Cable
  • Quick Guide
  • Zoom 1 Year Limited Warranty
