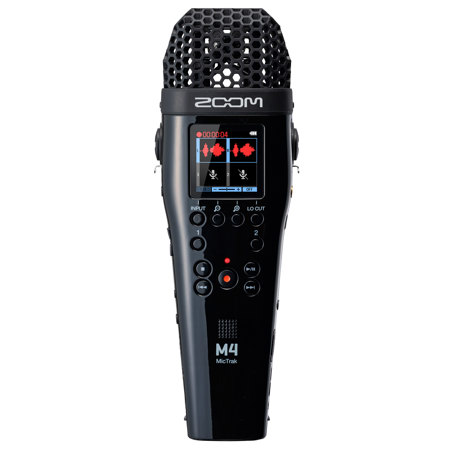

Zoom M4 MicTrak Portable Recorder

SKU: ZOZM4 MFR: ZM4
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this portable recorder, perfect for field recording.
  • Achieve superior sound quality using the M4 MicTrak's advanced 32-bit float recording.
  • Utilize the timecode I/O for seamless audio sync in video production workflows.
  • Enjoy extended recording sessions with up to 18 hours of battery life on AA batteries.
  • Easily connect external mics via XLR/TRS inputs for versatile recording options.
  • Monitor audio clearly using the headphone jack and built-in speaker for review.
See More Product Details
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ABRAHAM M : 32-bit float recording, xlr inputs

Reviews about this item

Review Summary

2023-11-23T09:09:24

Rated 5 out of 5

Great sound and timecode is wonderful

Like all Zoomcorp 32 bit recorders I've used, this one has great sound. I replaced my M3s with these mics because they support timecode. I can use them as 2 track recorders in addition to using the mic. So I can set an audix stage mic plugged into the M4 and point the mic at the audience and get audience sounds to mix in. Or really any other sounds. Bonus tracks! The most common use for me has been to mic up a piano for post production mixing for a radio show. You really need one of these mic stand connectors to be happy with this device: Gator Cases Camera Mount Microphone Stand Adapter with Ball-and-Socket Head

Steven H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Zoom MicTrak Specifications

Inputs
  • Channels

    2 (Built In XY Mic) + 2 (XLR/TRS Inputs)

  • Mic Input

    Mic Type: Unidirectional
    Sensitivity: -42 dB, 1 kHz at 1 Pa
    Input Gain: Adjustment unnecessary (dual AD converter circuits used)
    Max Sound Pressure Input: 135 dB SPL

  • Ext Mic Input

    Connectors: 1/8" stereo mini jack
    Input Gain: Adjustment unnecessary (dual AD converter circuits used)
    Input Impedance: 2 k Ohm or more

  • XLR/TRS Inputs

    Connectors: XLR(2: HOT)/TRS combo jacks
    Input Gain: Adjustment unnecessary (dual AD converter circuits used

    Input Impedance:
    Mic: 3 k Ohm or more
    Line: 3 k Ohm or more

    Maximum Input Level:
    Mic: +4 dBu
    Line: +24 dBu

    Phantom Power:
    +24/+48V
    10mA maximum for each channel

    Equivalent Input Noise: -127 dBu or less (IHF-A)

Outputs

Jump to...
  • Line Out

    Connector: 1/8" stereo mini jack
    Maximum Output Level: +1 dBu

  • Headphone

    Connector: 1/8" stereo mini jack
    Maximum Output Level: 20 mW +20 mW (32 Ohm load)

  • Built-In Speaker

    500mW/8 Ohm mono speaker

Recording

Jump to...
  • Recording Media

    4GB-32GB microSDHC cards
    64GB-1TB microSDXC cards

  • WAV

    Supported Formats:
    44.1/47.952/48/48.048/96/192kHz
    32-bit float
    Mono/stereo
    BWF and iXML

    Maximum Simultaneous Recording Tracks: 4 (2 Built In XY Mic + 2 XLR/TRS Inputs)

Time Code

Jump to...
  • Connector

    1/8" stereo mini jack (Tip: IN, Ring: OUT)

  • Modes

    Off
    Int Free Run, Int Record Run, Int RTC Run
    Ext

  • Frame Rates

    23.976ND
    24ND
    25ND
    29.97ND
    29.97D
    30ND
    30D

  • Precision

    +/-0.2 ppm

  • Supported Input Levels

    0.2 - 5.0 Vpp

  • Input Impedance

    4.6 k Ohm

  • Output Level

    3.3 Vpp

  • Output Impedance

    50 Ohm or less

Power Supply

Jump to...
  • Batteries

    4x AA

  • AC Adapter

    Zoom AD-17 (DC 5 V/1 A)
    USB bus power is supported

Display

Jump to...
  • LCD

    1.54" (3.91cm) full color (240 x 240)

  • Input

    RC2/RC4/RCH-5/RCH-6

  • Connector

    USB Type-C

  • Mass Storage

    Class: USB 2.0 High Speed

  • Audio Interface Rec

    Class: USB 2.0 High Speed
    Sampling Rate: 48kHz
    Bit Rate: 24-bit/32-bit float
    Channels: 4 in/2 out

Estimated Continuous Operation Time

Jump to...
  • 48 kHz/32-bit float

    Alkaline batteries: about 18 hours (2ch recording to microSDHC card)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

  • UPC Code

    884354027711

About Zoom MicTrak

FEATURED REVIEWS

Great sound and timecode is wonderful

By Steven H.

Like all Zoomcorp 32 bit recorders I've used, this one has great sound. I replaced my M3s with these mics because they support timecode. I can use them as 2 track recorders in addition to using the mic. So I can set an audix stage mic plugged into the M4 and point the mic at the audience and get audience sounds to mix in. Or really any other sounds. Bonus tracks! The most common use for me has been to mic up a piano for post production mixing for a radio show. You really need one of th...

View full Review

If you're in search of a cutting-edge audio recording solution that marries portability with professional-grade features, the M4 MicTrak Portable Recorder stands out as an exceptional choice. As the pioneering portable recorder to offer both 32-bit recording capabilities and an integrated timecode generator, the M4 MicTrak ensures seamless synchronization with video content, making it an indispensable tool for filmmakers and content creators.

This compact yet robust device delivers four tracks of crystal-clear, clip-free audio, thanks to its XY stereo microphone capsule and dual XLR inputs, which cater to a variety of recording scenarios. Whether you're capturing live performances, on-set dialogue, or ambient soundscapes, the M4 MicTrak's high-quality audio fidelity ensures that every nuance is recorded with precision.

The versatility of the M4 MicTrak is further enhanced by its ability to function as a two-track recorder while utilizing its built-in microphone. This feature allows for the addition of external sound sources, such as an audience or environmental noises, to enrich your audio mix. For instance, when miking a piano for post-production mixing, the M4 MicTrak excels in delivering a rich, balanced sound profile that elevates any radio show or audio project.

Crafted with the needs of professionals in mind, the M4 MicTrak is not only portable and durable but also offers the convenience of a multi-track audio interface. This advanced recording and mixing capability sets it apart from alternative products, providing users with a comprehensive audio solution in one sleek package.

Moreover, the inclusion of a built-in microphone eliminates the need for additional equipment, streamlining your setup and ensuring you're always ready to capture high-quality audio on the go. For those seeking to enhance their recording experience, the M4 MicTrak is compatible with accessories like the Gator Cases Camera Mount Microphone Stand Adapter, offering even greater flexibility and ease of use.

In summary, the M4 MicTrak Portable Recorder is a top-tier choice for professionals who require a portable, high-quality, and versatile audio recording device. Its unparalleled 32-bit recording quality, timecode functionality, and multi-track versatility make it a standout product in the field of portable audio recorders.

Zoom MicTrak Features

  • 2 (Built In XY Mic) + 2 (XLR/TRS Inputs) Channels
  • Adjustment unnecessary (dual AD converter circuits used) Input Gain
  • 135 dB SPL Max Sound Pressure Input
  • Zoom AD-17 (DC 5 V/1 A) AC Adapter

Product Documents

User Manual

Key Features

  • Capture pristine audio with this portable recorder, perfect for field recording.
  • Achieve superior sound quality using the M4 MicTrak's advanced 32-bit float recording.
  • Utilize the timecode I/O for seamless audio sync in video production workflows.
  • Enjoy extended recording sessions with up to 18 hours of battery life on AA batteries.
  • Easily connect external mics via XLR/TRS inputs for versatile recording options.
  • Monitor audio clearly using the headphone jack and built-in speaker for review.

What's in the box:

  • Zoom M4 MicTrak Portable Recorder
  • Windscreen
  • Quick Start Guide
  • (Battery Not Included)
  • Zoom 1 Year Limited Warranty
