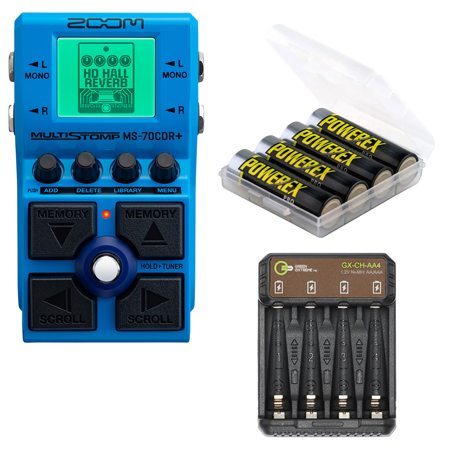

Zoom MS-70CDR+ MultiStomp Chorus/Delay/Reverb Pedal with Powerex PRO AA 1.2V 2700mAh Rechargeable NiMH Batteries, 4-Pack and GX-CH-AA4 4-Bay Charger for AA/AAA NiMH Batteries with USB-C Input

SKU: ZOZMS7CDRLUA MFR: ZMS70CDRPLUS A
$139.89
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Zoom MS-70CDR+ MultiStomp Chorus/Delay/Reverb Pedal
    Zoom MS-70CDR+ MultiStomp Chorus/Delay/Reverb Pedal
  • +
  • Maha Powerex PRO AA 1.2V 2700mAh Rechargeable NiMH Batteries, 4-Pack
    Maha Powerex PRO AA 1.2V 2700mAh Rechargeable NiMH Batteries, 4-Pack
  • +
  • Green Extreme GX-CH-AA4 4-Bay Charger for AA/AAA NiMH Batteries with USB-C Input
    Green Extreme GX-CH-AA4 4-Bay Charger for AA/AAA NiMH Batteries with USB-C Input
  • +
  • Show more

Key Features

  • Unleash your creativity with 100 user patch memories for endless sound possibilities.
  • Experience pristine sound quality with 24-bit A/D and D/A conversion for professional audio.
  • Craft intricate soundscapes using up to 6 simultaneous effects, perfect for any genre.
  • Enjoy extended play with efficient power options, including 7 hours on alkaline batteries.
  • Seamlessly integrate into your setup with versatile standard mono phone jack inputs and outputs.
  • Effortlessly manage your tones with the clear 160 x 128 dot-matrix LCD display.
See More Product Details
Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Zoom MS-70CDR+ Specifications

  • Maximum number of simultaneous effects

    6 effects

  • User patch memories

    100

  • Sampling frequency

    44.1 kHz

  • A/D conversion

    24-bit 128 x oversampling

  • D/A conversion

    24-bit 128 x oversampling

  • Signal processing

    32-bit

  • Frequency response

    20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10k Ohm load)

  • Display

    160 x128 dot-matrix LCD

  • Inputs

    Standard mono phone jacks (L/R)
    Rated input level: -20 dBu
    Input impedance (line): 470 k Ohm

  • Outputs

    Standard mono phone jacks (L/R)
    Maximum output level: +7.2 dBu (when output impedance 10 k Ohm or higher)

  • Input S/N

    122 dB

  • Noise floor (residual noise)

    -100 dBu (L/R)

  • Power

    AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
    2x AA batteries (alkaline, lithium or rechargeable NiMH batteries)

  • Operation times using batteries

    Alkaline batteries: about 7 hours (about 5 hours using stereo input)
    NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input)
    Lithium batteries: about 14 hours (about 10 hours using stereo input)

  • USB

    Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed
    Use a USB cable that supports data transfer. USB bus power is supported

  • Battery Info

    Optional, not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (D x W x H)

    5.23 x 3.11 x 2.4" (133 x 79 x 61mm)

  • Weight

    Excluding batteries: 12.9 oz (368g)
    Including batteries: 14.63 oz (415g)

  • UPC Codes

    192223288577, 802366144431, 192223251823, 4515260029358

Designed For Use With:

  • Guitar Pedal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Zoom MS-70CDR+

When it comes to crafting a rich, immersive sound, the Zoom MS-70CDR+ MultiStomp Chorus/Delay/Reverb Pedal is a musician's dream. This compact, yet powerful stompbox delivers an impressive 149 spatial effects, transforming your music with everything from lush choruses and crystal-clear delays to atmospheric reverbs.

The MS-70CDR+ is a veritable modulation station, offering 43 distinct chorus and modulation effects. These include phasing, flanging, tremolo, vibrato, detuning, and pitch shifting, all designed to add depth and motion to your sound.

The pedal also features 29 mono and stereo delays, with delay times of up to 4 seconds. These range from reverse and multi-tap to pitch-shifted and self-oscillating delays, providing a myriad of options to enhance your music.

The MS-70CDR+ doesn't stop there. It also offers 33 sophisticated studio-quality reverb effects, from spring and plate reverbs to giant hall and arena reverbs. Additionally, 44 dynamics and filters such as EQ's, compression, noise reduction, and special effects are included to round out your sound.

This pedal is designed for deep customization, with expansive parameters for each effect. Use a single effect or combine up to 6 simultaneously to create unique tones. Save your creations in one of the 100 patch slots, or use the 80 preset patches as a starting point for your own soundscapes.

The MS-70CDR+ features next-generation circuitry with newly designed analog circuits for improved sound quality. The flat phase response ensures sharp attacks and clean low end.

For musicians looking to add lush layers to their synths or keyboards, the MS-70CDR+ is an ideal choice. Its stereo input jacks accept signals from passive and active guitars, as well as line-level devices such as synthesizers. Dual line-level output jacks enable you to record and perform with the pedal's 58 stereo effects.

The MS-70CDR+ also offers enhanced navigation with Cross Key switches for instant switching between effects and patches. Four encoder knobs allow for easy adjustment of parameters for each effect. The color-coded LCD screen changes backlight color for easy distinction between effect categories.

Built to last, the MS-70CDR+ is constructed around a metal frame designed to withstand the rigors of live performances. It runs on 2 AA batteries, USB power, or AC power, and features an onboard chromatic tuner with visual feedback for quick and accurate tuning.

The Handy Guitar Lab for MS-70CDR+ app for iOS offers a growing library of patches and effects, allowing guitarists to continually expand their sound. With USB MIDI, you can connect the MS-70CDR+ to other MIDI gear to remotely trigger patch changes.

In summary, the Zoom MS-70CDR+ MultiStomp Chorus/Delay/Reverb Pedal is a versatile and powerful tool for musicians seeking to elevate their sound and create unforgettable musical experiences.

Zoom MS-70CDR+ Features

  • MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs
  • Chorus - 43 different chorus and modulation effects that add depth and motion to your sound
  • Delays - Featuring 29 mono and stereo delays, with delay times of up to 4 seconds
  • Reverbs - 33 sophisticated studio-quality effects. From spring and plate reverbs to giant hall and arena reverbs
  • Dynamics / Filters - Round out your sound with 44 dynamics and filters such as EQ's, compression, noise reduction, and special effects
  • MS-70CDR+ offers expansive parameters for each effect, allowing you to dive deep into tweaking your tone

Warranty Information

This product has a limited warranty of 12 months.

Compatibility

Designed for use with: Guitar Pedal

Key Features

  • Unleash your creativity with 100 user patch memories for endless sound possibilities.
  • Experience pristine sound quality with 24-bit A/D and D/A conversion for professional audio.
  • Craft intricate soundscapes using up to 6 simultaneous effects, perfect for any genre.
  • Enjoy extended play with efficient power options, including 7 hours on alkaline batteries.
  • Seamlessly integrate into your setup with versatile standard mono phone jack inputs and outputs.
  • Effortlessly manage your tones with the clear 160 x 128 dot-matrix LCD display.

What's in the box:

  • Zoom MS-70CDR+ MultiStomp Chorus/Delay/Reverb Pedal
  • Zoom 1 Year Limited Warranty
