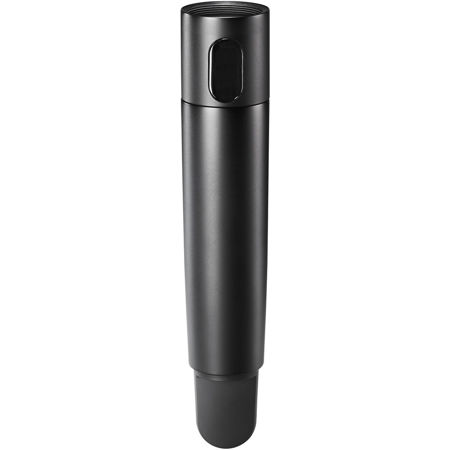

Audio-Technica ATW-T5202 3rd Gen Handheld Microphone/Body Transmitter, No Capsule, EF2: 580 to 608 MHz & 653 to 663 MHz

SKU: ATAWT5202EF2 MFR: ATW-T5202EF2
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this professional wireless microphone transmitter.
  • Enjoy extended battery life for long performances using the Audio-Technica transmitter.
  • Achieve low latency and reliable signal transmission with the digital wireless system.
  • Easily switch frequencies on the handheld microphone for interference-free operation.
  • Customize your sound with interchangeable microphone capsules on this versatile unit.
  • Use this durable wireless transmitter for crystal-clear audio in any live performance.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-T5202 Specifications

  • Operating Frequencies

    Band EF2: 580.000 to 607.875 MHz, 657.100 to 662.900 MHz (1116+223 frequencies)

  • Minimum Frequency Step

    25 kHz

  • Modulation Mode

    FM

  • Maximum Deviation

    ATW-T5202: +/-40 kHz (THD:10%)

  • Dynamic Range

    ATW-T5202: > 116 dB (A-weighted), typical

  • Total Harmonic Distortion

    <1.0% (at 1 kHz, +/-17.5 kHz deviation)

  • Operating Range

    328' (100m)
    (Open range environment with no interfering signals)

  • Frequency Response

    ATW-T5202: 33 Hz to 16,300 Hz
    (Frequency response depends on attached microphone element)

  • RF Power Output

    High: 50 mW, Mid: 10 mW, Low: 2mW (switchable), at 50 ohms (country dependent)

  • Spurious Emissions

    Following Federal and National Regulations

  • Microphone Capsule

    Interchangable industry standard thread

  • Batteries

    Two 1.5V AA, not included

  • Battery Life

    High: 6.5 hours
    Mid: 8 hours
    Low: 9.5 hours (alkaline)
    (Depending on battery type, usage and environmental conditions)

  • Operating Temperature Range

    23 Degree F to 104 Degree F (-5 Degree C to +40 Degree C)

  • Dimensions (Long x Diameter)

    7.60 x 1.46" (193 x 37mm) (without capsule)

  • Weight

    7.1 oz (200g) (without capsule)

  • UPC Code

    4961310144562

About Audio-Technica ATW-T5202

While specifically engineered for professional tours, stadiums, concert halls, festivals, and houses of worship, the Audio-Technica 5000 Series ATW-T5202 Third Generation Handheld Microphone/Body Transmitter delivers unparalleled audio quality and performance that has garnered critical acclaim from artists, broadcasters, and presenters across the globe.

This product line includes two robust transmitters: the ATW-T5201 body-pack transmitter and the ATW-T5202 handheld transmitter. Both are housed in rugged, ergonomic metal bodies designed for durability and ease of use. They feature highly visible OLED screens, which can be switched between standard and performance views to highlight key metering, enhancing user experience.

The transmitters also boast programmable features, soft-touch controls, and switchable RF power (2 mW/10 mW/50 mW), offering versatility and adaptability to various audio environments. They are available in two distinct frequency ranges, DE1 (470-590 MHz) and EF2 (580-608 MHz, 657-663 MHz), ensuring comprehensive coverage of the receiver's bandwidth.

The compact ATW-T5201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector, ensuring a secure connection to A-T's cH-style lavalier and headworn microphones or cables. The ATW-T5202, on the other hand, includes a high-pass filter and an industry-standard thread mount, allowing for the use of six interchangeable A-T microphone capsules, as well as other compatible capsules.

The 5000 Series components and compatible accessories are offered as individual, la carte products, providing you with maximum flexibility in constructing a system that perfectly fits your audio needs. This makes the Audio-Technica 5000 Series ATW-T5202 Third Generation Handheld Microphone/Body Transmitter an ideal choice for those seeking superior sound quality and customizable audio solutions.

Audio-Technica ATW-T5202 Features

  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
  • Both transmitters are available in two bands - DE1 (470-590 MHz) and EF2 (580-608 MHz, 657-663 MHz) - and offer rugged, ergonomic metal bodies, highly visible OLED displays, programmable features, soft-touch controls, and switchable 2/10/50 mW RF power
  • Handheld transmitter features high-pass filter and accepts six interchangeable microphone capsules (based on best-selling Audio-Technica models) that use industry-standard thread mount and provide low-handling noise
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Advanced digital Tone Lock squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
  • Wireless network monitoring and control software
  • 5000 Series components are offered individually - not as preconfigured systems - for greater flexibility

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this professional wireless microphone transmitter.
  • Enjoy extended battery life for long performances using the Audio-Technica transmitter.
  • Achieve low latency and reliable signal transmission with the digital wireless system.
  • Easily switch frequencies on the handheld microphone for interference-free operation.
  • Customize your sound with interchangeable microphone capsules on this versatile unit.
  • Use this durable wireless transmitter for crystal-clear audio in any live performance.

What's in the box:

  • 5000 Series ATW-T5202 Third Generation Handheld Microphone/Body Transmitter
  • AT8456a Quiet-Flex Stand Clamp (5/8 "-27 Male to 3/8 "-16 Female Threaded Screw Adapter)
  • AT-BG3 Protective Carrying Case
  • (2x 1.5V AA Not Included)
  • Audio-Technica 2 Year Limited Warranty
