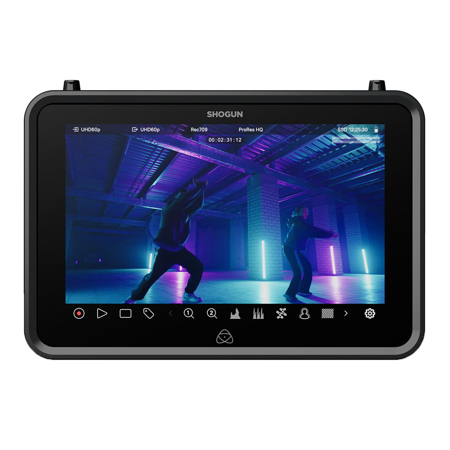

Atomos Shogun 7" HDR Monitor-Recorder, Supports 6K RAW
SKU: ATOMSHG002
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A
About Atomos Shogun HDR
FEATURED REVIEWS
Awesome X2
Awesome monitor. Awesome recorder. Best screen I've seen, especially when shoot HDR.
3000 nits now and a lot crammed in
The firmware update shown at IBC boosts the screen output to 3000 nits, making this thing capable of legit HDR and daylight use. The killer feature here is the ability to record raw (real, ProRes Raw) from Sony and other cameras for way less than their proprietary recorders. And then the S1H and Z6 and Z7. Recording on standard SSDs is another win, but why the caddies? Yes, they're free, but come on Atomos: NEVER NEVER put drives in caddies. These are solid-state devices with no moving part...
View full Review
Up to eleven
The original Shogun gave filmmakers what they had been asking for. All the Ninja’s talents, with a bigger, 7-inch super-bright screen and both HDMI and SDI I/O. Today’s Shogun is bolstered by new abilities from AtomOS 11, massive connectivity from integrated networking, more codecs, and compatibility with almost every camera. Shogun is the Atomos dream writ large.
Bigger. Brighter. Better
Super bright screen
Shogun’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.

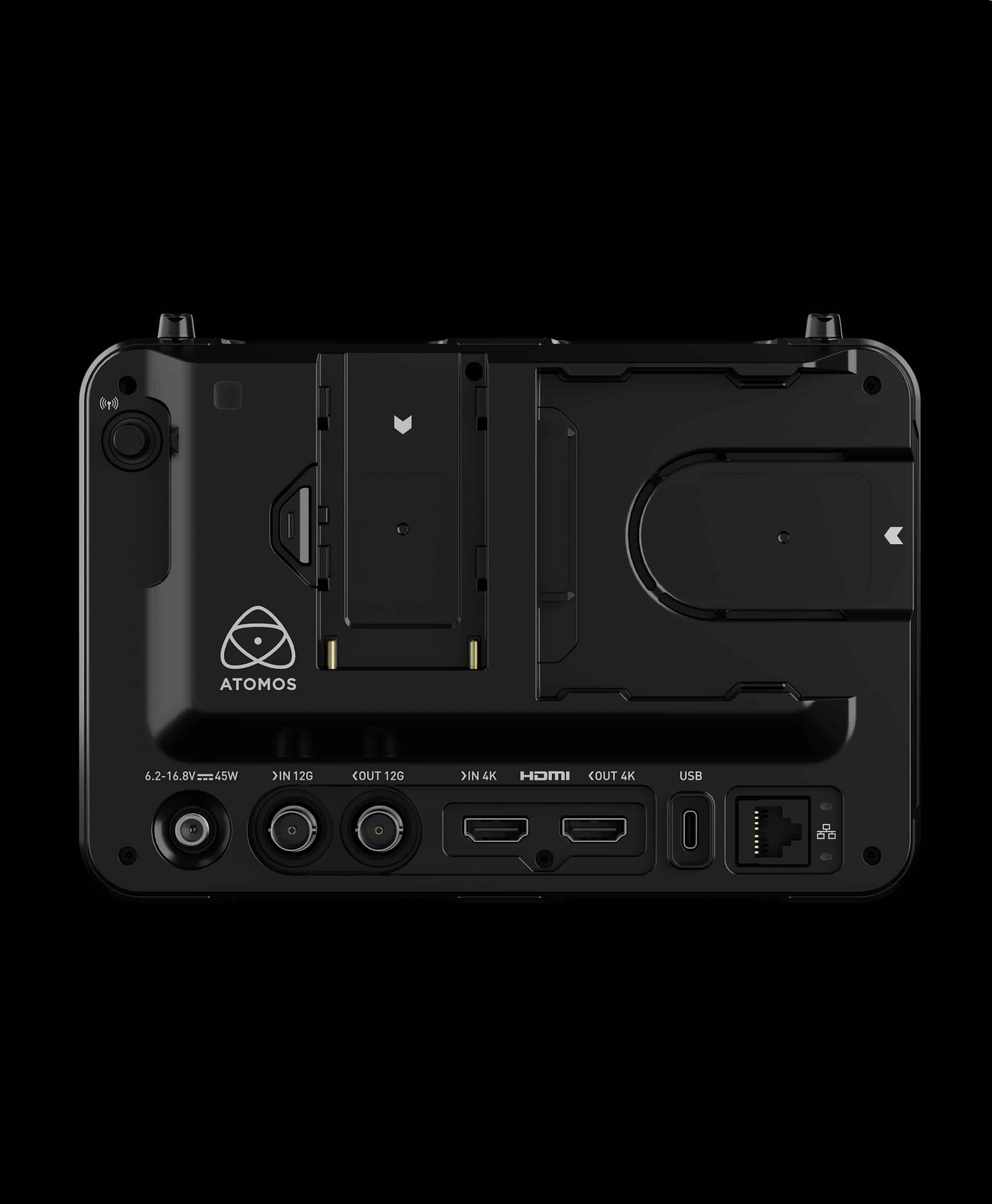

All the connectivity you’ll ever need
- Solid Internet - Network connectivity with Wi-Fi 6 and GigE.
- Wireless Sync - Long-range robust wireless sync and control with AirGlu RF.
- Third-party Sync - Third-party sync and app control with Bluetooth AirGlu BT.
- USB-C Port - For future updates.
- More Power Options - Multiple power options with NP battery slot and separate 2.1mm locking jack DC input.
- SDI Out - Separate SDI Out for comprehensive SDI<>HDMI cross-conversion.
Enhance your camera
The new Shogun has an ultra-bright, 7-inch HDR screen that’s easily visible outdoors. Capture RAW video from a vast range of DSLR, mirrorless and cinematic cameras with either SDI or HDMI connections. It’s packed with on-screen tools for focus, exposure, customer LUTs and metadata. Shogun takes care of your workflow while you focus on creative ideas.
Ready to RAW
Shogun can capture RAW inputs up to 6K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats.
Feature-packed, even more versatile
You can pair the new Shogun with a huge range of video, DSLR, mirrorless or cinematic cameras. Choose from a selection of industry-standard recording formats, including Apple ProRes. Pick the best frame size, frame rate, and codec for your project and delivery requirements. Shogun also allows you to record HDMI RAW inputs up to 6K at 30fps while simultaneously looping out standard YCC video via HDMI to non-RAW compatible devices.

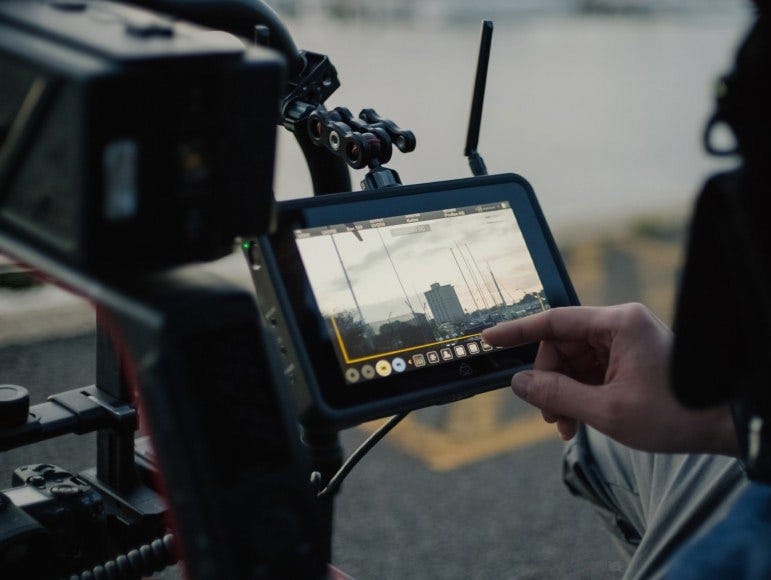

Any camera, any format. Anywhere
Pair the Shogun equally well with smaller cameras as part of a minimal setup, or with full-size camera rigs on large-scale productions. Shogun is made from precision materials and crafted for maximum durability with a solid aluminium frame. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Shogun includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.

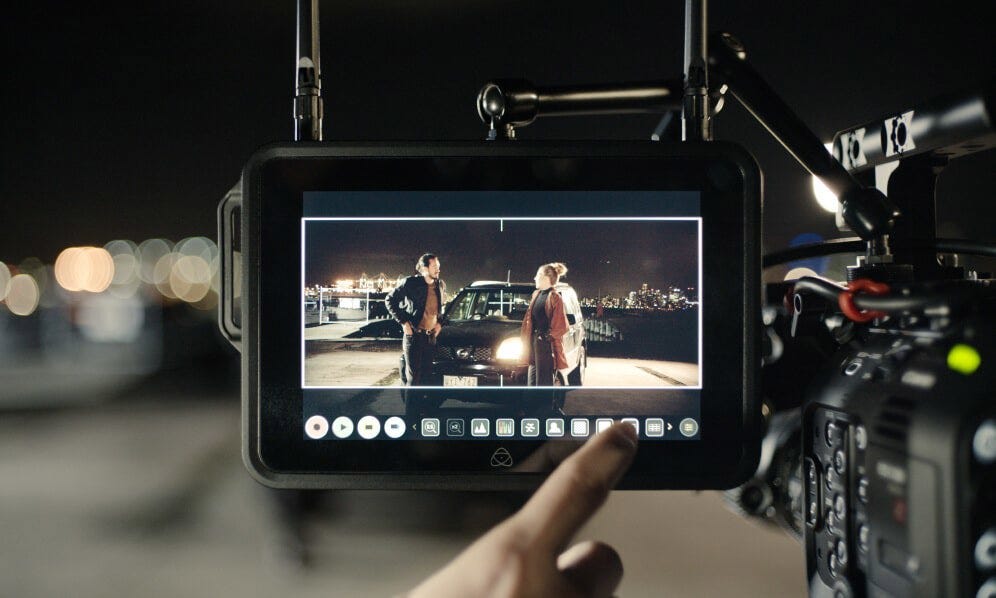

On set. In post. Get creative
Stage clever cinematic shots and save time in post-production with the powerful Onion Skin and Frame Grab features built-in as standard. Onion skin overlay simplifies stop-motion and jump or match cuts. Capturing frame grabs live on set saves time making thumbnails and acts as a quick reference to share with the team.
A highly secure mount
From individuals to large-scale cinema productions, Shogun has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun to remain in place at all times.
Features
- 7" 2000nit monitor-recorder
- 12G SDI INand OUT and HDMI IN and OUT
- Bi-directional HDMI<=>SDI input conversion with simultaneous SDI & HDMI outputs
- Capture in ProRes RAW up to 6K30p
- Flexible codec choice - ProRes RAW, ProRes, DNxHD & H.265 (HEVC) - all for free
- New AtomOS 11 improves memory management, boosts responsiveness, and unleashes new features

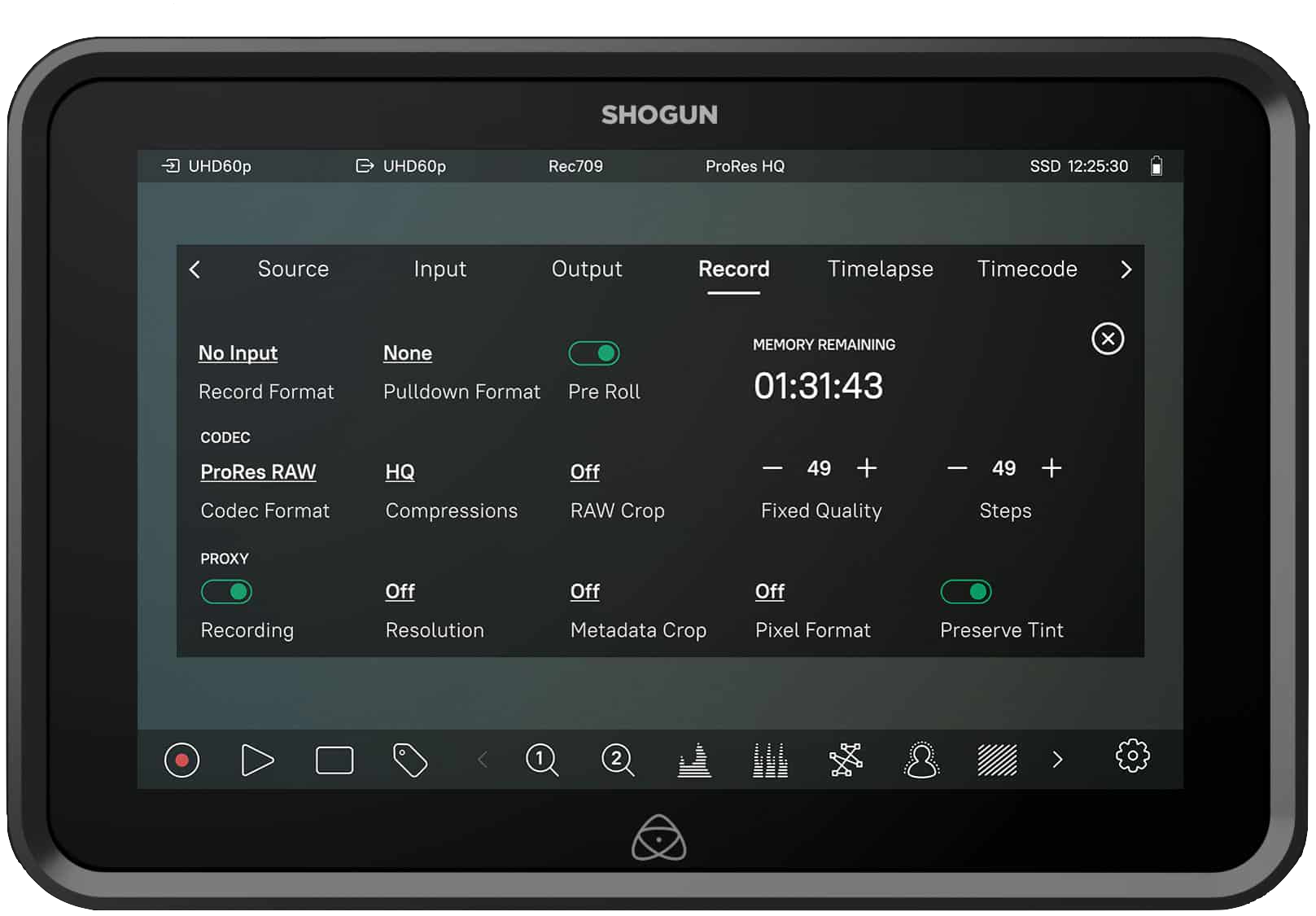

- New monitoring tools to arrange in advance recording and playback with Record Assist and Playback Assist
- Additional advanced industry leading suite of monitoring tools with one-touch operation like SegmentPro, EL Zone System, ARRI False color added in combination with other monitoring tools like Vector scopes, Zebra, Atomos False Color, Onion Skin, etc
- Publish directly from the cloud with 4K H.265 Camera to Cloud mode
- Faster and stronger connectivity with Wi-Fi 6
- Share what's on your Atomos screen with other AtomOS11 users, as well as, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with Atomos Remote View
- Long range ATOMOS AirGlu sync technology for wireless timecode via RF and Bluetooth LE
- 1GbE Ethernet for high-speed robust hardwired network connection
- Connectivity to Atomos Cloud Studio gateway of services
Join VIP PRO
2 Day Delivery on thousands of items!
Request a Callback
Chat one-on-one with an expert
Sell or Trade your Gear
Get started in 3 easy steps
Key Features
- 7" 2000nit monitor-recorder
- 12G SDI INand OUT and HDMI IN and OUT
- Bi-directional HDMI<=>SDI input conversion with simultaneous SDI & HDMI outputs
- Capture in ProRes RAW up to 6K30p
- Flexible codec choice - ProRes RAW, ProRes, DNxHD & H.265 (HEVC) - all for free
- New AtomOS 11 improves memory management, boosts responsiveness, and unleashes new features
What's in the box:
- Atomos Shogun 7" HDR Monitor-Recorder
- USB-C PD to 2.1mm DC Power Lead
- Master Caddy III
- 2x Wi-Fi Antennas
- AirGlu Antenna
- Antenna Tips
- 3.5mm Audio Sync Cable
- User Manual
- Atomos 1 Year Limited Warranty
