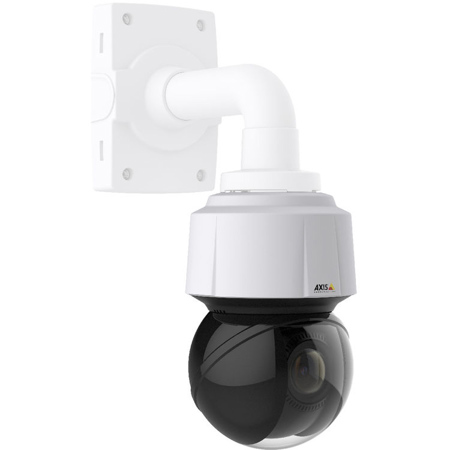

Axis Communications Q6128-E 4K Outdoor Day/Night PTZ Network Camera with 3.9-46.8mm Varifocal Lens, 12x Optical Zoom, 3840x2160, 30fps, H.264, PoE

SKU: AX0799004

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Axis Communications Q6128-E Specifications

  • Image Sensor

    1/2.3" CMOS, Progressive scan

  • Lens Type

    3.9 - 46.8mm varifocal lens, autofocus and auto-iris

  • Aperture

    f/1.8 - 2.0

  • Angle of View

    Horizontal: 70.7 deg. - 6.2 deg.
    Vertical: 43.5 deg. - 3.5 deg.

  • Day & Night

    Automatically removable infrared-cut filter

  • Minimum Illumination

    Color: 0.45 lux at 30 IRE f/1.8
    B&W: 0.03 lux at 30 IRE f/1.8

  • Shutter Time

    1/10,000 to 1 sec

  • Pan/Tilt/Zoom

    Pan: 360 deg. endless, 0.05 deg. - 700 deg. per second
    Tilt: 20 deg. to -90 deg. , 0.05 - 500 deg. per second
    Zoom: 12x Optical, 12x Digital, 144x Zoom total

  • Pan/Tilt/Zoom Functionalities

    Nadir flip, 256 preset positions, tour recording, guard tour, control queue, on-screen directional indicator, set new pan 0 deg. , adjustable zoom speed, speed dry

  • Video Compression

    H.264 (MPEG-4 Part 10/AVC) baseline, main and high profiles½
    Motion JPEG

  • Resolutions

    3840 x 2160 to 640 x 360

  • Frame Rate

    Up to 50/60 fps (50/60 Hz) at 1080p
    ½Up to 25/30 fps (50/60 Hz) at 4K

  • Video Streaming

    Multiple, individually configurable streams in H.264 and MJPEG
    Controllable frame rate and bandwidth
    VBR/MBR H.264

  • Image Settings

    Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Rotation, Backlight compensation, Fine tuning of behavior at low light, Electronic image stabilization, Defogging, Manual shutter time, Text and Image overlay, Image freeze on PTZ, Highlight compensation

  • Privacy Masking

    Up to 24 individual 3D privacy masks

  • Security

    Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management

  • Supported Protocols

    IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP

  • Application Programming Interface

    Open API for software integration, including VAPIX; and Axis camera application platform
    Support for AXIS Video Hosting System (AVHS) with one-click camera connection, ONVIF Profile S compliant

  • Intelligent Video

    Video motion detection, active Gatekeeper support for AXIS camera application platform enabling installation of third-party applications

  • Alarm Triggers

    Detectors: Live stream accessed, Motion detection, Shock detection
    Hardware: Network, temperature
    Input Signal: Manual trigger, Virtual inputs
    PTZ: Autotracking, Error, Moving, Preset reached, Ready
    Storage: Disruption, Recording
    System: System ready
    Time: Recurrence, use schedule

  • Event Action

    Overlay text, Record video, File upload via FTP, SFTP, HTTP, HTTPS and Email
    Notification via Email HTTP, HTTPS and TCP
    PTZ preset, Guard tour, Video recording to edge storage, Autotracking, Day/Night mode, Pre- and Post-Alarm video buffering

  • Data Streaming

    Event data

  • Installation Aid In Software

    Pixel counter

  • Casing

    IK08, IP66- and NEMA 4X-rated
    Metal casing (aluminum), Polycarbonate (PC) clear dome with Sharpdome technology, PVC free

  • Sustainability

    PVC free

  • Processors and Memory

    1GB RAM, 256MB Flash

  • Power

    Axis High PoE Midspan 1-Port: 100 to 240 VAC, 74 W max½
    Consumption: 14 W typical, 51 W max½
    Axis PoE+ Midspan 1-Port: 100 to 240 VAC, 37 W max½
    IEEE 802.3at Type 2 Class 4½
    Consumption: 14 W typical, 25 W max

  • Video Management Software

    AXIS Camera Companion, AXIS Camera Station, Video management software from Axis Application Development

  • Languages

    English, German, French, Spanish, Italian, Russian, Simplified, Chinese, Japanese, Korean, Portuguese, Traditional Chinese

  • Connectors

    RJ45 10BASE-T/100BASE-TX/1000BASE-T
    RJ45 Push-pull Connector

  • Local Storage

    SD/SDHC/SDXC memory card slot
    Support for recording to dedicated network-attached storage (NAS)

  • Operating Temperature & Humidity

    With 30 W Midspan: -4 to 122 deg. F / -20 to 50 deg. C
    With 60 W Midspan: 58 to 122 deg. F / 14 to 50 deg. C
    Arctic Temperature Control: Start as low as -40 deg. C / -40 deg. F
    Humidity: 10 - 100% RH condensing

  • Storage Temperature

    -40 to 158 deg. F / -40 to 70 deg. C

  • Dimensions

    With Mounting Hook: 10.8 x 6.5 x 6.5" / 274.32 x 165.10 x 165.10mm
    Without Mounting Hook: 10.1 x 6.5 x 6.5" / 256.54 x 165.10 x 165.10mm

  • Weight

    6.5 lb / 2.9 kg

About Axis Communications Q6128-E

The compact, outdoor-ready AXIS Q6128-E delivers top performance 4K (8 MP) video at 25/30 fps, with 12x optical zoom and autofocus. Axis' Sharpdome technology provides full scene fidelity and perfect image quality in all directions - above as well as below the horizon. Using the latest technology, AXIS Q6128-E has good low light performance and the quick and precise pan of more than 700deg./s makes it easy to change viewing position and follow fast moving objects.

Axis Speed Dry function easily removes water drips from the dome glass, providing sharp images in rainy weather. The camera also features EIS and defogging.

• 4K Resolution
• Axis Sharpdome technology
• Axis Speed Dry function
• Pan performance up to 700deg./s
• Repaintable

Designed for Top Performance PTZ Surveillance
AXIS Q6128-E is a compact, outdoor-ready PTZ dome, offering 4K resolution at 30 frames per second, 12x optical zoom and autofocus. The 4K resolution provides four times as much detail as the standard HDTV 1080p resolution, improving the video quality significantly. To save bandwidth, you can view live video in HDTV 1080p while recording in 4K for forensic purposes.

Quick and precise pan of up to 700deg. per second makes it easy to change viewing position and follow fast moving objects. The camera is ideal for sports stadiums, squares, street junctions, open parking places and large open areas in shopping malls. AXIS Q6128-E also offers Electronic Image Stabilization, giving smoother video in windy conditions.

Axis Sharpdome Technology and Speed Dry Function
Axis' Sharpdome technology provides full scene fidelity and perfect image quality in all directions - above as well as below the horizon - making AXIS Q6128-E suitable also for uneven terrain. The Sharpdome technology includes Axis' unique Speed Dry function gives clear images in rainy weather. It can also simplify dome cleaning, allowing for more efficient methods such as high pressure cleaning.

Optimized for Maximum Reliability
AXIS Q6128-E is designed for reliable, weatherproof installation with built-in protection against dust, strong water jets, rain, snow and sunlight (IP66 and NEMA 4X rating) and impact resistance (IK08 rating). The camera features defogging and is protected by shock detection that sends an alarm if someone tries to vandalize it.

Intelligent Video
The built-in video analytics of AXIS Q6128-E includes Advanced Gatekeeper that allows the camera to detect an object in a specified area and zoom in on it. The camera also has substantial capacity for third-party intelligent video applications.

What's in the box:

  • Axis Communications Q6128-E 4K Day/Night Outdoor PTZ Network Camera
  • IP66-Rated RJ45 Connector Kit
  • Installation Guide
  • Windows Decoder 1-User License
  • Axis Communications 3 Year Warranty
