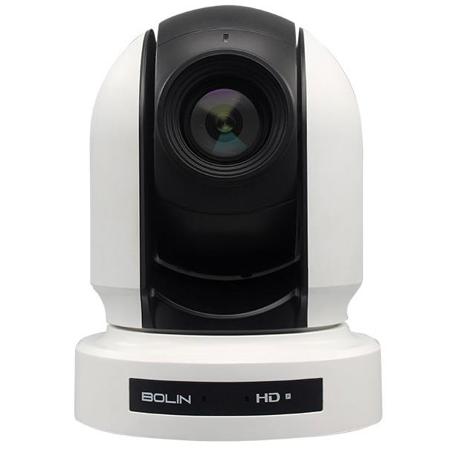

Bolin Technology VCC-7HD30S-3SMC VCC-7 2.13MP HD 30x Optical PTZ Camera
See all Bolin Technology items

Bolin Technology VCC-7HD30S-3SMC VCC-7 2.13MP HD 30x Optical PTZ Camera

SKU: BNVCC30S3SMC

This item is no longer available.

Recommended Alternatives

Bolin Technology B2-210: Picture 1 regular
Bolin Technology B2-210 Blue Line Full HD HDMI/USB/IP 10x PTZ Camera, Black
$795.00
Bolin Technology B2-220: Picture 1 regular
Bolin Technology B2-220 Blue Line FHD HDMI/3G-SDI/USB/IP 20x PTZ Camera, Black
$995.00
Bolin Technology B6-420: Picture 1 regular
Bolin Technology B6-420 Blue Line 4K HDMI/SDI/USB/IP 20x PTZ Camera, Dark Gray
$1,395.00
Bolin Technology B7-220: Picture 1 regular
Bolin Technology B7-220 Blue Line FHD HDMI/3G-SDI/USB/IP 20x PTZ Camera, Black
$1,195.00
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-12-07T10:30:10

Rated 4 out of 5

Ptz

Great PTZ! As good as Sony in my opinion

JESSE G.

Bolin Technology VCC-7HD30S Specifications

Camera

Camera

Jump to...

  • Camera

    30x

  • Image Sensor

    1/2.8 inch CMOS 2.13MP

  • Lens

    4.3-129mm

  • Digital Zoom

    12x

  • Horizontal Angle of View

    59.5 Degree (W)-3.3 Degree (T) 63.7 Degree (W)-2.3 Degree (T)

  • Aperture

    F1.6(W)-F4.7(T)Min. IlluminationColor: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)

  • Shutter Speed

    1/1-1/10000s

  • Focus

    Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit,

  • White Balance

    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp¼Fix/Auto/Outdoor Auto¼

  • Exposure

    Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE

  • Features

    High Sensitivity, Defog mode, Backlight Compensation, HLC, Flipper, Mirror

  • WDR

    Yes(130dB)

  • Defog

    Yes

  • E-FLIP

    Yes

  • Image Stabilizer

    Yes

  • Noise Reduction

    On/Off (level 5 to 1 / Off, 6 steps), 2D/3D

  • S/N Ratio

    >=50db

Mechanical

Jump to...

  • Pan Movement

    Horizontal: +/-350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S)

  • Tilt Movement

    Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Preset Position

    128¼Speed adjustable: Up to 150 Degree /S, 6 presets on remote controller.)

  • Preset Speed

    0-5 Level Adjustable

  • Preset Memory

    Yes, (Preset Memory for image parameters)

  • Home Position

    Support

  • Environmental

    Indoor

Interface

Jump to...

  • Video Output

    SDI, HDMI, CVBS

  • Video Format(HDMI)

    1080p: 60/59.94/50/29.97/30/25; 1080i: 60/59.94/50; 720p: 60/59.94/50/30/25

  • Video Format(CVBS)

    720 576i50, 720 480i60

  • Control Interface

    2xRJ45: RS232/RS422/RS485, IR Remote Controller

  • Control Protocol

    VISCA / Pelco D

  • System Upgrade

    USB2.0 (for FW upgrade only)

3G-SDI Signal

Jump to...

  • 3G-SDI

    Signal Fluctuations 800mv -/+10% (external cable extension requirements 75-5, 128 twisted pair shielding , coaxial cable)

  • Standard

    SMPTE 292(1.5Gb/s), SMPTE 425-A(3Gb/s) With SMPTE352 SDI Metadata Supported

  • Signal Format

    1080p: 60/59.94/50/29.97/30/25; 1080i: 60/59.94/50; 720p: 60/59.94/50/30/29.97/25

Environmenal

Jump to...

  • Operating Temperature

    14 to 122 Degree F (-10 to +50 Degree C)

  • Operating Humidity

    <=80% Suitable for Use

Power

Jump to...

  • Power Input

    12VDC

  • Power Consumption

    10.8W

Physical

Jump to...

  • Dimension

    6.3 x 7 x 8.6" (160 x 178 x 220mm)

  • Weight

    4.4 lbs (2.0kg)

About Bolin Technology VCC-7HD30S

Design
• High quality broadcast standard SDI video and extremely quiet and smooth Pan/Tilt movements ideal for broadcast, video conferencing, filming studios, churches and lecture halls, and for applications requiring high zoom ratios and variable slow speed controls
• Sturdy body design with base and frame made of Magnesium Alloy for durability and balance. Upgraded mechanical system is integrated with super quiet pan and tilt Stepper Motor to ensure accuracy, smoothness.
• Two RJ45 Ports for RS232 and RS422 control connection when using network cable as control cable.
• Phoenix Connection Cable Adapter included to provide convenience.
• USB Firmware upgrade interface provides capability of constantly improving the camera features and performances, even for customized function upgrades.

Funcionality
• Ideal for video-conferencing, house of worship, broadcast, educational environment, corporate training, distance learning applications.
• Comprehensive image parameter setting for broadcast and Pro AV applications.
• Adaptive speed for slow movement when running zoom-in application.
• Speeds of Pan/Tilt and Presets (0-5 level) are adjustable.
• Image parameter setting restore with presets and quick access operation.
• Firmware upgrade via USB2.0
• Standard mounting and ceiling mounting with E-Flip function.

Bolin Technology VCC-7HD30S Features

  • Zoom: Optical 30x, Digital 12x
  • Video Output: 3G-SDI+HDMI+IP+CVBS, SDI/HDMI video resolution supports up to 1080p60, 1080i59.94
  • Control supports RS232, RS422/485, IR remote control
  • Image stabilizer(30x) and true WDR 130dB
  • Comprehensive image parameter setting for broadcast and Pro AV applications
  • RJ45 Ports for RS232 and RS422 control connection when using network cable for control cable
  • Image parameter setting restore with presets and quick access operation
  • Extreme quiet and smooth speed adjustable PTZ movements, 6 speed of preset adjustable
  • USB Firmware upgrade interface provides capability of constantly improving the camera features and performances, even for customized function upgrades
  • Camera Power: 12VDC

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Zoom: Optical 30x, Digital 12x
  • Video Output: 3G-SDI+HDMI+IP+CVBS, SDI/HDMI video resolution supports up to 1080p60, 1080i59.94
  • Control supports RS232, RS422/485, IR remote control
  • Image stabilizer(30x) and true WDR 130dB
  • Comprehensive image parameter setting for broadcast and Pro AV applications
  • RJ45 Ports for RS232 and RS422 control connection when using network cable for control cable

What's in the box:

  • VCC-7HD30S-3SMC 2.13MP HD PTZ Camera
  • IR Remote Controller
  • Camera Power Adapter and Power Cord
  • Mounting Screw Bag
  • RJ45 to RS232 Extension Cable
  • RJ45 to RS422 Extension Cable
  • User Manual
  • Bolin Technology 2 Year Limited Warranty
