BZB GEAR BZ-MVS8X8-4K Specifications

Electrical parameters

Electrical parameters

Jump to...
  • Interface

    HDMI-A

  • HDMI /DP /VGA Version

    HDMI2.0,HDCP2.2

  • Bandwidth

    18Gbps

Video Resolution

Jump to...
  • Input

    800x600@60Hz,1024x768@60Hz, 1280x768@60Hz,1280x800@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840x2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/30Hz/50Hz/60Hz.

  • Output

    1920x1080@60Hz, 3840x2160@30Hz, 3840x2160@60Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz,

  • HDMI Amplitude

    T.M.D.S +/- 0.4Vpp

  • Differential impedance

    100 +/-15ohm

RS232/Ethernet control

Jump to...
  • Baud rate and protocol

    Baud rate:9600, data bit:8
    stop bit:1,no parity checking

  • Ethernet

    IE10.0+, HTML5

  • Max Consumption

    100W, 110-240VAC

Physical

Jump to...
  • Dimensions (L x W x H)

    17 x 11.8 x 1.7" (430 x 300 x 44mm)

  • Weight

    11 lbs (5kg)

  • Temperature

    Operating: 32 to 104 Degree F (0 to 40 Degree C)
    Storage: -4 to 158 Degree F (-20 to 70 Degree C)

  • Permissible humidity

    10%-50%

  • UPC Code

    850009357991

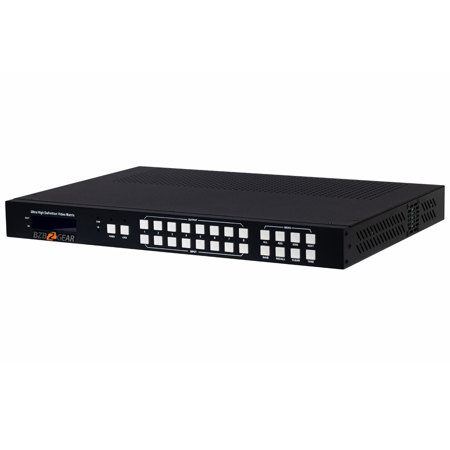

About BZB GEAR BZ-MVS8X8-4K

Discover the BZ-MVS8x8-4K, a cutting-edge 8x8 HDMI Matrix Switcher that seamlessly integrates with a Video Wall Processor to deliver unparalleled visual experiences. This sophisticated device is engineered to facilitate flawless switching among its eight HDMI inputs and outputs, ensuring a continuous flow of high-definition content without interruption.

What distinguishes the BZ-MVS8x8-4K is its exceptional capability to construct an immersive video wall, supporting configurations of up to six displays in layouts such as 2x2, 3x2, and 2x3. This feature makes it an ideal solution for environments that demand dynamic and flexible video presentations, such as conference rooms, command centers, sports bars, and any setting where a captivating video display is essential.

The versatility of the BZ-MVS8x8-4K is further enhanced by its multiple control options. Users can effortlessly switch between a unified video wall and individual displays using the intuitive front panel controls, an IR remote, RS-232 control, or the user-friendly WebGUI. This level of control ensures that the video output can be tailored to meet the specific needs of any event or presentation.

Equipped with the latest HDMI 2.0 technology, the BZ-MVS8x8-4K guarantees exceptional picture quality, supporting resolutions up to 4Kx2K@60Hz with full Chroma Sampling 4:4:4. This ensures that every image is rendered with the utmost clarity and color accuracy, making it perfect for high-stakes environments where detail and precision are paramount.

In addition to its video capabilities, this Matrix Switcher excels in audio management. It offers 2-Channel Stereo HDMI audio extraction and de-embedding, as well as HDMI Audio insertion and embedding. This allows for a high degree of audio customization, ensuring that the sound is just as impactful as the visual content.

With HDCP 2.2 compliance, the BZ-MVS8x8-4K ensures compatibility with the latest digital content protection standards, allowing users to stream protected content without any legal or technical hindrances.

In summary, the BZ-MVS8x8-4K is not merely a matrix switcher; it is a comprehensive solution for creating and managing high-definition video walls and displays, offering both versatility and performance to meet the needs of the most demanding audiovisual environments.

BZB GEAR BZ-MVS8X8-4K Features

  • Support HDMI 2.0/HDCP 2.2
  • Support seamless switching
  • Support IR Matrix Control
  • Support HDMI audio extract
  • Support external LR audio insert on HDMI stream
  • Support EDID management
  • HDMI video output resolution: 3840x2160@60, 3840x2160@30,1920x1080@60,1280x720@60, 1920x1200@60,1360x768@60,1280x1024@60, 1024x768@60
  • Front panel, RS232, TCP/IP (LAN 10M/100M) control
  • 4K2K60 (YUV 4:4:4) can be divided and displayed on Four/Six 1080p60 TVs (2x2,3x2, 2x3 layouts)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capable of creating immersive video walls with up to six displays in various configurations

What's in the box:

  • BZ-MVS8X8-4K 8x8 HDMI Video Wall Processor & Seamless Matrix Switcher with Scaler
  • AC Power Cord
  • Remote Control
  • RS-232/USB Cable
  • User Manual
  • BZB GEAR 2 Year Limited Warranty
