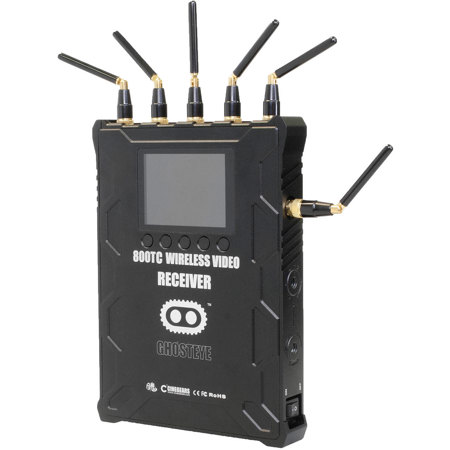

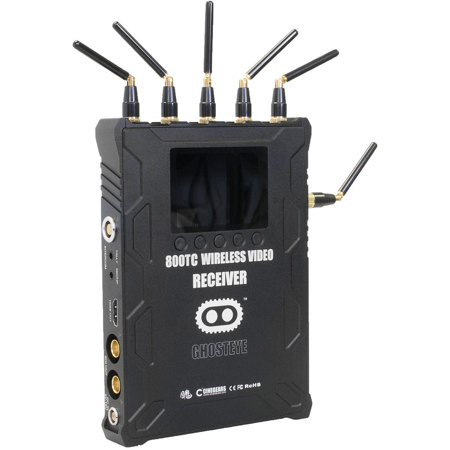

Cinegears Ghost-Eye 800TC ENG Wireless HD and SDI Video Receiver, Encrypted, Gold Mount

SKU: CG6818 MFR: 6-818
Earn VIP Reward Points

Key Features

  • Experience reliable video transmission with this Cinegears wireless receiver.
  • Achieve long-range connectivity up to 2624ft with our powerful wireless system.
  • Enjoy low latency, less than 1ms, for real-time monitoring with this receiver.
  • This wireless receiver supports both HDMI and SDI inputs for versatile use.
  • Ensure secure transmission with 128-bit AES encryption on this wireless unit.
  • Gold Mount compatibility allows easy integration with professional setups.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears Ghost-Eye 800TC Specifications

Wireless

Wireless

Jump to...
  • Wireless Range

    2624.67' (800m) (Line-of-Sight)

  • Channel Bandwidth

    40MHz

  • Frequency Range

    5.1 to 5.9GHz

  • Latency

    < 1ms

  • RF Sensitivity

    -70dBm

  • Wi-Fi

    2.4GHz

  • Wireless Video Compression

    Uncompressed

Interfaces

Jump to...
  • Antenna Ports

    6x RP-SMA Female

  • Video Connectors

    1x HDMI Output
    2x BNC Output

  • Audio Connectors

    1x 1/8" (3.5mm) TRRS Headphone/Microphone Mono Headphone Input

  • Other I/O

    1x USB Mini-B USB 2.0 Input
    1x 3.5mm Tally Input

  • Embedded Audio

    HDMI
    SDI
    Wireless

  • Encryption

    128-Bit AES

Format Support

Jump to...
  • Broadcast System Compatibility

    NTSC, PAL

  • Video Format

    HDMI: 1080p 4:2:2 10-Bit at 23.98, 24, 25, 30, 50, 60 fps
    HDMI: 1080PsF at 23.98, 24, 25 fps
    HDMI: 1080i/720p at 50, 59.94, 60 fps
    SDI/BNC: 1080p 4:2:2 10-Bit at 23.98, 24, 25, 30, 50, 60 fps
    SDI/BNC: 1080PsF at 23.98, 24, 25 fps
    SDI/BNC: 1080i/720p at 50, 59.94, 60 fps

  • Audio Format

    2-Channel PCM, DTS-HD, Dolby TrueHD Audio

  • Timecode

    Yes

  • LUT Support

    None

Display

Jump to...
  • Panel Type

    OLED

  • Built-In Battery

    None

  • Battery Support

    1x Gold-Mount

  • Power Connector

    1x LEMO (Unspecified Type) Input

  • Power Consumption

    Power Supply: 9 to 18 VDC8.5W

Environmental

Jump to...
  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 176 Degree F (-40 to 80 Degree C)

General

Jump to...
  • Mounting

    1x 1/4"-20 Female

  • Dimensions

    6.67 x 4.8 x 0.99" (169.5 x 122 x 25.2mm)

  • Weight

    28.22 oz (800g) (With Antennas)

  • UPC Code

    610877598076

About Cinegears Ghost-Eye 800TC

The encrypted Ghost-Eye Wireless 800TC ENG Video Receiver from CINEGEARS, featuring tally and talkback functionalities and a Gold mount battery plate, is ideal for receiving uncompressed 1080p60, 10-bit, 4:2:2 video at distances of up to 2625'.

Cinegears Ghost-Eye 800TC Features

  • Equipped with tally and talkback functionalities for crew communication
  • Receives uncompressed 1080p60, 10-bit, 4:2:2 video up to 2625'
  • Features an encrypted signal for secure video transmission
  • Comes with a Gold mount battery plate for convenient power setup
  • Supports HDMI/SDI cross-conversion for flexible video output options
  • Ideal for professional video production with low-latency performance

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience reliable video transmission with this Cinegears wireless receiver.
  • Achieve long-range connectivity up to 2624ft with our powerful wireless system.
  • Enjoy low latency, less than 1ms, for real-time monitoring with this receiver.
  • This wireless receiver supports both HDMI and SDI inputs for versatile use.
  • Ensure secure transmission with 128-bit AES encryption on this wireless unit.
  • Gold Mount compatibility allows easy integration with professional setups.

What's in the box:

  • Ghost-Eye 800TC ENG Encrypted Wireless HD and SDI Video Receiver
  • 5-Pin to XLR Connector
  • 5x Extended High-Range 5G Antenna
  • 2G Standard Antenna
  • Cinegears 3 Year Limited Warranty
