Cinegears Ghost-Eye 800TC ENG Wireless HD and SDI Video Transmission Kit, Encrypted, Gold Mount

SKU: CG6817 MFR: 6-817
Earn VIP Reward Points

Key Features

  • Experience seamless video transmission with <1ms latency for real-time monitoring.
  • Achieve a robust, encrypted wireless video signal up to 2624ft with this transmission kit.
  • Enjoy high-quality, uncompressed wireless video with HDMI and SDI input/output options.
  • The Ghost-Eye 800TC supports multiple video formats, ensuring compatibility with your workflow.
  • This wireless transmitter and receiver kit includes a Gold Mount for flexible power options.
  • Compact and lightweight design makes this wireless video solution ideal for on-the-go shoots.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears Ghost-Eye 800TC Specifications

Transmitter: Wireless

Transmitter: Wireless

Jump to...
  • Wireless Range

    2624.67' (800m) (Line-of-Sight)

  • Channel Bandwidth

    40MHz

  • Frequency Range

    5.1 to 5.9GHz

  • Latency

    < 1ms

  • RF Power

    < 17dBm

  • RF Sensitivity

    -70dBm

  • Wi-Fi

    2.4GHz

  • Wireless Video Compression

    Uncompressed

Transmitter: Interfaces

Jump to...
  • Antenna Ports

    2x RP-SMA Female

  • Video Connectors

    1x HDMI (HDMI 1.4) Input
    1x BNC (3G-SDI) Input
    1x BNC (3G-SDI) Loop Output

  • Audio Connectors

    1x 1/8" (3.5mm) TRRS Headphone/Microphone Stereo Headphone Headphone Output

  • Other I/O

    1x USB Mini-B Input
    1x 3.5mm Tally Output

  • Embedded Audio

    HDMI: 2-Channel
    SDI: 2-Channel
    Wireless: 2-Channel

  • Encryption

    128-Bit AES

Transmitter: Format Support

Jump to...
  • Broadcast System Compatibility

    NTSC, PAL

  • Video Format

    HDMI: 1080p at 23.98, 24, 25, 30, 50, 60 fps
    HDMI: 1080PsF at 23.98, 24, 25 fps
    HDMI: 1080i/720p at 50, 59.94, 60 fps
    SDI/BNC: 1080p at 23.98, 24, 25, 30, 50, 60 fps
    SDI/BNC: 1080PsF at 23.98, 24, 25 fps
    SDI/BNC: 1080i/720p at 50, 59.94, 60 fps

  • Audio Format

    2-Channel PCM, DTS-HD, Dolby TrueHD Audio

  • Timecode

    Yes

  • LUT Support

    None

Transmitter: Power

Jump to...
  • Battery Support

    1x Gold-Mount

  • Power Connector

    1x 2-Pin LEMO (9 to 18 VDC) Input

  • Power Consumption

    Device: (8.5W)

Transmitter: Environmental

Jump to...
  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 176 Degree F (-40 to 80 Degree C)

Transmitter: General

Jump to...
  • Mounting

    1x 1/4"-20 Female

  • Dimensions

    5.6 x 3 x 1" (142.2 x 76.2 x 25.4mm)

  • Weight

    14.11 oz (400g) (With Antenna)

Receiver: Wireless

Jump to...
  • Wireless Range

    2624.67' (800m) (Line-of-Sight)

  • Channel Bandwidth

    40MHz

  • Frequency Range

    5.1 to 5.9GHz

  • Latency

    < 1ms

  • RF Sensitivity

    -70dBm

  • Wi-Fi

    2.4GHz

  • Wireless Video Compression

    Uncompressed

Receiver: Interfaces

Jump to...
  • Antenna Ports

    6x RP-SMA Female

  • Video Connectors

    1x HDMI Output
    2x BNC Output

  • Audio Connectors

    1x 1/8" (3.5mm) TRRS Headphone/Microphone Mono Headphone Input

  • Other I/O

    1x USB Mini-B USB 2.0 Input
    1x 3.5mm Tally Input

  • Embedded Audio

    HDMI
    SDI
    Wireless

  • Encryption

    128-Bit AES

Receiver: Format Support

Jump to...
  • Broadcast System Compatibility

    NTSC, PAL

  • Video Format

    HDMI: 1080p 4:2:2 10-Bit at 23.98, 24, 25, 30, 50, 60 fps
    HDMI: 1080PsF at 23.98, 24, 25 fps
    HDMI: 1080i/720p at 50, 59.94, 60 fps
    SDI/BNC: 1080p 4:2:2 10-Bit at 23.98, 24, 25, 30, 50, 60 fps
    SDI/BNC: 1080PsF at 23.98, 24, 25 fps
    SDI/BNC: 1080i/720p at 50, 59.94, 60 fps

  • Audio Format

    2-Channel PCM, DTS-HD, Dolby TrueHD Audio

  • Timecode

    Yes

  • LUT Support

    None

Receiver: Display

Jump to...
  • Panel Type

    OLED

Receiver: Power

Jump to...
  • Built-In Battery

    None

  • Battery Support

    1x Gold-Mount

  • Power Connector

    1x LEMO (Unspecified Type) Input

  • Power Consumption

    Power Supply: 9 to 18 VDC8.5W

Receiver: Environmental

Jump to...
  • Temperature

    Operating: 14 to 122 Degree F (-10 to 50 Degree C)
    Storage: -40 to 176 Degree F (-40 to 80 Degree C)

Receiver: General

Jump to...
  • Mounting

    1x 1/4"-20 Female

  • Dimensions

    6.67 x 4.8 x 0.99" (169.5 x 122 x 25.2mm)

  • Weight

    28.22 oz (800g) (With Antennas)

  • UPC Code

    610877598458

About Cinegears Ghost-Eye 800TC

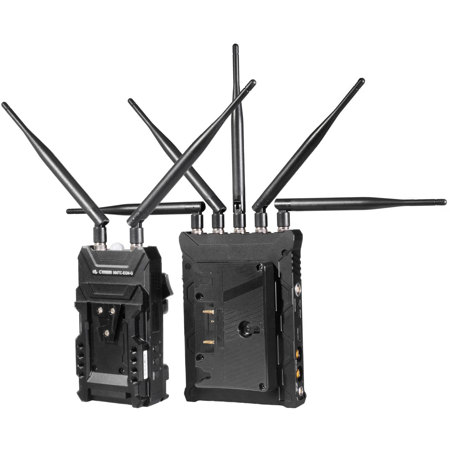

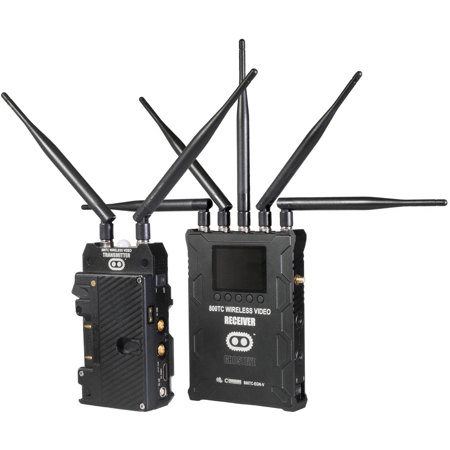

The CINEGEARS Ghost-Eye Wireless 800TC Video Transmission Kit includes an encrypted 800TC ENG transmitter and receiver, both with Gold mount battery plates. Also included are XLR power cables, antennas, and a waterproof carry case with a foam insert.

The 800TC transmitter can deliver video to up to four receivers, each using AES-128 encryption. Both the transmitter and receiver support uncompressed 1080p60 video up to 2625', HDMI/SDI cross conversion, and feature a low-latency rate of under 1 ms. Additionally, the 800TC units transmit tally information and offer talkback functionality, enabling communication among the crew via headsets.

Ghost-Eye Wireless 800TC ENG Video Transmitter (Gold Mount , Encrypted)
The encrypted Ghost-Eye Wireless 800TC ENG Video Transmitter with a Gold mount battery plate from CINEGEARS features tally and talk-back functionalities, making it ideal for transmitting uncompressed 1080p60, 10-bit, 4:2:2 video up to 2625'.

800TC ENG Ghost-Eye Wireless HD Video Receiver (Gold Mount, Encrypted)
The encrypted Ghost-Eye Wireless 800TC ENG Video Receiver with a Gold mount battery plate from CINEGEARS, featuring tally and talkback functionalities, is designed to receive uncompressed 1080p60, 10-bit, 4:2:2 video up to 2625'.

Cinegears Ghost-Eye 800TC Features

  • Includes encrypted 800TC ENG transmitter and receiver with Gold mount battery plates
  • Supports up to four 800TC receivers with AES-128 encryption for secure transmission
  • Transmits uncompressed 1080p60 video up to 2625' with HDMI/SDI cross conversion
  • Offers low-latency video transmission with less than 1 ms delay
  • Supports tally information and talkback for crew communication on set
  • Comes with XLR power cables, antennas, and a waterproof carry case with foam insert

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience seamless video transmission with <1ms latency for real-time monitoring.
  • Achieve a robust, encrypted wireless video signal up to 2624ft with this transmission kit.
  • Enjoy high-quality, uncompressed wireless video with HDMI and SDI input/output options.
  • The Ghost-Eye 800TC supports multiple video formats, ensuring compatibility with your workflow.
  • This wireless transmitter and receiver kit includes a Gold Mount for flexible power options.
  • Compact and lightweight design makes this wireless video solution ideal for on-the-go shoots.

What's in the box:

  • Ghost-Eye 800TC ENG Encrypted Wireless HD and SDI Video Transmitter
  • Ghost-Eye 800TC ENG Encrypted Wireless HD and SDI Video Receiver
  • 2x 5-Pin to XLR Connector
  • 7x 5G Extended High-Range Antenna
  • 2G Standard Antenna
  • Waterproof Foam Case
  • Cinegears 3 Year Limited Warranty
