Cisco SG110-16HP Specifications

  • Standards

    IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

  • Cabling type

    Category 5e or better

  • LED indicators

    System/PWR, link/activity, 100M,PoE, mMax PoE, cable diagnostics, loop detection, gigabit, mini-GBIC

  • Power supply

    Internal, universal: 10-240VAC, 50-60 Hz

  • Lock slot

    Slot for Kensington lock

  • Ports

    16x RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

  • Power over Ethernet (PoE)

    Power Dedicated to PoE: 64W
    Number of PoE Ports: 8

  • Fanless

    Yes

  • Switching capacity

    32 Gbps

  • Forwarding capacity

    Forwarding rate in million packets per second (mpps) (based on 64-byte packets): 23.8 mpps

  • Head-of-line (HOL) blocking

    HOL blocking prevention

  • Jumbo frame

    9216 bytes

  • Quality of service (QoS)

    802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR)

  • Loop detection

    Helps discover loops in the network to avoid broadcast storms

  • Cable diagnostics

    Quickly identify and troubleshoot network cable faults and/or shorts

  • Mounting options

    Desktop or Rack mount

  • Physical security lock

    Kensington lock slot

  • Minimum Requirements

    Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
    Cat5 or better Ethernet cable
    Network interface card for each computer

  • Compliance/certifications

    UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

  • Operating temperature

    32 to 104deg. F (0 to 40deg. C)

  • Storage temperature

    -4 to 158deg. F (-20 to 70deg. C)

  • Operating humidity

    10% to 90%, relative, noncondensing

  • Storage humidity

    5% to 90%, relative, noncondensing

  • System memory

    128-MB RAM
    128-MB Flash

  • Dimensions (WxDxH)

    11 x 1.75 x 6.7" (279.40 x 44.45 x 170.18mm)

  • Weight

    4.15 lbs (1.88kg)

  • UPC Code

    882658722707

About Cisco SG110-16HP

Affordable, Easy-to-Use Switches for Small Business Networks, with Zero Configuration Required
Give your office network a boost of speed and performance at a low price that takes almost no time to set up. Easily build a highly reliable network to connect your computers, printers, copiers and other office equipment. If your business is like most small companies, you do not have an IT staff to set up your network for you. Now you can have a high-performance, business-class office network that just works, right out of the box, with the Cisco 110 Series Unmanaged Switches. Users, workgroups, labs, departments or growing offices can now deliver large amounts of multimedia, image and video information across the network in almost no time.

Cisco 110 Series Unmanaged Switches deliver basic network connectivity and reliability for small businesses that is easy on the budget and without all the complexity. These switches provide all of the features, expandability and investment protection you expect from Cisco, with no installation software and nothing to configure. Just plug it in, connect your computers and other business equipment and get to work.

Cisco 110 Series Unmanaged Switches part of the Cisco Small Business networking solutions, are a line of unmanaged switches that provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity to connect your small business office. Available in desktop and rack-mount models, these switches are designed to suit any office space with basic network needs and to optimize power efficiency. They use less power and provide the robust, reliable connectivity your business demands, as well as support for advanced features such as quality of service (QoS), loop detection and cable diagnostics, all in a switch that you can set up yourself in minutes. A business-class, affordable network solution, Cisco 110 Series switches bring the proven reliability and investment protection of Cisco networking solutions to your small business.

What's in the box:

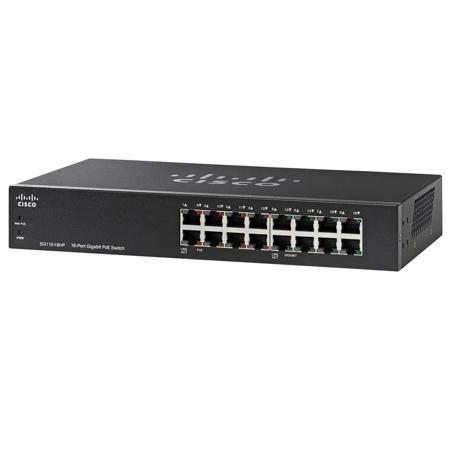

  • Cisco SG110-16HP 16-Port PoE Desktop/Rack Mountable Unmanaged Gigabit Switch
  • Power Cord/Power Adapter
  • Quick-Start Guide
  • Mounting Hardware
  • Cisco Lifetime Limited Warranty
