Just Reduced

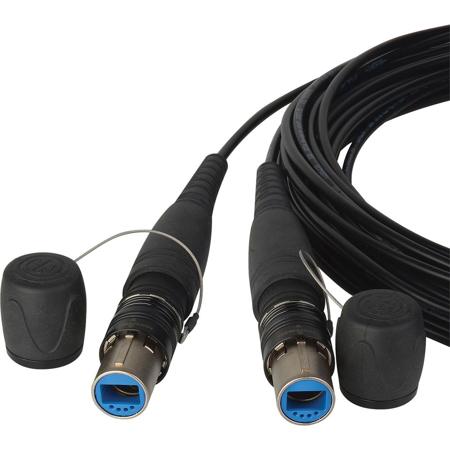

Camplex OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Tactical Snake, 100'

SKU: CPHFOC2S0100 MFR: HF-OC2S-0100
Earn VIP Reward Points

Key Features

  • Ensure reliable data & networking with this 100' OpticalCON DUO fiber optic cable.
  • Experience superior durability with our tactical snake, designed for harsh environments.
  • Enjoy high-performance digital audio & video with minimal signal loss (less than 0.5dB/km).
  • This singlemode fiber cable guarantees compatibility with various broadcast camera systems.
  • Benefit from robust connectivity; supports greater than 1000 mating cycles for longevity.
  • Get peace of mind with our 1-year warranty on this Camplex OpticalCON DUO cable assembly.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex DUO Singlemode Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    Non-Powered JVC FS-790 FS-CABHYB100, FS-CABHYB200, FS-CABHYB500 Cameras
    Non-Powered SONY CA-FB70, HXC-D70, HXCE-FB70, HXCU-FB70
    SONY CCFN-25, CCFN-50, CCFN-100
    Telecast CopperHead and SHED-HDX
    MultiDyne Silverback CAMLINX systems

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON DUO NO2SX, nickel finish

  • Connector 2

    Neutrik OpticalCON DUO NO2SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    100' (30.5m)

About Camplex DUO Singlemode

Because of its exceptional durability and lightweight design, the OpticalCON DUO NO2SX to NO2SX Singlemode Tactical Snake Cable is an ideal choice for field production in outside broadcast, rental houses, and more. This ruggedized fiber optic tactical cable is equipped with two fibers and no electrical conductors, ensuring a reliable singlemode operation.

Crafted by technicians trained to the latest standards outlined by Neutrik factory professionals, this cable is assembled in a state-of-the-art fiber optic lab, certified by Neutrik as a Certified OpticalCON Cable Assembler (COCA). This certification guarantees that your cable is built to the highest quality and polishing standards.

The OpticalCON DUO Tactical Snake Cable utilizes the advanced Neutrik OpticalCON system, which enhances the original OpticalCON by adding lockable, waterproof metal caps and rubber guards. These features make the cable more robust and particularly suitable for outdoor applications.

The cable's ergonomic strain relief design enhances cable protection and water resistance for long-term use. Additionally, the color-coding options allow for custom-built coding, providing a personalized touch to your cable assembly.

Based on LC-Duplex connectors, the OpticalCON system eliminates common weaknesses, ensuring a safe, dust-protected, and rugged connection. The OpticalCON DUO offers the flexibility of using cost-effective LC cables or the rugged OpticalCON cable assembly for mobile applications, making it a versatile solution for equipment connections and system integration.

The OpticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized, durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well-protected against dirt and dust by an automatically operated sealing cover, making the OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Tactical Snake Cable a reliable choice for all your connectivity needs.

Camplex DUO Singlemode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • IP65 waterproof in mated condition

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable data & networking with this 100' OpticalCON DUO fiber optic cable.
  • Experience superior durability with our tactical snake, designed for harsh environments.
  • Enjoy high-performance digital audio & video with minimal signal loss (less than 0.5dB/km).
  • This singlemode fiber cable guarantees compatibility with various broadcast camera systems.
  • Benefit from robust connectivity; supports greater than 1000 mating cycles for longevity.
  • Get peace of mind with our 1-year warranty on this Camplex OpticalCON DUO cable assembly.

What's in the box:

  • Camplex OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Tactical Snake
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
