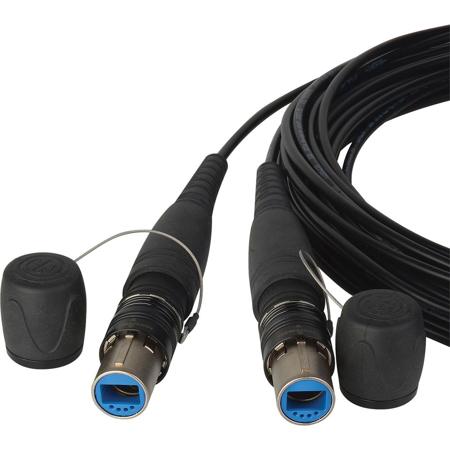

Camplex OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Tactical Snake, 500'

SKU: CPHFOC2S0500 MFR: HF-OC2S-0500
Earn VIP Reward Points

Key Features

  • Achieve rapid data transfer with this 500' OpticalCON DUO singlemode fiber optic cable.
  • Built for durability, this tactical fiber snake boasts a polyurethane jacket and robust build.
  • Enjoy reliable connectivity in harsh environments with its wide operating temperature range.
  • This OpticalCON DUO cable supports digital audio, video, and lighting control applications.
  • Experience secure connections; each OpticalCON DUO connector ensures minimal signal loss.
  • Benefit from long-lasting performance; this fiber optic cable is rated for 1000+ cycles.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Camplex DUO Singlemode Specifications

  • Applications

    Digital Audio & Video
    Digital Signage
    Data & Networking
    Lighting Control
    Deployable, Staging, and Harsh Environment
    Non-Powered JVC FS-790 FS-CABHYB100, FS-CABHYB200, FS-CABHYB500 Cameras
    Non-Powered SONY CA-FB70, HXC-D70, HXCE-FB70, HXCU-FB70
    SONY CCFN-25, CCFN-50, CCFN-100
    Telecast CopperHead and SHED-HDX
    MultiDyne Silverback CAMLINX systems

  • Cable Type

    Tactical, Polyurethane jacket, 5 mm diameter, black

  • Connector 1

    Neutrik OpticalCON DUO NO2SX, nickel finish

  • Connector 2

    Neutrik OpticalCON DUO NO2SX, nickel finish

  • Cable Retention Force

    500 N

  • Lifetime

    Greater than 1000 cycles

  • Insertion / Withdrawal Force

    Less than 45 N

  • Optical Type

    LC-UPC straight polish

  • Fiber Type

    9 um singlemode fiber

  • Cable Loss

    Less than 0.5 dB/km at 1310 / 1550 nm

  • Connector Loss

    Less than 0.5 dB/connector

  • Return Loss

    -55 dB / -45 dB RL (typical/max)

  • Operating Temperature

    -13 to 167 Degree F (-25 to 75 Degree C)

  • Minimum Bend Radius

    1.57" (4cm)

  • Length

    500' (152m)

About Camplex DUO Singlemode

Overcome the challenges of field production with the OpticalCON DUO NO2SX to NO2SX Singlemode Tactical Snake Cables, expertly designed for outdoor broadcast, rental houses, and more. These rugged and lightweight fiber optic cables, devoid of electrical conductors, are built for durability and performance.

Crafted with precision in a state-of-the-art fiber optic lab, these cables are certified by Neutrik as part of their Certified OpticalCON Cable Assembler (COCA) program. This certification guarantees that each cable is assembled to the highest standards, as outlined by Neutrik factory professionals, ensuring optimal performance and reliability.

These exclusive cables are constructed using the Neutrik OpticalCON ADVANCED system, an upgrade from the original OpticalCON. The ADVANCED system enhances robustness with lockable and waterproof metal caps and rubber guards, making it an ideal choice for outdoor applications.

The cable's ergonomic strain relief design improves cable protection and water resistance for long-term use. Additionally, color-coding options allow for custom-built coding, enhancing organization and ease of use.

Based on LC-Duplex connectors, the OpticalCON system eliminates common weaknesses, providing a safe, dust-protected, and rugged connection. The OpticalCON DUO offers the flexibility of using cost-effective LC cables or the robust OpticalCON cable assembly for mobile applications.

The OpticalCON DUO is the perfect solution for equipment connections and system integration, offering LC compatibility on both the chassis connector front and rear. The cable connector houses a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention using aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover, ensuring your connections remain clean and clear.

In summary, the OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Tactical Snake, 500' is a high-quality, reliable solution for your fiber optic needs, designed with durability, performance, and convenience in mind.

Camplex DUO Singlemode Features

  • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards
  • Machine polishing processes provide exceptionally low return loss and insertion loss
  • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination
  • APC Polishing types available upon request
  • Machine polished and tested end faces
  • Tactical tight buffered PUR Cable
  • Optical Shutter Mechanism for added protection
  • Typical back reflection less than-55dB
  • IP65 waterproof in mated condition

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve rapid data transfer with this 500' OpticalCON DUO singlemode fiber optic cable.
  • Built for durability, this tactical fiber snake boasts a polyurethane jacket and robust build.
  • Enjoy reliable connectivity in harsh environments with its wide operating temperature range.
  • This OpticalCON DUO cable supports digital audio, video, and lighting control applications.
  • Experience secure connections; each OpticalCON DUO connector ensures minimal signal loss.
  • Benefit from long-lasting performance; this fiber optic cable is rated for 1000+ cycles.

What's in the box:

  • Camplex OpticalCON DUO to OpticalCON DUO Singlemode Fiber Optic Tactical Snake
  • Diagnostics Documentation
  • Camplex 1 Year Limited Warranty
