Crown Audio XTi 6002 1200W Stereo Power Amplifier Specifications

  • Output Power

    3000W @ 2 Ohms Stereo (per Channel)
    2100W @ 4 Ohms Stereo (per Channel)
    1200W @ 8 Ohms Stereo (per Channel)
    6000W @ 4 Ohms Bridged-Mono
    4200W @ 8 Ohms Bridged-Mono

  • Sensitivity

    1.4 Vrms

  • Frequency Response

    (at 1 watt, 20 Hz - 20 kHz) +0 dB, -1 dB

  • Signal-to-Noise Ratio

    103 dB (A weighted)

  • Total Harmonic Distortion (THD)

    < 0.5%

  • Damping Factor 20 Hz to 1 kHz

    > 500

  • Crosstalk (below rated power)

    20 kHz - 1 kHz: > 70 db

  • Input Impedance (nominal)

    20k ohms balanced, 10k ohms unbalanced

  • Maximum Input Signal

    +22 dBu typical

  • AC Line Voltage/Frequency Configurations

    100 VAC, 120 VAC, 220-240 VAC 50/60 Hz

  • AC Line Current

    15.3A; no more than 180W at idle

  • Operating Temperature

    0 Deg.C to 40 Deg.C at 95% relative humidity (non-condensing)

  • Level

    Two front-panel rotary level controls, one for each channel

  • Power Switch

    On/Off switch applies AC power to the amplifier

  • Sel/Prev/Next Buttons

    Three buttons near the LCD screen that are used to access menu items and front panel lockout

  • LCD Screen

    Backlit liquid crystal display that shows preset and processing status

  • Signal Indicator

    Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).

  • -10 Indicator

    Green LED flashes when output signal exceeds -10 dB below clip.

  • -20 Indicator

    Green LED flashes when output signal level exceeds -20 dB below clip.

  • Ready Indicator

    Green LED, one per channel, illuminates when the amplifier is ready to produce audio.

  • Clip Indicator

    Red LED, one per channel, turns on at the threshold of audible distortion

  • Temp Indicator

    Red LED, one per channel, illuminates under excessive temperature conditions

  • Power Indicator

    Blue LED illuminates when the amplifier has been turned on and has power

  • Input Connectors

    XLR, one per channel

  • Link/Out Connector

    Loop-thru signal from input connector for linking another amplifier, one per channel.

  • Output Connectors

    Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).

  • HiQnet USB Connector

    Type B, connects to HiQnet network.

  • Chassis

    Steel

  • Front Panel

    Cast-aluminum

  • Cooling

    Proportional speed fan with front-to-rear airflow.

  • Dimensions (W x H x D)

    19 x 3.5 x 16.2" (48.26 x 8.89 x 41.14cm)

  • Weight

    24.0 lbs (10.9kg)

  • UPC Code

    871015005478

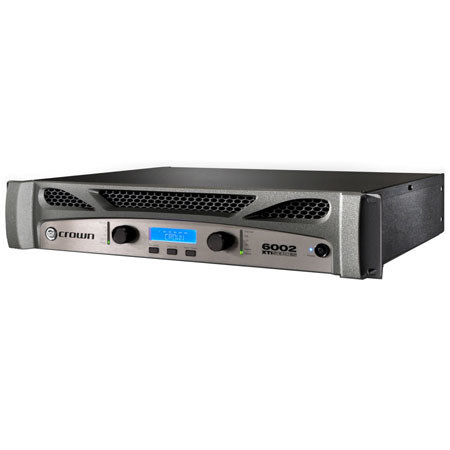

About Crown Audio XTi 6002 1200W Stereo Power Amplifier

The Crown Audio XTi 6002 Power Amplifier delivers up to 1200W per channel at 8 ohms and is an ideal solution for sound reinforcement, nightclub installation, bands, theaters, DJ applications and much more. The XTi 6002 offers highly accurate sound reproduction with very low distortion, perfect for music or voice playback. It has a switch-mode universal power supply, so it can be used anywhere. It handles a wide range of speaker impedances and outputs for a high degree of system compatibility.
br>An array of serious control features are implemented and easily accessed via the included HiQnet Band Manager & System Architect software packages. Crown's Peak Plus Limiters provide the ultimate in system performance and protection. There are 3 user-defined fan modes, adjustable EQ, adjustable crossover filters and much more.

Crown Audio XTi 6002 1200W Stereo Power Amplifier Features

  • Peak Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack and release
  • Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
  • 3 User-defined fan mode controls - normal, early and fullspeed - for matching fan performance to a specific application
  • New system monitoring provides software visibility of AC line voltage and power supply temperature
  • Integrated cast-aluminum handles for easy handling and enhanced durability
  • Locking power cord clip provides a secure connection between the amplifier and power cord
  • Updated HiQnet Band Manager and System Architect control software
  • Increased number of presets to a total of 30; 29 of which are user definable

Key Features

  • Peak Plus Limiters
  • Provides user control over frequency gain & filter type
  • Enhanced Subharmonic Synth section
  • 3 User-defined fan
  • Provides software visibility of AC line voltage and power supply temperature
  • New system monitoring

What's in the box:

  • Crown Audio XTi 6002 Power Amplifier
  • HiQnet Band Manager and System Architect Control Software
  • Crown Audio 3 Year Limited Warranty
