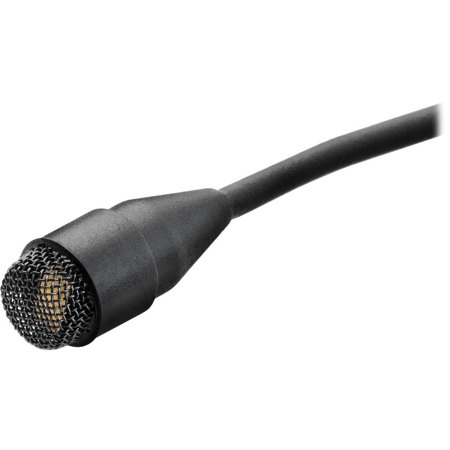

DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, Black

SKU: DPA61OCCB03 MFR: 4061-OC-C-B03
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for film and broadcast.
  • Experience exceptional sound quality; the d:screet Core 4061 ensures clear, natural voice pickup.
  • Enjoy versatile connectivity with the hardwired 3-Pin LEMO, compatible with pro audio equipment.
  • Achieve high-quality recordings in loud environments; this microphone handles up to 144 dB SPL.
  • The omnidirectional polar pattern delivers consistent audio, even when the subject moves slightly.
  • Minimize unwanted noise; its low self-noise ensures clean recordings for critical applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet Core 4061 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 3-Pin LEMO Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

Models
DPA Microphones d:screet Core 4061 Mini Omni Mic, 3-Pin LEMO, Loud SPL, Black
$625.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones MMB4066-F03 Miniature Omnidirectional Mic Boom, Beige
$624.95

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Microphone Type--Lavalier
Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorLemo 3 pinLemo 3 pinLemo 3 pin
Application--Presenter

About DPA Microphones d:screet Core 4061

With the d:screet Core 4061 Miniature Omnidirectional Microphone, you can experience superior audio capture tailored to your specific needs. This microphone, featuring a hardwired 3-pin LEMO connector, is a product of DPA's innovative technology, originally developed for hearing aids and measurement microphones.

The d:screet 4061 is a part of a series that shares essential features, each optimized for different applications. This microphone series is designed to endure the harshest conditions, making it a reliable choice for professional use. It boasts a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm, ensuring high-quality sound capture.

One of the standout features of the d:screet 4061 is its Double Vent Protection System, which offers excellent resistance to humidity and sweat. This microphone is also equipped with a Kevlar-reinforced cable relief, designed to withstand the rigors of everyday use in challenging environments.

The d:screet 4061 allows for customization of the acoustic response by selecting the appropriate grid. Each microphone comes with two grids: the Soft Boost Grid and the High Boost Grid. The Soft Boost Grid provides a 3 dB soft boost at 8-20 kHz, ideal for head-mounted applications or when a natural-sounding microphone is required. The High Boost Grid offers a 10 dB soft boost around 12 kHz, perfect for chest-placement applications.

The d:screet 4061 Miniature Omnidirectional Microphone is designed to handle high sound pressure levels (SPLs) up to 144 dB peak before clipping. This makes it an excellent choice for capturing loud sound sources, such as certain musical instruments and vocal performances.

Available in four colors - black, brown, beige, and white - the d:screet 4061 offers flexibility in matching your aesthetic preferences. An omnidirectional microphone, it captures sound equally from all directions, providing a natural and realistic audio experience.

All DPA microphones, including the d:screet 4061, can be easily configured to work with a wireless system thanks to the unique MicroDot termination and changeable adapter. This ensures a secure and consistent connection to your system. The adapters for wireless systems offer flexibility and affordability, allowing you to switch systems without needing to purchase a new microphone.

The d:screet 4061 is compatible with numerous professional wireless systems, including AKG, Audio Ltd., Audio-Technica, Beyerdynamic, Electro-Voice, Lectrosonics, Line 6, Micron, Mipro, Pastega, Ramsa, Sabine, Samson, Sennheiser, Shure, Sony, Telex, TOA, Trantec, Vega, Wisycom, and Zaxcom. Hardwired versions without the MicroDot connector are also available for various versions.

Experience the superior sound quality and flexibility of the d:screet Core 4061 Miniature Omnidirectional Microphone, a testament to DPA's commitment to innovative and reliable audio technology.

DPA Microphones d:screet Core 4061 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for film and broadcast.
  • Experience exceptional sound quality; the d:screet Core 4061 ensures clear, natural voice pickup.
  • Enjoy versatile connectivity with the hardwired 3-Pin LEMO, compatible with pro audio equipment.
  • Achieve high-quality recordings in loud environments; this microphone handles up to 144 dB SPL.
  • The omnidirectional polar pattern delivers consistent audio, even when the subject moves slightly.
  • Minimize unwanted noise; its low self-noise ensures clean recordings for critical applications.

What's in the box:

  • DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
