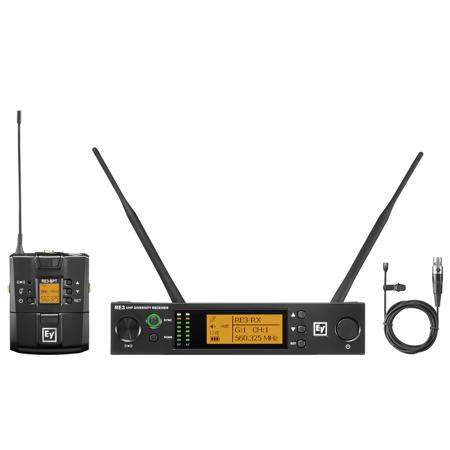

Electro-Voice RE3 Bodypack Set Includes, RE3-BPT Bodypack Transmitter, RE3-RX Diversity Receiver, 560-596MHz

SKU: EVBPKRSB5H MFR: F.01U.380.506
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this professional wireless microphone system.
  • Enjoy a reliable connection for clear audio during presentations and performances.
  • This wireless lavalier microphone is easy to use, perfect for on-the-go recording.
  • Get extended battery life for long events; no need to worry about interruptions.
  • The wide range of this microphone system offers freedom of movement on stage.
  • Its compact, portable design makes this wireless microphone ideal for travel.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3 Bodypack Set Specifications

Bodypack Transmitter

Bodypack Transmitter

Jump to...
  • Finish

    Black polyurethane paint

  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5H: 36 MHz (560-596 MHz)

  • Tuning bandwidth

    36MHz

  • RF power output

    Frequency band specific: 5H (560-596MHz): Low 10mW / High 50mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Dimensions (HxWxD)

    Without Antenna: 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm)

  • Weight

    6.14 oz (174.07g)

Diversity Receiver

Jump to...
  • Finish

    Black polyurethane paint

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6%@1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz-16kHz +/-2dB (BPT) 51Hz-16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev@1kHz Tone
    1/4" (6.3mm) Phone Jack:-10dBV
    XLR Jack:-4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohm (unbalanced) 1400 Ohm (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12-15V/500mA

  • Dimensions

    Receiver (H x W x D): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver (H x W x D): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Receiver: 2.71 lbs (1.23kg)

About Electro-Voice RE3 Bodypack Set

When it comes to professional audio transmission, the RE3 Bodypack Set stands out with its high-quality components, including the RE3-BPT Bodypack Transmitter and the RE3-RX Diversity Receiver. This set, designed by the reputable brand Electro-Voice, is tailored to meet the demands of a variety of performance and presentation applications, from live theater productions to high-energy fitness classes.

The RE3-BPT Bodypack Transmitter is a compact, lightweight, and robust UHF device, designed for easy concealment and comfort during use. Its all-metal body ensures durability, while the unique magnetic sliding latch and lock mechanism provides effortless access to the batteries. The transmitter operates on 2 AA alkaline or rechargeable NiMH cells and features an ultrasonic sync function for simple system setup. Its selectable output power and generous tuning bandwidth help overcome transmission range challenges and avoid potential interference.

The RE3-RX Diversity Receiver, a professional rack-mountable, 1/2 space device, functions as the control center for the RE3 wireless set. It features clear frequency scanning and synchronizing, as well as full transmitter control settings. The diversity reception technology minimizes the chances of signal dropouts by providing two separate antenna locations, chosen electronically based on signal strength and stability. The receiver's easy-to-use frequency scanning function simplifies locating and tuning to a clear operating frequency, while the sync function wirelessly synchronizes all operating parameters to the mated transmitter.

This set operates within a frequency range of 560-596 MHz, offering versatility for various applications. The RE3 Bodypack Set is a testament to Electro-Voice's commitment to innovative, reliable, and professional audio equipment. Whether you're delivering a stand-up presentation or performing in a musical, this durable and high-quality set ensures optimal wireless audio transmission.

Electro-Voice RE3 Bodypack Set Features

  • Pre-packaged bodypack transmitter sets with the latest EV transmitter input devices, complimented with an extensive range of accessories for every application
  • Designed to deliver superior audio performance with best-in-class wireless flexibility and ease of use

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this professional wireless microphone system.
  • Enjoy a reliable connection for clear audio during presentations and performances.
  • This wireless lavalier microphone is easy to use, perfect for on-the-go recording.
  • Get extended battery life for long events; no need to worry about interruptions.
  • The wide range of this microphone system offers freedom of movement on stage.
  • Its compact, portable design makes this wireless microphone ideal for travel.

What's in the box:

  • RE3-BPT Bodypack Transmitter with Antenna and Beltclip
  • 2x AA Batteries
  • Engineering Datasheet
  • Product Documentation Information Card
  • RE3-RX Diversity Receiver
  • 2x Receiver Antennas
  • Universal Power Supply
  • Receiver Rack Mounting Hardware
  • Electro-Voice 3 Year Limited Warranty
