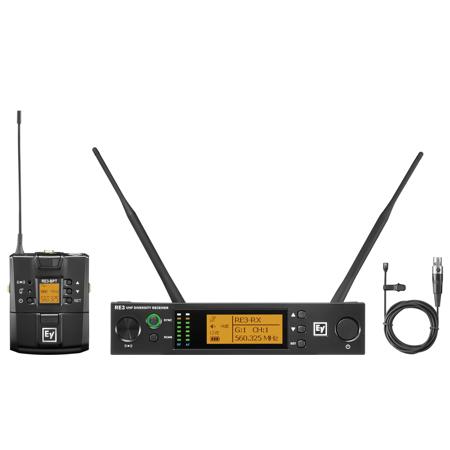

Electro-Voice RE3 Bodypack Set Includes, RE3-BPT Bodypack Transmitter, RE3-RX Diversity Receiver, 653-663MHz

SKU: EVBPKRSB6M MFR: F.01U.380.507
Earn VIP Reward Points

Key Features

  • Achieve crystal-clear audio with this wireless microphone system, perfect for presentations.
  • Enjoy reliable performance with a wide 653-663MHz frequency range for clear sound.
  • This lavalier wireless microphone offers freedom of movement for dynamic performances.
  • Electro-Voice wireless microphone delivers exceptional sound quality for any live event.
  • The RE3 bodypack transmitter ensures a secure, comfortable fit for hands-free use.
  • Use this wireless microphone for lectures, knowing its durable build handles daily use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3 Bodypack Set Specifications

Bodypack Transmitter

Bodypack Transmitter

Jump to...
  • Finish

    Black polyurethane paint

  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    6M: 10 MHz (653-663 MHz)

  • Tuning bandwidth

    36MHz

  • RF power output

    Frequency band specific: 6M (653-663MHz): Low 10mW / High 20mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Dimensions (H x W x D)

    Without Antenna: 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm)

  • Weight

    6.14 oz (174.07g)

Diversity Receiver

Jump to...
  • Finish

    Black polyurethane paint

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6%@1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz-16kHz +/-2dB (BPT) 51Hz-16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev@1kHz Tone
    1/4" (6.3mm) Phone Jack:-10dBV
    XLR Jack:-4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohm (unbalanced) 1400 Ohm (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12-15V/500mA

  • Dimensions

    Receiver (H x W x D): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver (H x W x D): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Receiver: 2.71 lbs (1.23kg)

About Electro-Voice RE3 Bodypack Set

If you're seeking a professional, reliable, and advanced solution for wireless audio transmission, look no further than the RE3 Bodypack Set. This high-quality set from Electro-Voice, a reputable brand known for its exceptional audio equipment, includes the RE3-BPT Bodypack Transmitter and the RE3-RX Diversity Receiver, operating within a frequency range of 653-663 MHz.

The RE3 Bodypack Set is designed to cater to a wide array of performance and presentation applications, making it an ideal choice for live performances, theater productions, and any situation where superior wireless audio transmission is a necessity. The set includes a 1/2-rack-space diversity receiver with antennas, a universal power supply, a rack mount kit, a bodypack transmitter, and batteries.

The RE3-BPT Bodypack Transmitter is a compact, lightweight, yet robust UHF bodypack transmitter that can be easily worn and concealed. It's perfect for stand-up presentations, theatrical and musical performances, and high-energy fitness and athletic situations. This sleek and rugged transmitter operates on 2 AA alkaline or rechargeable NiMH cells and features an ultrasonic sync function for simple system setup, syncing the transmitter to the receiver frequency tuning and other functional data.

The RE3-RX Diversity Receiver is a UHF wireless diversity receiver that features clear frequency scanning and wireless synchronization to the transmitter. It offers balanced XLR and unbalanced 1/4" TRS outputs and pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. The receiver is rack-mountable, making it easy to install and organize in a professional setting.

Both the transmitter and receiver boast a tuning bandwidth of up to 36 MHz, providing generous frequency tuning options to help avoid potential interference. The unique magnetic sliding latch and lock mechanism on the transmitter ensures the battery door remains securely closed, while the receiver's easy-to-read LCD display provides vivid viewing of all menus and operating parameters.

In conclusion, the RE3 Bodypack Set offers a durable, high-quality, and professional solution for all your wireless audio transmission needs. Its advanced features and reliable performance make it a standout choice in today's challenging RF environments.

Electro-Voice RE3 Bodypack Set Features

  • Pre-packaged bodypack transmitter sets with the latest EV transmitter input devices, complimented with an extensive range of accessories for every application
  • Designed to deliver superior audio performance with best-in-class wireless flexibility and ease of use

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Achieve crystal-clear audio with this wireless microphone system, perfect for presentations.
  • Enjoy reliable performance with a wide 653-663MHz frequency range for clear sound.
  • This lavalier wireless microphone offers freedom of movement for dynamic performances.
  • Electro-Voice wireless microphone delivers exceptional sound quality for any live event.
  • The RE3 bodypack transmitter ensures a secure, comfortable fit for hands-free use.
  • Use this wireless microphone for lectures, knowing its durable build handles daily use.

What's in the box:

  • RE3-BPT Bodypack Transmitter with Antenna and Beltclip
  • 2x AA Batteries
  • Engineering Datasheet
  • Product Documentation Information Card
  • RE3-RX Diversity Receiver
  • 2x Receiver Antennas
  • Universal Power Supply
  • Receiver Rack Mounting Hardware
  • Electro-Voice 3 Year Limited Warranty
