Electro-Voice RE3-ND96 Wireless Handheld System, 488-524MHz
Electro-Voice RE3-ND96: Picture 1 thumbnail
Electro-Voice RE3-ND96: Picture 2 thumbnail
Electro-Voice RE3-ND96: Picture 3 thumbnail
See all Electro-Voice items

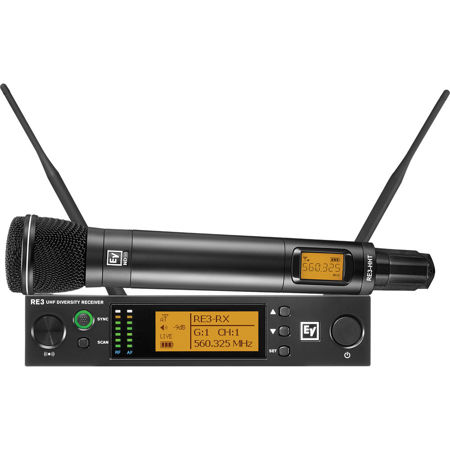

Electro-Voice RE3-ND96 Wireless Handheld System, Includes ND96-RC3 Wireless Head with ND96 Super Cardioid Microphone Capsule, RE3-HHT Handheld Transmitter and RE3-RX Diversity Receiver, 488-524MHz

SKU: EVF01U354209 MFR: F.01U.354.209
Be the first to review this itemAsk a Question
$739.00
$799.00
Save: $60 (8%)
OR
$124/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound with this Electro-Voice wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement; the handheld wireless microphone boasts a reliable 488-524 MHz range.
  • The ND96 supercardioid microphone capsule delivers exceptional clarity and reduces unwanted noise.
  • Achieve professional audio quality with this wireless system, ideal for presentations and performances.
  • This durable wireless handheld system includes rack mounting hardware for secure integration.
  • Long-lasting battery life ensures the wireless microphone is ready for extended use at any event.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$119.99
3-Year Adorama Protect$154.99
5-Year Adorama Protect$269.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice RE3-ND96 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...

  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-15 kHz

  • Frequency response, far

    140 Hz-15 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity, open circuit voltage

    In Flat position: 4.7 mV/Pascal (-46.5 dBV/Pa)
    In Vocal presence position: 3.2 mV/Pascal (-50 dBV/Pa) at 1kHz

  • Maximum SPL

    136.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

Receiver

Jump to...

  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5L: 488 - 524 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (Thd)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    51Hz to 16kHz +/-2dB (HHT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

General

Jump to...

  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.3 x 2" (83.82 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)
    Receiver(HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver(HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Wireless Head with Mic Capsule: 6.8 oz (192.78g)
    Handheld Transmitter: 12.2 oz (345.86g)
    Receiver: 2.71 lbs (1.23kg)

Other

Jump to...

  • UPC Code

    800549898386

About Electro-Voice RE3-ND96

Why settle for less when you can have the best with the RE3-ND96 Wireless Handheld System This high-quality, professional-grade audio equipment is designed to deliver superior sound performance, making it an ideal choice for live performances, recording studios, and broadcasting.

The system includes the ND96-RC3 Wireless Head, equipped with an ND96 Super Cardioid Microphone Capsule. This dynamic cardioid thread-on vocal microphone head is known for its robustness and high performance. It's designed to adapt to Electro-Voice wireless handheld transmitters, and many other brands, that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention. The microphone head's large Mylar diaphragm delivers a rich and detailed frequency response, offering exceptional acoustic control on very loud stages.

The RE3-ND96 system also features the RE3-HHT Handheld Transmitter. This robust, metal-bodied UHF handheld transmitter is lightweight yet durable, making it perfect for professional performance and presentation applications. It offers a selectable low and high output power, and up to 36 MHz tuning bandwidth, ensuring reliable wireless audio transmission over both short and long ranges.

Completing the system is the RE3-RX Diversity Receiver. This professional, rack-mountable receiver is designed to function as the control center for your RE3 wireless set. It features clear frequency scanning and wireless synchronization to the transmitter, ensuring quick and easy setup. The diversity reception technology minimizes the chances of signal dropouts, providing two separate antenna locations that are electronically chosen based on signal strength and stability.

The RE3-ND96 Wireless Handheld System operates on a frequency range of 488-524 MHz, offering a wide range of tuning options to avoid interference. With its advanced features and reliable performance, this system is a must-have for anyone seeking superior audio transmission. Experience the difference with the RE3-ND96 Wireless Handheld System.

Electro-Voice RE3-ND96 Features

  • High-quality, professional-grade RE3-ND96 Wireless Handheld System for superior audio transmission
  • ND96-RC3 Wireless Head with dynamic cardioid thread-on vocal microphone for rich & detailed sound
  • RE3-HHT Handheld Transmitter with selectable low and high output power for reliable wireless audio transmission
  • RE3-RX Diversity Receiver with clear frequency scanning and wireless synchronization for quick and easy setup
  • Operates on a frequency range of 488-524 MHz, offering a wide range of tuning options to avoid interference
  • Ideal for live performances, recording studios, and broadcasting applications

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience superior sound with this Electro-Voice wireless microphone system, perfect for live vocals.
  • Enjoy freedom of movement; the handheld wireless microphone boasts a reliable 488-524 MHz range.
  • The ND96 supercardioid microphone capsule delivers exceptional clarity and reduces unwanted noise.
  • Achieve professional audio quality with this wireless system, ideal for presentations and performances.
  • This durable wireless handheld system includes rack mounting hardware for secure integration.
  • Long-lasting battery life ensures the wireless microphone is ready for extended use at any event.

What's in the box:

  • Electro-Voice ND96-RC3 Wireless Head with ND96 Microphone Capsule
  • RE3-HHT Handheld Transmitter
  • RE3-RX Diversity Receiver
  • Microphone Stand Adapter
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
