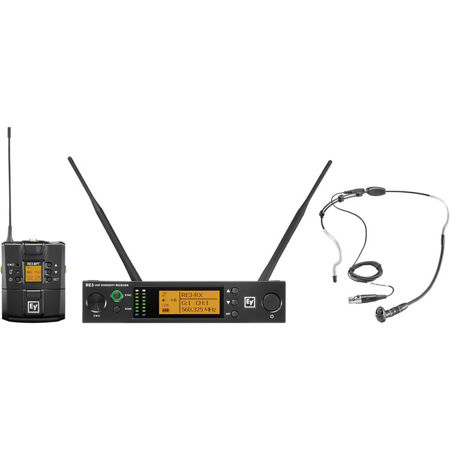

Electro-Voice RE3-BPHW Wireless Bodypack System, Includes RE3-ACC-HW3 Super Cardioid Headworn Microphone with TA4F Connector, RE3-RX Diversity Receiver and RE3-BPT Bodypack Transmitter, 560-596MHz

SKU: EVF01U354237 MFR: F.01U.354.237
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless microphone system, perfect for vocals.
  • The RE3-BPHW system features a super cardioid headworn microphone for excellent sound isolation.
  • Enjoy freedom of movement with the reliable bodypack transmitter, operating in the 560-596MHz range.
  • Achieve professional sound quality with the diversity receiver, minimizing dropouts and interference.
  • Customize your audio with adjustable gain and frequency settings on the bodypack wireless microphone.
  • Long-lasting battery life ensures the wireless system supports extended performances and presentations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-BPHW Specifications

Headworn Mic

Headworn Mic

Jump to...
  • Element type

    Self-biased condenser

  • Frequency response

    30 Hz - 18 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity: open circuit voltage. 1 kHz

    0.5 mV/Pascal (-47 dBV/PA)

  • Maximum SPL

    130 dB SPL

  • Impedance

    1000 ohms

  • Power requirements

    3-9 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 1

  • Electrical contact pinouts

    Pin #1 - Ground, shield
    Pin #2 - Audio
    Pin #3 - Bias voltage
    Pin #4 - N/C

  • Microphone connector

    4-pin mini plug

  • Head finish

    Non-reflecting Black

  • Material

    Black stainless steel painted adjustable headband frame. Molded back facing connector joint with 2.5mm (0.10") jack for detachable cable, black textured PU. Black painted steel 100 x 4.5mm (3.94 x 0.18") flexible mic positing tube. Integrated black TPR mic shock mount. Clear soft silicone tubing atear contact points

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    5H: 560 - 596 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    36 MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (THD)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz to 16kHz +/-2dB (BPT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

Bodypack Transmitter

Jump to...
  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Bandwidth limits (MHz)

    5H: 560 - 596 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    Low: 10mW
    High: 50mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Headworn Mic (Length): Cable - 45.28" (1150.11mm), Boom - 5.83" (148.08mm)
    Transmitter (HxWxD): 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm) (Without Antenna)
    Receiver (HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver (HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Headworn Mic: 1.35 oz (38.27g)
    Transmitter: 6.14 oz (174.07g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898645

About Electro-Voice RE3-BPHW

You can elevate your live performances, presentations, or athletic instructions with the RE3-BPHW Wireless Bodypack System. This professional-grade system includes the RE3-ACC-HW3 Super Cardioid Headworn Microphone with TA4F Connector, RE3-RX Diversity Receiver, and RE3-BPT Bodypack Transmitter, operating within the 560-596MHz frequency range.

The HW3 supercardioid headworn microphone, a key component of this system, is designed for comfort and durability. Its supercardioid polar pattern ensures superb acoustic isolation and gain before feedback, making it an ideal choice even in high SPL sound reinforcement applications. The microphone's condenser supercardioid element delivers an acoustically-isolated, full-bodied sound, while the flexible gooseneck section allows for easy positioning. The vibration-absorbing shock-mounted microphone head minimizes handling noise, and the detachable cable ensures easy storage and transportation.

The RE3-RX Diversity Receiver is a professional, rack-mountable, 1/2 space diversity receiver that functions as the control center for the RE3 wireless set. It features frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter. The diversity reception technology minimizes the chances of signal dropouts, providing two separate antenna locations which are electronically chosen based on signal strength and stability.

The RE3-BPT Bodypack Transmitter is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. The all-metal body is robust and durable, operating on 2 AA alkaline or rechargeable NiMH cells. The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

This advanced system from Electro-Voice, a reputable brand known for high-quality audio equipment, is designed to enhance the sound quality of your performances, ensuring clear and stable audio transmission.

Electro-Voice RE3-BPHW Features

  • Professional-grade RE3-BPHW Wireless Bodypack System for enhanced audio performance
  • Includes RE3-ACC-HW3 Super Cardioid Headworn Microphone with TA4F Connector for clear and natural sound
  • Features RE3-RX Diversity Receiver with frequency scanning and synchronizing for reliable signal strength
  • Compact & robust RE3-BPT Bodypack Transmitter, easily worn & concealed for various applications
  • Supercardioid polar pattern for superb acoustic isolation and gain before feedback
  • Durable all-metal body design of the transmitter, with unique magnetic latch and lock for easy battery access

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this Electro-Voice wireless microphone system, perfect for vocals.
  • The RE3-BPHW system features a super cardioid headworn microphone for excellent sound isolation.
  • Enjoy freedom of movement with the reliable bodypack transmitter, operating in the 560-596MHz range.
  • Achieve professional sound quality with the diversity receiver, minimizing dropouts and interference.
  • Customize your audio with adjustable gain and frequency settings on the bodypack wireless microphone.
  • Long-lasting battery life ensures the wireless system supports extended performances and presentations.

What's in the box:

  • Electro-Voice RE3-ACC-HW3 Super Cardioid Headworn Microphone with TA4F Connector
  • RE3-RX Diversity Receiver
  • RE3-BPT Bodypack Transmitter with Antenna and Beltclip
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Cloth Drawstring Storage Pouch for Microphone- Foam Windscreen for Microphone- Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
