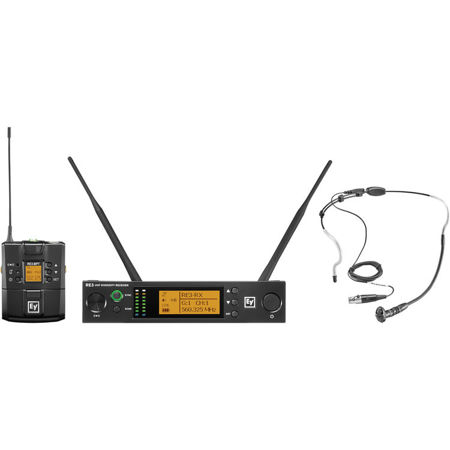

Electro-Voice RE3-BPHW Wireless Bodypack System, Includes RE3-ACC-HW3 Super Cardioid Headworn Microphone with TA4F Connector, RE3-RX Diversity Receiver and RE3-BPT Bodypack Transmitter, 653-663MHz

SKU: EVF01U354238 MFR: F.01U.354.238
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with the bodypack transmitter's reliable wireless range on stage.
  • The headworn microphone's super cardioid pattern minimizes background noise, enhancing vocal clarity.
  • Achieve professional sound quality with a wide 30 Hz - 18 kHz frequency response for vocals.
  • Easily integrates into any setup with rack mounting hardware and versatile connectivity options.
  • Long-lasting battery life ensures uninterrupted performance during extended events and conferences.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-BPHW Specifications

Headworn Mic

Headworn Mic

Jump to...
  • Element type

    Self-biased condenser

  • Frequency response

    30 Hz - 18 kHz

  • Polar pattern

    Supercardioid

  • Sensitivity: open circuit voltage. 1 kHz

    0.5 mV/Pascal (-47 dBV/PA)

  • Maximum SPL

    130 dB SPL

  • Impedance

    1000 ohms

  • Power requirements

    3-9 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 1

  • Electrical contact pinouts

    Pin #1 - Ground, shield
    Pin #2 - Audio
    Pin #3 - Bias voltage
    Pin #4 - N/C

  • Microphone connector

    4-pin mini plug

  • Head finish

    Non-reflecting Black

  • Material

    Black stainless steel painted adjustable headband frame. Molded back facing connector joint with 2.5mm (0.10") jack for detachable cable, black textured PU. Black painted steel 100 x 4.5mm (3.94 x 0.18") flexible mic positing tube. Integrated black TPR mic shock mount. Clear soft silicone tubing atear contact points

Receiver

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Carrier Frequency Range

    6M: 653 - 663 MHz

  • Selectable frequencies

    400

  • Transmit output power

    10 and 20 mW

  • Sync Frequency

    Ultrasonic 40 kHz

  • Diversity

    Antenna diversity

  • Bandwidth

    10 MHz

  • Signal/Noise Ratio

    >100dB(A)

  • Total Harmonic Distortion (THD)

    <0.6% at 1kHz

  • Receiving Sensitivity

    -81dBm for -12dB SINAD

  • Frequency Response

    63Hz to 16kHz +/-2dB (BPT)

  • Antenna Type

    Detachable 1/2 wave with BNC connector

  • Antenna Booster Power

    DC12 - 15V/100mA

  • Function Display By

    LCD

  • Contents Of Display

    Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator

  • Control Functions

    Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset

  • Sync Data Options

    Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)

  • Audio Frequency Output Level

    Ref: +/-22.5kHz Dev at 1kHz Tone
    1/4" (6.3mm) Phone Jack: -10dBV
    XLR Jack: -4dBV(Line), -24dBV(MIC)

  • Audio Frequency Output Impedance

    240 Ohms (unbalanced) 1400 Ohms (balanced)

  • Squelch and noise muting

    Noise muting and tone code locking

  • Output Ports

    1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack

  • Power Supply

    DC12 to 15V/500mA

  • Finish

    Black polyurethane paint

Bodypack Transmitter

Jump to...
  • Frequency oscillation mode

    Phase-locked loop (PLL)

  • Bandwidth limits (MHz)

    6M: 653 - 663 MHz

  • Tuning bandwidth

    10 MHz

  • Selectable frequencies

    400

  • Transmit output power

    Low: 10mW
    High: 20mW

  • Sync frequency

    Ultrasonic

  • Display by

    LCD + LED

  • Function controls

    Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock

  • RF stability

    <+/-10kHz at Fc

  • Modulation frequency shift

    Wideband FM +/-48kHz deviation

  • Harmonic radiation

    < -50dBc

  • Input jack

    4-pin mini jack

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging contacts

    Yes

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions (HxWxD)

    Headworn Mic (Length): Cable - 45.28" (1150.11mm), Boom - 5.83" (148.08mm)
    Transmitter (HxWxD): 3.2 x 2.54 x 0.98" (81.28 x 64.52 x 24.89mm) (Without Antenna)
    Receiver (HxWxD): 1.85 x 8.27 x 6.89" (46.99 x 210.06 x 175.01mm) (With Feet Attached and Antenna Jack)
    Receiver (HxWxD): 1.73 x 8.27 x 6.1" (43.94 x 210.06 x 154.94mm) (Without Feet Attached and Antenna Jack)

  • Weight

    Headworn Mic: 1.35 oz (38.27g)
    Transmitter: 6.14 oz (174.07g)
    Receiver: 2.71 lbs (1.23kg)

  • UPC Code

    800549898652

About Electro-Voice RE3-BPHW

Before stepping onto the stage or leading your next presentation, ensure your voice is heard clearly and reliably with the advanced RE3-BPHW Wireless Bodypack System from Electro-Voice. This professional-grade wireless set is engineered to deliver high-quality vocal performance, making it an essential tool for singers, speakers, and instructors who demand crisp, natural sound reproduction.

The centerpiece of this system is the RE3-ACC-HW3 Super Cardioid Headworn Microphone, featuring a TA4F connector for seamless integration with the included RE3-BPT Bodypack Transmitter. The HW3 microphone is designed to offer exceptional vocal clarity and isolation, thanks to its supercardioid polar pattern. This design effectively minimizes background noise and feedback, even in high sound pressure level (SPL) environments, ensuring your voice stands out with precision.

The microphone's condenser element captures the full-bodied essence of your voice, while the robust and comfortable headband stays secure during even the most dynamic performances. The flexible gooseneck allows for easy positioning, and the shock-mounted microphone head reduces handling noise, preserving the integrity of your audio. For added convenience, the detachable cable with a threaded 2.5 mm plug ensures safe storage and transport, while the foam windscreen provides additional protection against wind noise.

Complementing the headworn microphone is the RE3-RX Diversity Receiver, a rack-mountable unit that serves as the control hub for your wireless setup. With diversity reception technology, the system minimizes the risk of signal dropouts by selecting the strongest signal from two separate antennas. The receiver's clear frequency scanning and wireless synchronization capabilities facilitate a hassle-free setup, automatically linking the transmitter to the receiver.

The receiver boasts a wide 36 MHz tuning bandwidth, allowing for flexible frequency selection and reliable multi-channel operation. The intuitive LCD display offers a clear view of settings and parameters, ensuring you're always in control of your audio experience.

The RE3-BPT Bodypack Transmitter, with its robust metal construction, is both discreet and durable. It's designed to be comfortably worn and concealed, making it perfect for a variety of professional applications. The transmitter features an ultrasonic sync function for quick frequency matching with the receiver, selectable output power for optimal range, and a generous tuning bandwidth to avoid interference.

The unique magnetic latch and lock mechanism ensures the battery compartment remains securely closed, while the recharging contacts are compatible with the optional BC2 charging station, allowing for convenient recharging of NiMH batteries.

In summary, the RE3-BPHW Wireless Bodypack System is a durable, reliable, and high-quality solution for anyone seeking advanced audio performance. With its professional features and clear sound, it stands out as the ideal choice for vocalists and presenters looking to elevate their wireless audio experience.

Electro-Voice RE3-BPHW Features

  • Professional supercardioid headworn microphone for clear vocal performance
  • RE3-RX Diversity Receiver with frequency scanning and sync for stable connectivity
  • RE3-BPT Bodypack Transmitter with robust metal build and easy frequency setup
  • Wide 36 MHz tuning bandwidth for flexible frequency selection and reliable operation
  • Comfortable, adjustable headband with flexible gooseneck for optimal microphone positioning
  • Magnetic latch and lock on transmitter for secure battery compartment closure

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with the bodypack transmitter's reliable wireless range on stage.
  • The headworn microphone's super cardioid pattern minimizes background noise, enhancing vocal clarity.
  • Achieve professional sound quality with a wide 30 Hz - 18 kHz frequency response for vocals.
  • Easily integrates into any setup with rack mounting hardware and versatile connectivity options.
  • Long-lasting battery life ensures uninterrupted performance during extended events and conferences.

What's in the box:

  • Electro-Voice RE3-ACC-HW3 Super Cardioid Headworn Microphone with TA4F Connector
  • RE3-RX Diversity Receiver
  • RE3-BPT Bodypack Transmitter with Antenna and Beltclip
  • 2x Receiver Antennas
  • Universal Power Supply
  • 2x AA Batteries
  • Receiver Rack Mounting Hardware
  • Cloth Drawstring Storage Pouch for Microphone- Foam Windscreen for Microphone- Owner's Manual
  • Documentation Packet
  • Electro-Voice 3 Year Limited Warranty
