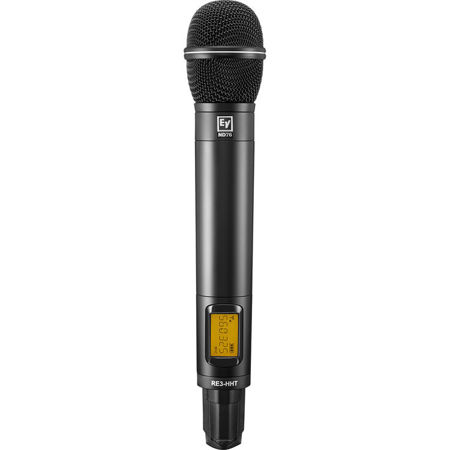

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with ND76-RC3 Super Cardioid Microphone Capsule Head, 488-524MHz

SKU: EVF01U354255 MFR: F.01U.354.255
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve reliable performance with a UHF wireless handheld transmitter operating at 488-524MHz.
  • Enjoy ease of use with intuitive LCD and LED displays for frequency selection.
  • Benefit from the ND76 super cardioid microphone capsule for clear vocal capture.
  • Optimize your performance with selectable 10/50 mW transmit output power settings.
  • Use the RE3-HHT wireless system for live performances, presentations, and more!
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-ND76 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response, close

    30 Hz-17 kHz

  • Frequency response, far

    70 Hz-17 kHz

  • Polar pattern

    Cardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Maximum SPL

    135.5 dB SPL (1% THD)

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    5L: 488 - 524 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.6 x 2" (91.44 x 50.80mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 6.5 oz (184.27g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898829

About Electro-Voice RE3-ND76

Become a master of live performances and presentations with the RE3-HHT UHF Wireless Handheld Transmitter, featuring the ND76 dynamic cardioid microphone head. This high-quality, professional-grade device from Electro-Voice is designed for versatile vocal applications, delivering crisp, clear, and balanced vocal presence that stands out in any setting.

The ND76-RC3 microphone head is a robust, high-performance, dynamic cardioid thread-on vocal microphone head, specifically designed for wireless handheld transmitters. It is compatible with Electro-Voice and many other brands' wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.

The microphone head's large Mylar diaphragm delivers a rich and detailed frequency response, combining a large surface area for tonal balance with low-mass high-velocity material for exceptionally fast transient response. The innovative capsule shock-mount system offers superior handling noise reduction, eliminating mechanical vibrations and noise in the mix.

The RE3-HHT UHF Wireless Handheld Transmitter is a durable, lightweight, and robust device, ideal for professional performance and presentation applications. It operates on a frequency range of 488-524 MHz, suitable for a wide range of applications. The transmitter pairs perfectly with the RE3-RX diversity receiver, and setup is quick and simple using the RE3 clear frequency scan and sync functions.

The transmitter's all-metal body is robust and durable, operating on 2 AA alkaline or rechargeable NiMH cells. The ultrasonic sync function simplifies system setup by syncing the transmitter to the receiver frequency tuning and other functional data. The selectable output power assists in overcoming the challenges of both long or short transmission ranges, and the generous tuning bandwidth helps to avoid various sources of possible interference.

The RE3-HHT UHF Wireless Handheld Transmitter with ND76-RC3 Super Cardioid Microphone Capsule Head is a reliable, versatile, and high-quality choice for all your vocal performance needs.

Electro-Voice RE3-ND76 Features

  • High-performance RE3-HHT UHF Wireless Handheld Transmitter for professional live performances and presentations
  • Features ND76 dynamic cardioid microphone head, delivering crisp, clear, & balanced vocal presence
  • Operates on a wide frequency range of 488-524 MHz, suitable for a variety of applications
  • Quick and simple setup with clear frequency scan and sync functions
  • Robust, all-metal body for durability, operating on 2 AA alkaline or rechargeable NiMH cells
  • Large Mylar diaphragm in microphone head for rich and detailed frequency response

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve reliable performance with a UHF wireless handheld transmitter operating at 488-524MHz.
  • Enjoy ease of use with intuitive LCD and LED displays for frequency selection.
  • Benefit from the ND76 super cardioid microphone capsule for clear vocal capture.
  • Optimize your performance with selectable 10/50 mW transmit output power settings.
  • Use the RE3-HHT wireless system for live performances, presentations, and more!

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • ND76-RC3 Wireless Head with ND76 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
