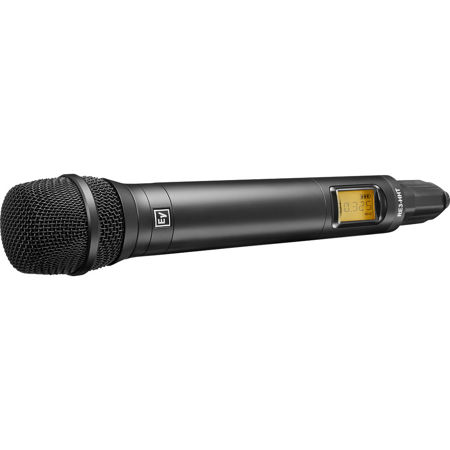

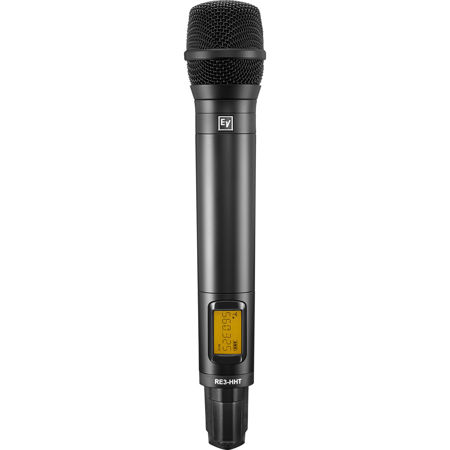

Electro-Voice RE3-HHT UHF Wireless Handheld Transmitter with RE420-RC3 Super Cardioid Microphone Capsule Head, 560-596MHz

SKU: EVF01U354263 MFR: F.01U.354.263
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve low latency and reliable performance with the RE3-HHT wireless transmitter.
  • Enjoy extended battery life, perfect for long events or performances with this microphone.
  • The RE420 super cardioid capsule ensures focused audio capture and reduces background noise.
  • This durable wireless microphone is built to withstand the rigors of live use and travel.
  • Easy to use interface allows quick setup, making it ideal for both pros and beginners.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE3-RE420 Specifications

Wireless Head with Mic Capsule

Wireless Head with Mic Capsule

Jump to...
  • Element type

    Dynamic neodymium magnet structure

  • Frequency response

    50 Hz-20 kHz

  • Polar pattern

    Cardioid

  • Sensitivity, open circuit volt at 1 kHz

    5.6 mV/Pascal (-45 dBV/Pa)

  • Clipping (Maximum SPL)

    137 dB SPL (1% THD)

  • Self noise

    22 dB SPL "A" weighed (0 dB=20 MuPa)

  • Dynamic range

    115 dB

  • Signal-to-Noise ratio

    72 dB

  • Impedance

    1000 ohms

  • Power requirements

    4-8 VDC

  • Polarity

    Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact

  • Electrical contact

    3-Ring/3-Pin

  • Threaded coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Finish

    Black polyurethane paint

  • Materials

    Aluminum, steel, steel wire grille screen

Handheld Transmitter

Jump to...
  • Frequency Oscillation Mode

    Phase-locked loop (PLL)

  • Bandwidth limits

    5H: 560 - 596 MHz

  • Tuning bandwidth

    36 MHz

  • Selectable frequencies

    1440

  • Transmit output power

    10 and 50 mW

  • Sync Frequency

    Ultrasonic

  • Display By

    LCD + LED

  • Function Controls

    Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock

  • RF Stability

    <+/-10kHz at Fc

  • Modulation Frequency Shift

    Wideband FM
    +/-48kHz deviation

  • Harmonic Radiation

    <-50dBc

  • Battery

    2 x AA alkaline battery or NiMH rechargeable battery

  • Charging Contacts

    Yes

  • Microphone Coupling

    1.25" (31.75mm) diameter
    28 UN-2A thread pitch

  • Microphone Electrical Contact

    3-ring/3-pin

  • Finish

    Black polyurethane paint

General

Jump to...
  • Dimensions

    Wireless Head with Mic Capsule (LxDia.): 3.36 x 1.95" (85.34 x 49.53mm)
    Handheld Transmitter (HxW): 7.52 x 1.46" (191.01 x 37.08mm) (Without Head and width at threaded end)
    Handheld Transmitter (HxW): 7.52 x 0.85" (191.01 x 21.59mm) (Without Head and width at Control Cover)

  • Weight

    Wireless Head with Mic Capsule: 4.6 oz (130.41g)
    Handheld Transmitter: 12.2 oz (345.86g)

  • UPC Code

    800549898904

About Electro-Voice RE3-RE420

What sets the RE3-HHT UHF Wireless Handheld Transmitter with RE420-RC3 Super Cardioid Microphone Capsule Head apart is its exceptional sound quality and versatility. This professional-grade audio equipment, crafted by the renowned brand Electro-Voice, is designed to deliver superior performance in a variety of settings, from live performances to presentations.

The RE3-HHT UHF Wireless Handheld Transmitter is a robust and reliable device, featuring a high-quality RE420 condenser cardioid microphone head. This microphone head is known for its rich, detailed, and full-bodied sound, providing a warm and clear low-end, natural and open midrange, and a clear, crisp, and detailed high end.

The transmitter is designed to pair seamlessly with the RE3-RX diversity receiver, ensuring rock-solid system performance. The setup process is quick and straightforward, thanks to the RE3 clear frequency scan and sync functions.

The RE420-RC3 microphone head is a premium-grade, high-performance, condenser cardioid thread-on vocal microphone head. It is designed to reveal exceptional detail and vivid clarity, delivering the lyrical finesse required for expressive vocal performances. The cardioid polar pattern provides excellent acoustic isolation and a comfortable working range, while the multi-stage pop filter minimizes breath blasts and plosives.

The RE3-HHT transmitter body is lightweight yet robust, making it ideal for professional performance and presentation applications. It features a sync function for easy frequency setup, selectable low and high output power, and a generous tuning bandwidth. The all-metal body is durable and operates on 2 AA alkaline or rechargeable NiMH cells.

The RE3-HHT UHF Wireless Handheld Transmitter with RE420-RC3 Super Cardioid Microphone Capsule Head is not just a piece of audio equipment; it's a tool for clear, high-quality, and reliable audio transmission. Whether you're a professional performer or a presenter, this device will ensure your voice is heard with clarity and precision.

Electro-Voice RE3-RE420 Features

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Common threaded coupling allows microphone head interchangeable

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Electro-Voice wireless microphone system.
  • Achieve low latency and reliable performance with the RE3-HHT wireless transmitter.
  • Enjoy extended battery life, perfect for long events or performances with this microphone.
  • The RE420 super cardioid capsule ensures focused audio capture and reduces background noise.
  • This durable wireless microphone is built to withstand the rigors of live use and travel.
  • Easy to use interface allows quick setup, making it ideal for both pros and beginners.

What's in the box:

  • Electro-Voice RE3-HHT Wireless Handheld Transmitter
  • RE420-RC3 Wireless Head with RE420 Capsule
  • Microphone Stand Adapter
  • 2x AA Batteries
  • Engineering Data Sheet
  • Electro-Voice 3 Year Limited Warranty
