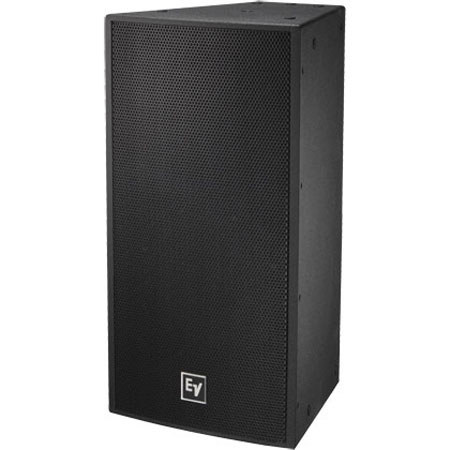

Electro-Voice EVF-1122D/94 12" 2-Way Full-range Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz Frequency, 90x40deg. Coverage, Single, Black

SKU: EVF1122D94BK MFR: F.01U.272.594
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve wide coverage with 90x40deg. dispersion, perfect for live sound reinforcement.
  • Enjoy powerful audio with 400W continuous power handling for demanding applications.
  • Rely on its durable birch enclosure, ideal for permanent install in various venues.
  • Ensure clear audio with a frequency response of 49-21000Hz for detailed sound reproduction.
  • Get flexible connectivity via Phoenix/Euroblock inputs for easy integration with systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/94 Specifications

  • Frequency Response (-3 dB)

    57 - 18000 Hz

  • Frequency Response (-10 dB)

    49 - 21000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    40 deg.

  • LF Transducer

    DVX3121A, 12" / 304.8mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Environmental

    Standard versions: IEC 60529 IP44

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

  • UPC Code

    00701001113835

About Electro-Voice EVF-1122D/94

While the Electro-Voice EVF-1122D/94 12" 2-Way Full-range Black Loudspeaker may appear simple in design, it is packed with advanced features that enhance your audio experience. This high-performance loudspeaker boasts a nominal impedance of 8 Ohms and a sensitivity of 97dB, ensuring clear, powerful sound output.

The full-range loudspeaker is equipped with a 12" driver, capable of delivering a wide frequency range of 49-21000Hz. This broad spectrum allows for the reproduction of both low and high-frequency sounds with exceptional clarity and precision, making it ideal for various audio applications.

One of the standout features of the EVF-1122D/94 is its 90x40 degree rotatable waveguide. This design element allows for medium field medium throw coverage pattern, providing versatile sound dispersion that can be adjusted to suit your specific needs.

Finished in a sleek black color, this single unit loudspeaker not only delivers superior sound quality but also adds a touch of elegance to your audio setup. Whether you're a professional sound engineer or an audiophile, the Electro-Voice EVF-1122D/94 12" 2-Way Full-range Black Loudspeaker is a reliable choice for high-quality sound reproduction.

Electro-Voice EVF-1122D/94 Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Achieve wide coverage with 90x40deg. dispersion, perfect for live sound reinforcement.
  • Enjoy powerful audio with 400W continuous power handling for demanding applications.
  • Rely on its durable birch enclosure, ideal for permanent install in various venues.
  • Ensure clear audio with a frequency response of 49-21000Hz for detailed sound reproduction.
  • Get flexible connectivity via Phoenix/Euroblock inputs for easy integration with systems.

What's in the box:

  • Electro-Voice EVF-1122D/94 12 " 2-Way Full-range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
