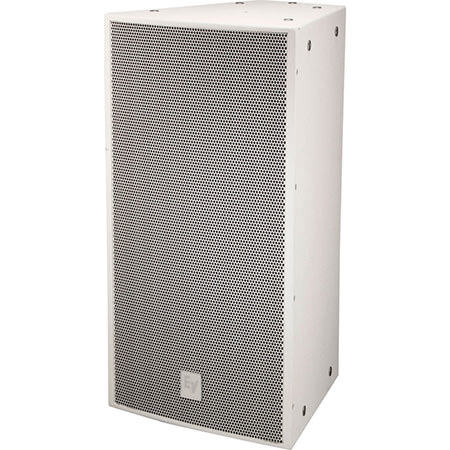

Electro-Voice EVF-1122D/94 12" 2-Way Full-range Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz Frequency, 90x40deg. Coverage, Single, White

SKU: EVF1122D94WH MFR: F.01U.272.595
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Enjoy wide, even coverage with the 90x40 degree dispersion of this PA speaker.
  • This durable PA system is perfect for live sound, delivering 400W continuous power.
  • Achieve crystal-clear audio with a frequency response of 49-21000 Hz in your sound system.
  • The robust birch enclosure ensures lasting durability for install speaker applications.
  • Get loud, clear audio with a sensitivity of 97dB, ideal for demanding PA applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/94 Specifications

  • Frequency Response (-3 dB)

    57 - 18000 Hz

  • Frequency Response (-10 dB)

    49 - 21000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    40 deg.

  • LF Transducer

    DVX3121A, 12" / 304.8mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Environmental

    Standard versions: IEC 60529 IP44

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/94

While the Electro-Voice EVF-1122D/94 12" 2-Way Full-range White Loudspeaker may appear simple in design, it is packed with advanced features that make it a standout in the audio equipment market. This high-performance loudspeaker boasts a nominal impedance of 8 Ohms, ensuring consistent, high-quality sound output. With a sensitivity of 97dB, it can deliver clear, powerful audio even at high volumes.

The EVF-1122D/94 operates within a broad frequency range of 49-21000Hz, accommodating a wide spectrum of sounds from deep bass notes to high-frequency tones. This makes it an ideal choice for music enthusiasts and professionals seeking a versatile, full-range loudspeaker.

One of the key features of this Electro-Voice loudspeaker is its 90x40 degree rotatable waveguide. This unique feature allows for medium field medium throw coverage pattern, providing an immersive audio experience by evenly distributing sound across the room.

Finished in a sleek white color, the EVF-1122D/94 12" 2-Way Full-range Loudspeaker not only delivers superior sound but also adds a touch of elegance to any setting. Whether you're setting up a home theater system or enhancing your professional audio setup, this Electro-Voice loudspeaker is designed to meet your high standards for sound quality and aesthetic appeal.

Electro-Voice EVF-1122D/94 Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range loudspeaker.
  • Enjoy wide, even coverage with the 90x40 degree dispersion of this PA speaker.
  • This durable PA system is perfect for live sound, delivering 400W continuous power.
  • Achieve crystal-clear audio with a frequency response of 49-21000 Hz in your sound system.
  • The robust birch enclosure ensures lasting durability for install speaker applications.
  • Get loud, clear audio with a sensitivity of 97dB, ideal for demanding PA applications.

What's in the box:

  • Electro-Voice EVF-1122D/94 12 " 2-Way Full-range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
