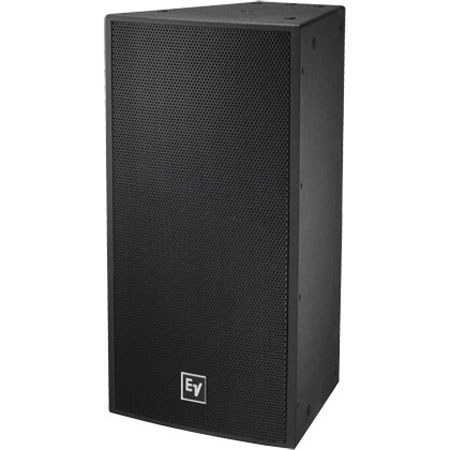

Electro-Voice EVF-1122D/96 12" 2-Way Full-range Loudspeaker, 8 Ohms Nominal Impedance, 97dB Sensitivity, 49-21000Hz Frequency, 90x60deg. Coverage, Single, Black

SKU: EVF1122D96BK MFR: F.01U.272.598
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • Achieve optimal audio coverage with 90x60 degree dispersion for your live sound setup.
  • This durable PA speaker is built with weather-resistant birch for lasting performance.
  • Enjoy powerful output with 400W continuous power handling for impactful sound reinforcement.
  • Ideal for installations, with multiple M10 threaded points for secure suspension.
  • Exceptional clarity with a frequency response of 49-21000Hz, perfect for any venue.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/96 Specifications

  • Frequency Response (-3 dB)

    57 - 18000 Hz

  • Frequency Response (-10 dB)

    49 - 21000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    97 dB

  • Max. SPL/1m (calc)

    131 dB

  • System Power Handling

    400 W continuous, 800 W program, 1600 W peak3

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    60 deg.

  • LF Transducer

    DVX3121A, 12" / 304.8mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Environmental

    Standard versions: IEC 60529 IP44

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 768.60 x 406.4 x 413.25mm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/96

Overwhelm your senses with the Electro-Voice EVF-1122D/96 12" 2-Way Full-range Loudspeaker, a high-performance audio device designed to deliver superior sound quality. This black loudspeaker is engineered with an 8 Ohms nominal impedance, ensuring a stable and consistent audio performance. With a sensitivity of 97dB, it guarantees a loud and clear output, making it ideal for various audio setups.

The EVF-1122D/96 boasts a wide frequency range of 49-21000Hz, delivering a full spectrum of sound, from deep, resonant bass to crystal-clear highs. This broad frequency response ensures that every note and nuance is captured and reproduced with exceptional clarity.

One of the standout features of this 2-way full-range loudspeaker is its 90x60 degree rotatable waveguide. This design allows for medium-near field medium throw coverage pattern, providing a wide sound dispersion area. This means you can enjoy a rich, immersive audio experience, no matter where you are in the room.

Crafted in a sleek black finish, the Electro-Voice EVF-1122D/96 not only delivers on performance but also adds a touch of elegance to your audio equipment setup. Whether you're a professional sound engineer or an audiophile, this 12" loudspeaker is a valuable addition to your sound system. Experience the power and precision of Electro-Voice technology with the EVF-1122D/96 12" 2-Way Full-range Loudspeaker.

Electro-Voice EVF-1122D/96 Features

  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • Achieve optimal audio coverage with 90x60 degree dispersion for your live sound setup.
  • This durable PA speaker is built with weather-resistant birch for lasting performance.
  • Enjoy powerful output with 400W continuous power handling for impactful sound reinforcement.
  • Ideal for installations, with multiple M10 threaded points for secure suspension.
  • Exceptional clarity with a frequency response of 49-21000Hz, perfect for any venue.

What's in the box:

  • Electro-Voice EVF-1122D/96 12 " 2-Way Full-range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
