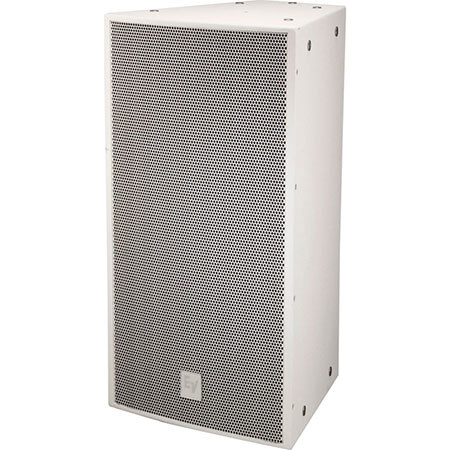

Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Weatherized Loudspeaker, 57Hz-18kHz Frequency Response, 97dB, 131dB SPL, 8 Ohms, Single, White

SKU: EVF1122D99PW MFR: F.01U.272.605
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events and installations; IP55 rated.
  • Enjoy wide, even coverage with the 90 x 90 degree rotatable coverage pattern.
  • Get powerful, clear audio with 600W continuous power handling for live sound.
  • Durable birch enclosure ensures long-lasting performance for your PA system setup.
  • Versatile connectivity with Phoenix/Euro Block screw-terminals for easy setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122D/99PI Specifications

  • Frequency Response

    -3dB: 57Hz-18kHz
    -10dB: 49Hz-21kHz

  • Rotatable Coverage

    90 deg. x 90 deg.

  • Rec. High-Pass Frequency

    65Hz

  • Passive Crossover Frequency

    1300 Hz

  • Axial Sensitivity

    97dB (1 W/1 m)
    LF: 98dB (1 W/1 m)
    HF: 111dB (1 W/1 m)

  • SPL

    131dB (Max.)
    LF: 131dB (Max.)
    HF: 136dB (Max.)

  • Power Handling

    Passive: 600W continuous, 2400W peak
    LF: 500W continuous, 2000W peak
    HF: 75W continuous, 300W peak

  • Impedance

    8 Ohms (nominal), 6.0 Ohms (min.)
    LF: 8 Ohms (nominal), 7.2 Ohms (min.)
    HF: 8 Ohms (nominal), 6.0 Ohms (min.)

  • Connectors

    Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
    PI Version - CDG dual gland-nut input panelcover included

  • Enclosure

    13-ply weather-resistant birch with fiberglass finish

  • Grille

    16 GA powder-coated galvanneal with rotatable logo
    PI Version - Stainless steel with hydrophobic cloth

  • Environmental

    IEC 60529 IP55 for PI version

  • Suspension

    (22) M10 threaded suspension points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    65.5lbs / 29.71kg

About Electro-Voice EVF-1122D/99PI

If you're seeking a compact, lightweight, yet powerful audio solution, the Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Weatherized Loudspeaker System is your ideal choice. Engineered for high-quality sound reinforcement, this professional-grade loudspeaker is perfect for a multitude of applications, from live performances to large-scale events.

The EVF-1122D/99 is equipped with the DH7N, a high-output 3" titanium compression driver, paired with a Constant Directivity 90-degree x 90-degree waveguide. This combination ensures a broad and consistent sound coverage. The DVX3121A 12" woofer, developed using advanced FEA optimization for motor, suspension, and electrical design, guarantees low distortion, high efficiency, and maximum intelligibility even at high SPLs.

The crossover in this loudspeaker utilizes steep, 24-dB-per-octave slopes with equalization, delivering a smooth response in the vocal range and linear off-axis response. A built-in protection circuit ensures long-term reliability, making this loudspeaker a durable and reliable choice.

The EVF-1122D/99's trapezoidal enclosure is constructed of weather-resistant birch and coated with EVCoat, offering maximum protection against the elements. This makes it suitable for both indoor and outdoor events. Its unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series.

With seven horn patterns to choose from, and an assortment of low-frequency and subwoofer loudspeakers, the EVF-1122D/99 offers maximum flexibility of system design to suit any application and budget. The innovative input panel provides a choice of Phoenix style connector or the option to add a dual NL4-type connector cover plate or gland-nut cover plate for weatherizing applications. An externally accessible jumper selects passive or active operation, and an optional 70.7/100-V transformer kit can be easily mounted to the input panel for use in distributed systems.

In summary, the Electro-Voice EVF-1122D/99 12" 2-Way 90 x 90 Full-Range Weatherized Loudspeaker System is a versatile, high-performance audio solution that delivers exceptional sound quality, durability, and flexibility.

Electro-Voice EVF-1122D/99PI Features

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events and installations; IP55 rated.
  • Enjoy wide, even coverage with the 90 x 90 degree rotatable coverage pattern.
  • Get powerful, clear audio with 600W continuous power handling for live sound.
  • Durable birch enclosure ensures long-lasting performance for your PA system setup.
  • Versatile connectivity with Phoenix/Euro Block screw-terminals for easy setup.

What's in the box:

  • Electro-Voice EVF-1122D/99 12 " 2-Way 90 x 90 Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
