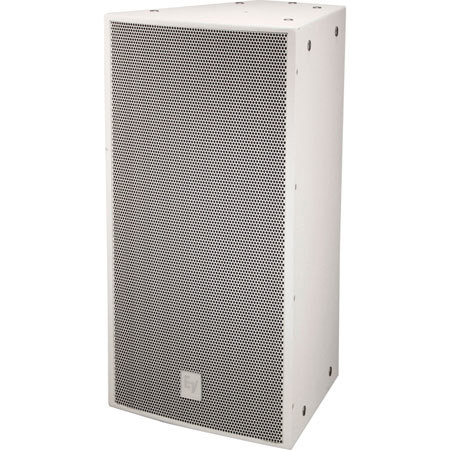

Electro-Voice EVF-1122S/66 12" 2-Way 60 x 60 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, White

SKU: EVF1122S66FW MFR: F.01U.272.914
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • This durable PA speaker is perfect for permanent installations, indoors or outdoors.
  • Achieve powerful audio output with 500W continuous power handling for live sound.
  • Enjoy wide sound dispersion thanks to the 60 x 60 coverage of this PA speaker.
  • Rugged birch enclosure ensures long-lasting durability for demanding PA applications.
  • Get crystal-clear sound with a wide frequency response, ideal for any PA system setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S/66FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    60 deg.

  • Coverage (Nominal -6 dB) V

    60 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

About Electro-Voice EVF-1122S/66FB

Become an audio master with the Electro-Voice EVF-1122S/66 12" 2-Way 60 x 60 Full-Range Fiberglass White Loudspeaker. This high-quality, stylish, and durable loudspeaker is crafted from weather-resistant birch and coated with the robust EVCoat, ensuring maximum protection from harsh environmental conditions.

The EVF-1122S/66 is not just a loudspeaker, but a powerful tool for creating immersive sound experiences. Its unique acoustic and rigging designs enable the construction of vertical and horizontal clusters using any combination of loudspeakers. This flexibility allows for tailored system design to suit any application or budget, making it a reliable choice for professional audio setups.

This full-range loudspeaker boasts a wide frequency response range of 58Hz-16kHz, a high sensitivity of 98dB, and a remarkable sound pressure level (SPL) of 131dB. These features make it an ideal choice for live performances, concerts, festivals, and other large-scale events, delivering powerful, high-quality sound that reaches every corner of your venue.

The EVF-1122S/66 also features innovative input panels that offer the choice of Phoenix-type connectors, included in all standard models, or the addition of a dual NL4-type connector cover plate or gland nut cover plate for weatherizing applications. An externally accessible jumper allows for the selection of passive or active operation, and an available 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

With the Electro-Voice EVF-1122S/66 12" 2-Way 60 x 60 Full-Range Fiberglass White Loudspeaker, you gain the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements. Experience the power and versatility of this exceptional loudspeaker, designed to elevate your audio performance to new heights.

Electro-Voice EVF-1122S/66FB Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • This durable PA speaker is perfect for permanent installations, indoors or outdoors.
  • Achieve powerful audio output with 500W continuous power handling for live sound.
  • Enjoy wide sound dispersion thanks to the 60 x 60 coverage of this PA speaker.
  • Rugged birch enclosure ensures long-lasting durability for demanding PA applications.
  • Get crystal-clear sound with a wide frequency response, ideal for any PA system setup.

What's in the box:

  • Electro-Voice EVF-1122S/66 12 " 2-Way 60 x 60 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
