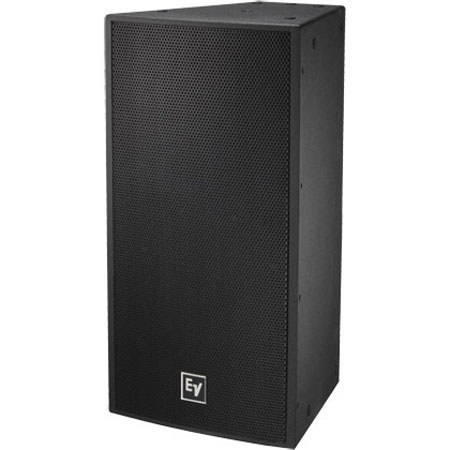

Electro-Voice EVF-1122S 66 12" Two-Way Full-Range Loudspeaker, 60x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Pi-Weatherized, Single, Black

SKU: EVF1122S66PB MFR: F.01U.272.500
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve wide, even coverage with the 60x60 degree dispersion of this speaker.
  • Enjoy powerful audio performance with 500W continuous power handling.
  • This durable PA speaker is weather-resistant for indoor/outdoor use.
  • Get crystal-clear highs from the 2" diaphragm compression driver.
  • Easily integrate this 8-ohm impedance speaker into your existing PA system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 66PI Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 60 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 66PI

Explore the exceptional sound quality and versatility of the EVF-1122S 66 12" Two-Way Full-Range Pi-Weatherized Black Loudspeaker. Crafted from durable, weather-resistant birch and fortified with a protective EVCoat layer, this professional-grade loudspeaker is designed to withstand the elements, making it an ideal choice for both indoor and outdoor events.

The unique acoustic and rigging design of this high-quality loudspeaker allows for the creation of vertical and horizontal clusters using any combination of loudspeakers. This feature, coupled with a wide 60x60 degree coverage pattern, ensures comprehensive sound distribution, making it an excellent choice for large venues and events.

The EVF-1122S 66 12" Two-Way Full-Range Loudspeaker is not just sturdy and reliable, but also flexible in its application. It boasts an innovative input panel that offers the choice of Phoenix-type connectors or the easy addition of a dual NL4-type connector cover plate or gland nut cover plate, perfect for weatherizing applications.

Additionally, this loudspeaker features an externally accessible jumper for selecting passive or active operation. For use in distributed systems, an available 70.7/100V transformer kit can be conveniently mounted to the input panel. These features collectively contribute to the flexibility of the EVF-1122S, enabling it to cater to a wide range of customer requirements and venue types with less equipment.

Experience the power of 98dB sensitivity, which ensures clear and powerful sound even at low volume levels. With the EVF-1122S 66 12" Two-Way Full-Range Loudspeaker, you can maximize your system design flexibility without compromising on sound quality or durability.

Electro-Voice EVF-1122S 66PI Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve wide, even coverage with the 60x60 degree dispersion of this speaker.
  • Enjoy powerful audio performance with 500W continuous power handling.
  • This durable PA speaker is weather-resistant for indoor/outdoor use.
  • Get crystal-clear highs from the 2" diaphragm compression driver.
  • Easily integrate this 8-ohm impedance speaker into your existing PA system.

What's in the box:

  • Electro-Voice EVF-1122S 66 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
