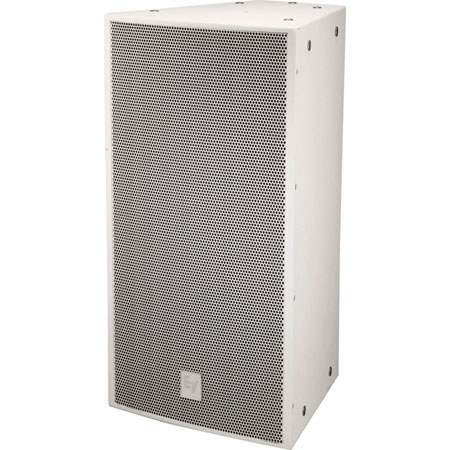

Electro-Voice EVF-1122S 66 12" Two-Way Full-Range Loudspeaker, 60x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Pi-Weatherized, Single, White

SKU: EVF1122S66PW MFR: F.01U.272.501
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve optimal audio coverage with the 60x60 degree dispersion pattern.
  • Enjoy long-lasting durability with the weather-resistant birch enclosure.
  • This passive PA speaker handles up to 500W continuous power for robust sound.
  • Get flexible setup options with 22 M10 threaded suspension points.
  • The EVF-1122S ensures high sensitivity, delivering powerful, clear audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 66PI Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 60 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 66PI

Why settle for anything less than professional-grade audio quality for your live performances and events The EVF-1122S 66 12" Two-Way Full-Range Loudspeaker, finished in a sleek white and engineered by the renowned Electro-Voice brand, delivers unparalleled sound fidelity and coverage. This high-quality loudspeaker boasts a precise 60x60-degree coverage pattern, ensuring that every corner of your venue is enveloped in crisp, clear audio.

Crafted with durability in mind, the EVF-1122S 66 is constructed from robust, weather-resistant birch plywood and is coated with the proprietary EVCoat, offering maximum protection against the harshest elements. This makes it an ideal choice for both indoor and outdoor applications, where reliability and longevity are paramount.

With a high sensitivity rating of 98dB and an 8 Ohms impedance, this loudspeaker is capable of handling a wide range of sound levels, producing consistent, high-definition audio that can bring your events to life. The innovative design allows for flexible rigging options, enabling vertical and horizontal clustering with an assortment of full-range, low-frequency, and subwoofer loudspeakers from the EVF series. This versatility ensures that system design can be tailored to the specific needs of any venue, regardless of size or budget constraints.

The EVF-1122S 66 also features an advanced input panel that offers the choice of Phoenix-type connectors or the option to add a dual NL4-type connector cover plate or gland nut cover plate, perfect for Pi-Weatherized scenarios. An externally accessible jumper allows for quick selection between passive or active operation, and for those requiring a distributed system, an available 70.7/100V transformer kit can be easily mounted to the input panel.

In summary, the EVF-1122S 66 12" Two-Way Full-Range Loudspeaker is a testament to Electro-Voice's commitment to innovative, high-quality, and professional audio solutions. It provides the flexibility and performance needed to manage a diverse range of venues with fewer pieces of equipment, while swiftly and accurately meeting the demands of any customer. Whether for live performances, corporate events, or large-scale installations, this loudspeaker is designed to exceed expectations and deliver exceptional sound.

Electro-Voice EVF-1122S 66PI Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve optimal audio coverage with the 60x60 degree dispersion pattern.
  • Enjoy long-lasting durability with the weather-resistant birch enclosure.
  • This passive PA speaker handles up to 500W continuous power for robust sound.
  • Get flexible setup options with 22 M10 threaded suspension points.
  • The EVF-1122S ensures high sensitivity, delivering powerful, clear audio.

What's in the box:

  • Electro-Voice EVF-1122S 66 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
