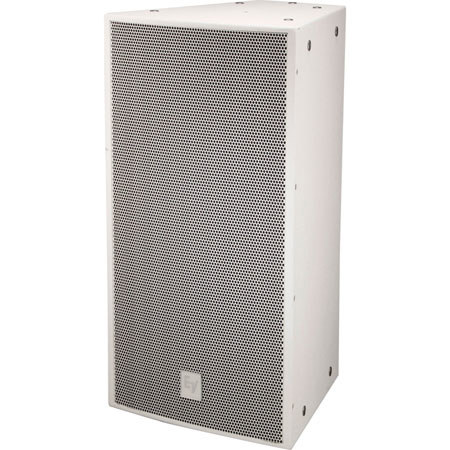

Electro-Voice EVF-1122S 66 12" Two-Way Full-Range Loudspeaker, 60x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, White

SKU: EVF1122S66WH MFR: F.01U.272.499
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This passive PA speaker's 500W power output ensures clear audio for any venue.
  • Durable birch enclosure makes this PA speaker perfect for indoor/outdoor events.
  • Enjoy wide, even sound coverage with the 60x60 degree dispersion pattern.
  • Versatile PA speaker ideal for live music, public address, and installed sound.
  • Get crystal-clear highs from the 2" compression driver in this PA loudspeaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 66 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 60 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 66

Why settle for less when you can experience superior sound quality with the EVF-1122S 66 12" Two-Way Full-Range Loudspeaker in white Crafted from durable, weather-resistant birch and fortified with a protective EVCoat, this high-quality loudspeaker is designed to withstand the elements, making it a reliable choice for both indoor and outdoor events.

The innovative design of the EVF series allows for the construction of vertical and horizontal clusters using any combination of loudspeakers. This flexibility in system design, coupled with a diverse range of full-range, low-frequency, and subwoofer loudspeakers, ensures that the EVF-1122S can adapt to any application, regardless of your budget.

The EVF-1122S stands out with its unique input panels, offering the choice of Phoenix-type connectors. It also allows for the easy addition of a dual NL4-type connector cover plate or gland nut cover plate, making it ideal for weatherizing applications. An externally accessible jumper further enhances its versatility by enabling the selection of passive or active operation.

For those requiring use in distributed systems, an available 70.7/100V transformer kit can be simply mounted to the input panel. This professional-grade loudspeaker is designed to manage more venues with less equipment, quickly and precisely addressing customer requirements.

Experience the high sensitivity of 98dB and a wide 60x60deg coverage pattern, which ensures clear, high-quality sound even at high sound pressure levels. Whether you're hosting a concert, festival, or any event with a large crowd, the EVF-1122S 66 12" Two-Way Full-Range Loudspeaker delivers consistent sound quality across a large area. Trust in the EVF-1122S for a durable, reliable, and innovative solution to your audio needs.

Electro-Voice EVF-1122S 66 Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This passive PA speaker's 500W power output ensures clear audio for any venue.
  • Durable birch enclosure makes this PA speaker perfect for indoor/outdoor events.
  • Enjoy wide, even sound coverage with the 60x60 degree dispersion pattern.
  • Versatile PA speaker ideal for live music, public address, and installed sound.
  • Get crystal-clear highs from the 2" compression driver in this PA loudspeaker.

What's in the box:

  • Electro-Voice EVF-1122S 66 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
