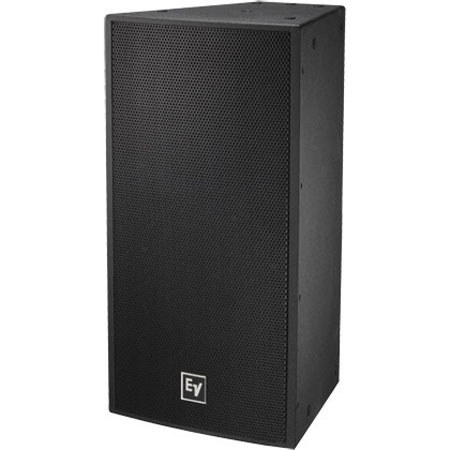

Electro-Voice EVF-1122S 94 12" Two-Way Full-Range Loudspeaker, 90x40deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, Pi-Weatherized, Black

SKU: EVF1122S94PB MFR: F.01U.272.504
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve optimal coverage with the 90x40 degree dispersion of this PA speaker.
  • Enjoy high sensitivity (98dB) for clear audio, even at a distance with this speaker.
  • Rely on rugged durability with the weather-resistant birch enclosure of this speaker.
  • Get powerful performance with 500W continuous power handling in this PA speaker.
  • Easily install this PA speaker with its M10 threaded suspension points.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 94PI Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 90 deg.
    V: 40 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

About Electro-Voice EVF-1122S 94PI

Why settle for less when you can experience superior sound quality with the EVF-1122S 94 12" Two-Way Full-Range Pi-Weatherized Black Loudspeaker Crafted by the renowned brand Electro-Voice, this high-performance loudspeaker is designed to deliver powerful and clear sound, making it an ideal choice for live sound applications such as concerts, festivals, and large-scale events.

Constructed from weather-resistant birch and fortified with a durable EVCoat, this loudspeaker is built to withstand the elements, ensuring longevity and consistent performance. Its unique acoustic and rigging design allows for the creation of vertical and horizontal clusters using any combination of loudspeakers, offering unparalleled flexibility in system design to suit any application or budget.

The EVF-1122S 94 12" Two-Way Full-Range Loudspeaker boasts a high sensitivity of 98dB, ensuring clear sound production even at low volume levels. Its 90x40 degree coverage pattern ensures wide sound dispersion, making it perfect for large venues.

Equipped with innovative input panels, this loudspeaker offers the choice of Phoenix-type connectors, or the easy addition of a dual NL4-type connector cover plate or gland nut cover plate, catering to weatherizing applications. An externally accessible jumper allows for the selection of passive or active operation, and an optional 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

In essence, the EVF-1122S 94 12" Two-Way Full-Range Pi-Weatherized Black Loudspeaker provides the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements. Experience the power of high-quality sound with this reliable and stylish loudspeaker.

Electro-Voice EVF-1122S 94PI Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • Achieve optimal coverage with the 90x40 degree dispersion of this PA speaker.
  • Enjoy high sensitivity (98dB) for clear audio, even at a distance with this speaker.
  • Rely on rugged durability with the weather-resistant birch enclosure of this speaker.
  • Get powerful performance with 500W continuous power handling in this PA speaker.
  • Easily install this PA speaker with its M10 threaded suspension points.

What's in the box:

  • Electro-Voice EVF-1122S 94 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
