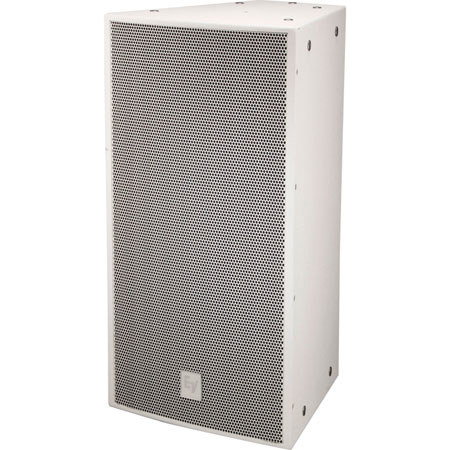

Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass Loudspeaker, 58Hz-16kHz, 98dB Sensitivity, 131dB SPL, 8 Ohms, Single, White

SKU: EVF1122S96FW MFR: F.01U.272.918
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • Achieve exceptional clarity for live sound, vocals, and music with a 58Hz-16kHz response.
  • This durable PA speaker delivers powerful output with 500W continuous power handling.
  • Enjoy wide sound coverage with a 90 x 60 degree dispersion, great for venues.
  • Built tough: Weather-resistant birch enclosure ensures lasting durability for any event.
  • Install with ease using M10 threaded points; perfect for permanent PA system setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S/96FB Specifications

  • Environmental Specs

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3dB: 58Hz-16kHz
    -10dB: 49Hz-19kHz

  • Recommended High-Pass Frequency

    65Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    60 deg.

  • System Power Handling

    Continuous/Program/Peak: 500/1000/2000W

  • LF Transducer

    SMX2121, 12" / 304.8mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm) Diaphragm Compression Driver

  • Crossover Frequency

    1450 Hz

  • Nominal Impedance (Passive)

    8Ohms

  • Minimum Impedance

    6Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with Rotatable Logo

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 16 x 16.27" / 76.86 x 40.64 x 41.33cm

  • Weight

    63.05lbs / 28.6kg

About Electro-Voice EVF-1122S/96FB

From professional audio setups to high-end home entertainment systems, the Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass White Loudspeaker is a versatile and robust solution. Crafted from weather-resistant birch and fortified with EVCoat, this loudspeaker offers unparalleled durability, even in challenging environmental conditions.

The unique acoustic and rigging designs of this full-range loudspeaker facilitate the creation of vertical and horizontal clusters, using any combination of loudspeakers. This flexibility allows for custom system design tailored to any application or budget, making it a valuable asset for both professional sound engineers and audio enthusiasts.

The EVF-1122S/96 features an innovative input panel that accommodates Phoenix-type connectors, included in all standard models. For enhanced versatility, it also supports the addition of a dual NL4-type connector cover plate or a gland nut cover plate, ideal for weatherizing applications.

This 12" 2-Way loudspeaker also boasts an externally accessible jumper for easy selection between passive or active operation. For those requiring a distributed system, an optional 70.7/100V transformer kit can be conveniently mounted to the input panel.

With a frequency range of 58Hz-16kHz, a sensitivity of 98dB, and a maximum SPL of 131dB, the Electro-Voice EVF-1122S/96 delivers high-quality sound performance. Its 8 Ohms impedance ensures compatibility with a wide range of audio equipment.

In summary, the Electro-Voice EVF-1122S/96 12" 2-Way 90 x 60 Full-Range Fiberglass White Loudspeaker is a versatile, durable, and high-performing audio solution, designed to meet the diverse needs of any sound system setup.

Electro-Voice EVF-1122S/96FB Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60deg. to 120deg
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" full-range PA speaker.
  • Achieve exceptional clarity for live sound, vocals, and music with a 58Hz-16kHz response.
  • This durable PA speaker delivers powerful output with 500W continuous power handling.
  • Enjoy wide sound coverage with a 90 x 60 degree dispersion, great for venues.
  • Built tough: Weather-resistant birch enclosure ensures lasting durability for any event.
  • Install with ease using M10 threaded points; perfect for permanent PA system setups.

What's in the box:

  • Electro-Voice EVF-1122S/96 12 " 2-Way 90 x 60 Full-Range Fiberglass Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
