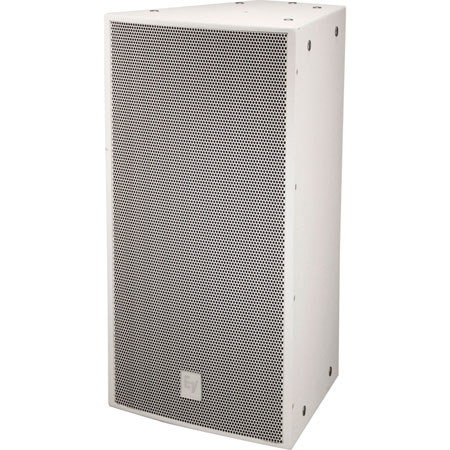

Electro-Voice EVF-1122S 99 12" Two-Way Full-Range Loudspeaker, 90x90deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, White

SKU: EVF1122S99WH MFR: F.01U.272.511
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This passive PA speaker offers a wide 90x90 degree coverage pattern.
  • Get powerful audio with 500W continuous power handling for live sound.
  • Durable birch enclosure ensures years of reliable performance of your PA speakers.
  • Ideal for installations, this PA speaker features 22 M10 suspension points.
  • Enjoy high sensitivity (98dB) for clear, impactful sound in any venue.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 99 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 90 deg.
    V: 90 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

  • UPC Code

    00800549698832

About Electro-Voice EVF-1122S 99

From professional audio setups to high-end home entertainment systems, the EVF-1122S 99 12" Two-Way Full-Range White Loudspeaker is a versatile and powerful addition to any sound system. This premium loudspeaker boasts a 90-degree x 90-degree rotatable waveguide, specifically designed to deliver a wide spread coverage pattern for near-field applications.

Constructed from weather-resistant birch and fortified with a protective EVCoat, this loudspeaker is built to withstand the elements, making it a reliable choice for both indoor and outdoor audio setups. The unique acoustic and rigging designs of the EVF series allow for the creation of vertical and horizontal clusters using any combination of loudspeakers, offering unparalleled flexibility in system design.

The EVF-1122S 99 12" Two-Way Full-Range White Loudspeaker is part of a comprehensive range that includes full-range, low-frequency, and subwoofer loudspeakers. This extensive selection provides the tools to customize your audio system to your specific needs and budget.

The innovative input panels of this loudspeaker offer the choice of Phoenix-type connectors or the easy addition of a dual NL4-type connector cover plate or gland nut cover plate, making it suitable for weatherizing applications. An externally accessible jumper allows for the selection of passive or active operation, and an available 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.

In summary, the EVF-1122S 99 12" Two-Way Full-Range White Loudspeaker is a versatile, durable, and high-performing audio solution, designed to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Electro-Voice EVF-1122S 99 Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 12" PA speaker.
  • This passive PA speaker offers a wide 90x90 degree coverage pattern.
  • Get powerful audio with 500W continuous power handling for live sound.
  • Durable birch enclosure ensures years of reliable performance of your PA speakers.
  • Ideal for installations, this PA speaker features 22 M10 suspension points.
  • Enjoy high sensitivity (98dB) for clear, impactful sound in any venue.

What's in the box:

  • Electro-Voice EVF-1122S 99 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
