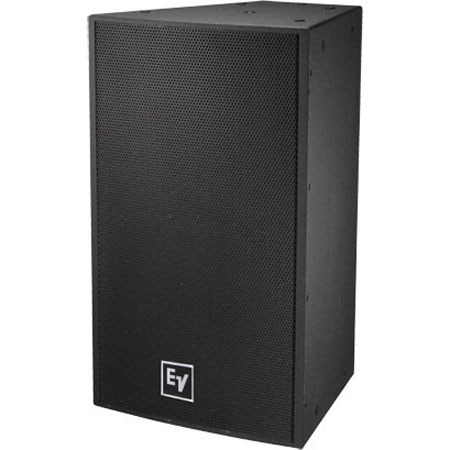

Electro-Voice EVF-1152S/64 15" 2-Way Full-Range PI-Weatherized Loudspeaker, 60x40deg., 2000W Peak, 8 Ohms Impedance, 101dB Sensitivity, 41Hz-18kHz, Single, Black

SKU: EVF1152S64PB MFR: F.01U.272.524
Earn VIP Reward Points

Key Features

  • Experience powerful, full-range audio with this 15" PA speaker, perfect for live sound.
  • This weatherized PA loudspeaker delivers exceptional sound quality, rain or shine!
  • Achieve peak performance with 2000W power, ensuring clear audio even at high volumes.
  • Enjoy wide sound dispersion (60x40 degrees) from this PA speaker for optimal coverage.
  • Built tough with a birch enclosure & steel grille, this PA speaker offers lasting durability.
  • Ideal for permanent installations, this PA speaker delivers high SPL with 101dB sensitivity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152S/64 Specifications

  • Frequency Response (-3 dB)

    70 Hz - 14 kHz

  • Frequency Range (-10 dB)

    41 Hz - 18 kHz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    101 dB (1W/1m)

  • Max. Calculated SPL

    134 dB

  • Horizontal Coverage

    60 deg. (or 40 deg. )

  • Vertical Coverage

    40 deg. (or 60 deg. )

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2151, 15" / 381mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm Diaphragm Compression Driver

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    Gland Nut with Included Input Panel Cover

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Stainless Steel with Hydrophobic Cloth

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    70.9lbs / 32.16kg

About Electro-Voice EVF-1152S/64

The Electro-Voice EVF-1152S/64 15" 2-Way Full-Range PI-Weatherized Black Loudspeaker can be used in a variety of applications where high quality sound reinforcement is required in a compact, lightweight package. The EVF-1152S/64 utilizes the ND2B, a high output 2" titanium compression driver, coupled to a Constant Directivity 60deg. X 40deg. waveguide. The SMX2151 15" woofer used FEA optimization for motor, suspension and electrical design for very low distortion, high efficiency and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, linear off-axis response and a protection circuit for long term reliability. The EVF-1152S/64 features make it ideal for many fixed install applications.

The trapezoidal enclosure is constructed out of weather resistant birch and coated with EVCoat for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides choice of phoenix style connector (included in all standard models) or the ability to add; a dual NL4 type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues with fewer items in inventory and quickly support your customer's requirements.

Electro-Voice EVF-1152S/64 Features

  • ND2B 2" diaphragm and 1.4" exit pure titanium compression driver
  • SMX2151 15" LF transducer with a fully symmetric drive
  • Fourth-order crossover network with HF protection
  • Coverage pattern 60 Degree x 40 Degree and constant directivity 12" rotatable waveguide
  • 101 dB sensitivity and 134 dB maximum SPL
  • Twenty-two M10 threaded suspension points
  • Comes with a Phoenix-style connector

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful, full-range audio with this 15" PA speaker, perfect for live sound.
  • This weatherized PA loudspeaker delivers exceptional sound quality, rain or shine!
  • Achieve peak performance with 2000W power, ensuring clear audio even at high volumes.
  • Enjoy wide sound dispersion (60x40 degrees) from this PA speaker for optimal coverage.
  • Built tough with a birch enclosure & steel grille, this PA speaker offers lasting durability.
  • Ideal for permanent installations, this PA speaker delivers high SPL with 101dB sensitivity.

What's in the box:

  • Electro-Voice EVF-1152S/64 15 " 2-Way Full-Range PI-Weatherized Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
