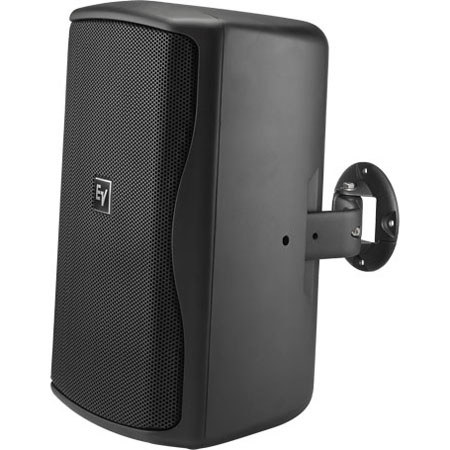

Electro-Voice ZX1i-100 2-Way 8" 200W In/Outdoor Weatherized Installation Speaker, 100x100deg., 60Hz-20kHz, 4-pin Phoenix Connector, DH2005 1" Driver, Single, Black

SKU: EVZX1I100 MFR: F.01U.265.577
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker system.
  • This weatherized installation speaker is perfect for indoor or outdoor use; durable build.
  • Achieve optimal audio with a wide frequency response of 60 Hz - 20 kHz for live sound.
  • Enjoy flexible setup with the QuickSAM mounting bracket for easy, secure placement.
  • Project clear audio with 200W continuous power, ideal for small to medium venues.
  • Get wide sound coverage with 100x100 degree dispersion from this PA speaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice ZX1i-100 Specifications

  • Frequency Response (-3dB)

    60 Hz - 20 kHz

  • Frequency Response (-10dB)

    48 Hz - 20 kHz

  • Recommended High-Pass Frequency

    40Hz

  • Axial Sensitivity

    92 dB (1W/1m)

  • Maximum Calculated SPL

    121 dB

  • Horizontal Coverage

    100 deg.

  • Vertical Coverage

    100 deg.

  • Enclosure Rotation

    +/-35 deg.

  • Enclosure Sweep

    +/-45 deg.

  • Rated System Power

    200W continuous
    400W Program
    800W Peak

  • LF Transducer

    EV8L, 8 in (203mm) Driver

  • HF Transducer

    DH2005, 1 in. (25.4mm) Exit Compression Driver

  • Crossover Frequency

    1.7kHz

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohm

  • Overload Protection

    Full protection

  • Connector

    4-pin Phoenix

  • Enclosure Material

    High Impact Polystyrene

  • Suspension

    Integrated QuickSAM Heavy duty strong arm mountong bracket

  • Grill

    Polyester Powder Coated, 18GA Galvanized Steel

  • Dimensions (H x W x D)

    17.75 x 11.12 x 10.35" / 451 x 282.44 x 263mm

  • Weight

    Without Transformer: 8.4kg / 18.51lbs
    With Transformer: 10.4kg / 22.92lbs

About Electro-Voice ZX1i-100

After meticulous design and engineering, the Electro-Voice ZX1i-100 emerges as a paradigm of audio excellence and adaptability, encapsulated in a compact, easy-to-install sound reinforcement package ideal for both indoor and outdoor environments. Crafted with an injection-molded high-impact polypropylene enclosure, the ZX1i-100 stands as a testament to durability, ensuring that it can withstand the rigors of any setting while maintaining its stylish appearance.

The speaker's enclosure is not only robust but also acoustically optimized for maximum rigidity and performance, delivering powerful and high-quality sound that belies its size. The innovative velocity compensated port design significantly enhances the low-frequency response, providing deep and clear bass without the common vent noise issues found in smaller cabinet loudspeakers.

Installation of the ZX1i-100 is a breeze, thanks to the included QuickSAM mounting system. This unique, integrated bracket is virtually foolproof, allowing for quick and secure speaker attachment and precise positioning, making it a reliable choice for professionals and enthusiasts alike.

The ZX1i-100 features an advanced crossover network that seamlessly blends the output of the long-excursion, high-output 8" woofer with a weatherized treated cone, and the DH2005, a 1" true compression driver. This combination ensures smooth low-frequency performance and extended high-frequency response, resulting in a rich and balanced sonic experience.

For added versatility, the 100x100 degree horn provides broad, even dispersion, essential for many distributed audio applications. The rotatable horn design allows the ZX1i-100 cabinet to be oriented horizontally or vertically, offering unparalleled design flexibility to suit any space or aesthetic requirement.

The speaker's molded polymer enclosure is inherently resistant to the elements, and with the addition of a multilayer grille with hydrophobic cloth and weatherized components, the ZX1i-100 is capable of performing consistently in a variety of environmental conditions. Full-bandwidth overload protection ensures reliable, long-term operation without compromising audio quality.

In summary, the Electro-Voice ZX1i-100 is a stylish, durable, and powerful speaker that provides reliable, high-quality sound for any indoor or outdoor installation. Its weatherized construction, coupled with superior audio technology, makes it an ideal choice for those seeking a professional-grade audio solution that can endure and excel in any environment.

Electro-Voice ZX1i-100 Features

  • 8" Woofer, 1.25" Titanium HF Driver
  • 60 Hz to 20 kHz Frequency Response
  • 200W Continuous Power Handling
  • Indoor/Outdoor Sound Reinforcement

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker system.
  • This weatherized installation speaker is perfect for indoor or outdoor use; durable build.
  • Achieve optimal audio with a wide frequency response of 60 Hz - 20 kHz for live sound.
  • Enjoy flexible setup with the QuickSAM mounting bracket for easy, secure placement.
  • Project clear audio with 200W continuous power, ideal for small to medium venues.
  • Get wide sound coverage with 100x100 degree dispersion from this PA speaker.

What's in the box:

  • Electro-Voice ZX1i-100 2-Way 200W 8 " In/Outdoor Installation Speaker
  • QuickSAM Mount
  • Electro-Voice 5 Year Limited Warranty
