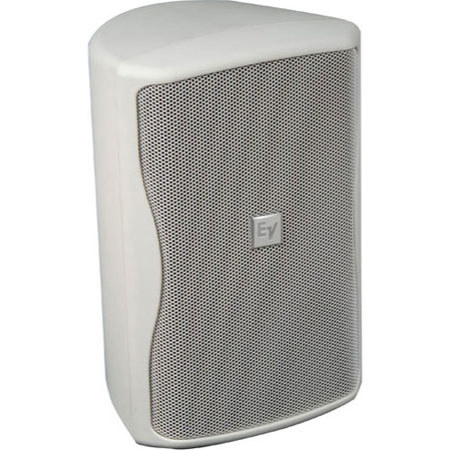

Electro-Voice ZX1i-90t 2-Way 8" 200W Weatherized Indoor/Outdoor Install Loudspeaker, 90x90deg., 8 Ohm Nominal Impedance, 94dB, 60Hz-20 kHz, Single, White

SKU: EVZX1I90TW MFR: F.01U.265.582
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • This weatherized PA speaker is perfect for indoor/outdoor installations.
  • Achieve optimal audio with 200W continuous power for clear, crisp sound.
  • Enjoy versatile connectivity with 4-pin Phoenix connector for easy setup.
  • Durable PA speaker with robust build ensures long-lasting performance.
  • Get wide sound coverage with 90x90 degree dispersion from this PA speaker.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice ZX1i-90t Specifications

  • Frequency Response (-3dB)

    60 Hz - 20 kHz

  • Frequency Response (-10dB)

    48 Hz - 20 kHz

  • Recommended High-Pass Frequency

    40Hz

  • Axial Sensitivity

    94 dB (1W/1m)

  • Maximum Calculated SPL

    123 dB

  • Horizontal Coverage

    90 deg.

  • Vertical Coverage

    90 deg.

  • Enclosure Rotation

    +/-35 deg.

  • Enclosure Sweep

    +/-45 deg.

  • Rated System Power

    200W continuous
    400W Program
    800W Peak

  • LF Transducer

    EV8L, 8 in (203mm) Driver

  • HF Transducer

    DH2005, 1 in. (25.4mm) Exit Compression Driver

  • Crossover Frequency

    1.7kHz

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6Ohm

  • Wattage Taps

    70V- 6, 12.5, 25, 50, 100, 8Ohm bypass
    100V- 12.5, 25, 50, 100, 8Ohm bypass

  • Overload Protection

    Full protection

  • Connector

    4-pin Phoenix

  • Enclosure Material

    High Impact Polystyrene

  • Suspension

    Integrated QuickSAM Heavy duty strong arm mountong bracket

  • Grill

    Polyester Powder Coated, 18GA Galvanized Steel

  • Dimensions (H x W x D)

    17.75 x 11.12 x 10.35" / 451 x 282.44 x 263mm

  • Weight

    Without Transformer: 8.4kg / 18.51lbs
    With Transformer: 104kg / 22.92lbs

  • UPC Code

    00800549682558

About Electro-Voice ZX1i-90t

Bring your audio experience to the next level with the Electro-Voice ZX1i-90t 2-Way 200W 8" White Weatherized Indoor/Outdoor Install Loudspeaker. This high-performance, versatile sound reinforcement package sets a new standard in audio quality, offering an uncompromising listening experience in a compact, easy-to-install design.

Constructed with injection-molded high-impact polypropylene, the ZX1i-90t is not just stylish but also extremely durable. Its enclosure geometry is meticulously engineered to provide maximum rigidity and superior acoustic performance. The velocity compensated port design overcomes the limitations of many small cabinet loudspeakers, enabling exceptional low-frequency response without vent noise.

Installation is a breeze with the included QuickSAM mounting system. This unique, integrated mounting bracket is virtually foolproof, allowing for easy snap-on installation and adjustment to the desired position. For those seeking array mounting, an optional array bracket kit is available, enabling multiple units to be mounted together in a variety of configurations.

The ZX1i-90t features a special circuit that reconfigures itself to a current actuated Hi-Pass filter at the transformer primary when in transformer mode. This gently rolls off the lowest frequencies to maintain a safe load on the amplifier without affecting the higher (vocal) frequencies, ensuring uninterrupted audio playback.

Designed to withstand the elements, the ZX1i-90t's molded polymer enclosure is water-resistant. The multilayer grille with hydrophobic cloth and weatherized components allow the ZX1i-90t to perform under various environmental conditions.

The ZX1i-90t is equipped with a long excursion, high output 8" woofer with a weatherized treated cone, delivering smooth low-frequency performance with exceptional reliability. A sophisticated crossover network integrates it with the DH2005, a 1.25" voice coil true compression driver for maximum output with extended frequency response. Full-bandwidth overload protection is provided for reliable, long-term operation without audible effect.

The 100deg. X 100deg. horn provides broad, even dispersion, ideal for many distributed audio applications. The rotatable horn design allows the ZX1i-90t cabinet to be oriented either horizontally or vertically, offering ultimate design flexibility.

The ZX1i-90t also features Automatic Saturation Compensation (ASC), a unique circuit that adjusts the characteristics of the transformer to create a "stable" load even at very high power levels. This feature virtually eliminates the possibility of the amplifier going into protect mode or causing amplifier damage.

In summary, the Electro-Voice ZX1i-90t 2-Way 200W 8" White Weatherized Indoor/Outdoor Install Loudspeaker is a reliable, high-quality, and advanced audio solution, offering superior sound quality and durability in a stylish, easy-to-install package.

Electro-Voice ZX1i-90t Features

  • Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
  • Patented ASC (Automatic Saturation Compensation) on Transformer Versions
  • EV8L 8" Weatherized Cone High-Output LF Transducer
  • DH2005 1" Exit True Compression Driver

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • This weatherized PA speaker is perfect for indoor/outdoor installations.
  • Achieve optimal audio with 200W continuous power for clear, crisp sound.
  • Enjoy versatile connectivity with 4-pin Phoenix connector for easy setup.
  • Durable PA speaker with robust build ensures long-lasting performance.
  • Get wide sound coverage with 90x90 degree dispersion from this PA speaker.

What's in the box:

  • Electro-Voice ZX1i-90t 2-Way 200W 8 " Weatherized Indoor/Outdoor Install Loudspeaker
  • QuickSAM Mount
  • Electro-Voice 5 Year Limited Warranty
