Gefen 1:4 DVI Dual Link Splitter Specifications

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Input Video Signal

    1.2V p-p

  • Dimensions (W x D x H)

    17.1 x 4.2 x 1.75" / 434.34x 106.68 x 44.45mm

  • Power Consumption

    20W (max.)
    0.5W (standby)

  • Maximum Pixel Clock

    2x 165MHz

  • Video Output Connectors

    4x DVI-D, 29-pin, Female

  • Power Supply

    5V DC, Locking connector

  • Input DDC Signal

    5V p-p (TTL)

  • RS-232 Port

    DB-9 Female

  • Video Input Connector

    DVI-D, 29-pin, Female

  • UPC Code

    845344093178

About Gefen 1:4 DVI Dual Link Splitter

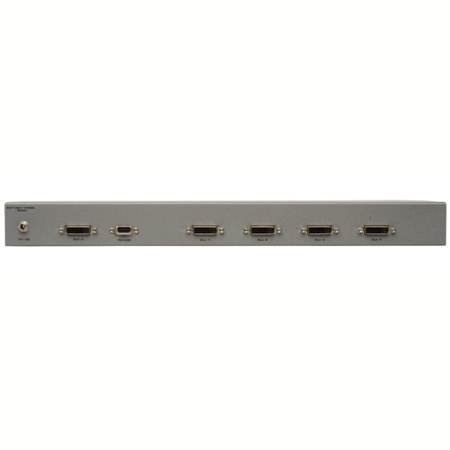

Split one Dual Link DVI source to four Dual Link DVI outputs
The 1:4 DVI Dual Link Splitter distributes a dual link DVI source to four DVI dual link outputs, without losing quality or resolution. It works with any dual link DVI computer supporting resolutions up to 2560 x 1600. The DVI-DL Splitter supports internal or pass-through EDID selections, output masking on/off and can be placed in standby mode, which keeps the unit idle using only 1W of power when the source is inactive. Using the RS-232 port allows making mode changes for the EDID and output masking in addition to firmware upgrade.

How It Works
Connect the DVI dual link from the source computer to the input port on the 1:4 DVI Dual Link Splitter, using the included 6 ft. dual link cable. Connect up to four dual link DVI devices to the four outputs on the Splitter. Connect the provided locking power supply to the Splitter and the AC power cord to an available electrical outlet.

Features
• Distributes a dual link source to four DVI dual link outputs
• Supports 1080p, 2K and 2560 x 1600 resolutions
• EDID management for rapid integration of source and displays
• Output masking
• Field upgradeable via RS-232
• Standby mode
• Locking power supplies
• Rack-mountable

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Gefen EXT-DVI-144DL 1:4 DVI Dual Link Splitter
  • CAB-DB9-6MF 6' DB-9 Cable (M-F)
  • CAB-DVIC-DL-06MM 6' Dual Link DVI Copper Cable
  • EXT-PS54AULPN 5V DC Locking Power Supply
  • CAB-POWERCORD-XX AC Power Cord
  • EXT-RACK-19-GRY Set of Rack Ears
  • QSG-DVI-144DL Quick-Start Guide
  • Gefen 2 Year Limited Warranty
