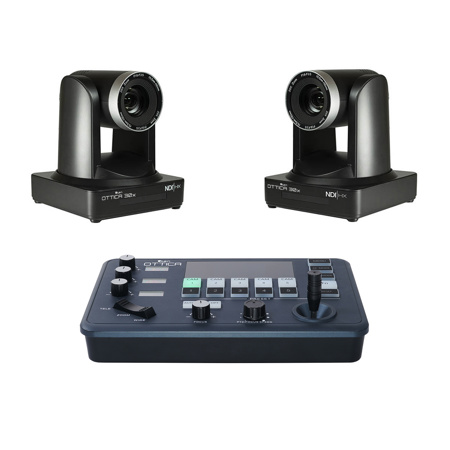

Ikan OTTICA Bundle with 2x Full HD NDI|HX 30x PTZ Video Camera and IP Controller V2, Black

An all-inclusive package for high-quality video production, the OTTICA Bundle with 2x Full HD NDI|HX 30x PTZ Video Camera and IP Controller V2, Black, is designed to deliver superior performance in various settings such as houses of worship, broadcasting, education, medical, sports, and live production applications.

This bundle features two OTTICA NDI|HX PTZ Video Cameras and an OTTICA PTZ Camera Controller, providing a comprehensive solution for a multi-camera video production setup. With the IP Controller, you can seamlessly switch between and control multiple OTTICA cameras, enhancing the efficiency of your production process.

The OTTICA 30x PTZ Video Camera, a product of Ikan, is equipped with a 1/2.8" CMOS sensor and a 4.3-129mm varifocal lens with 30x zoom. This allows it to capture high-resolution videos of up to 1080p at 60fps. The camera supports a wide range of connectivity options including POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in.

The camera's step drive motor mechanism and motor drive controller ensure smooth and noiseless PTZ operation. It supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats, providing high-quality video and audio output.

The OTTICA camera employs advanced ISP processing algorithms to deliver vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding, ensuring fluent and clear motion video even under less than ideal bandwidth conditions.

The camera's 1/2.8 inch high-quality CMOS sensor supports resolutions up to 1920x1080 with frame rates up to 60 fps. The 3G-SDI output works up to 100 meters in distance with transmission at 1080p60 format.

The OTTICA camera features a 4.3-129mm f/1.6-3.5 varifocal lens with a viewing angle ranging from 2.34 Degree (tele) to 65.1 Degree (wide) and offers 30x optical zoom. Its autofocus algorithm ensures fast, accurate, and stable lens focusing performance.

The camera's high SNR is ensured by the Low Noise CMOS, and advanced 2D/3D noise reduction technology further reduces the noise while ensuring image sharpness. The high accuracy step-driving motor mechanism allows the OTTICA to perform smoothly and quietly even when moving quickly to any position.

The OTTICA supports a low-power sleep/wake up function, consuming less than 500mW while in sleep mode. It also supports RS-232 cascade function for easy installation. You can program up to 255 preset camera positions (10 presets by IR remote).

The OTT-CONTROLLER-V2 allows you to control up to 5 cameras using either IP or analog control protocols. It features a high-quality 2-axis joystick for smooth control of pan & tilt, and a zoom rocker. Two separate knobs allow for control of Focus & PTZ/Focus Speed.

The large LED screen displays menu settings and network information, while the smaller LED screens allow you to control various exposure and color parameters. The controller enables you to mix & match different control protocols simultaneously, including IP VISCA, VISCA, PELCO D/P.

The bundle includes an OTTICA PTZ Camera Wall Mount that supports the OTTICA camera using a 1/4"-20 screw on the bottom, providing a sturdy long-term mounting solution.

Please note that Ikan's OTTICA cameras do not require the additional purchase of an NDI License to use and/or operate. Licensing is already included in the camera pricing. The OTTICA camera is NOT compatible with the Blackmagic Design ATEM Television Studio HD at 1080p 60fps. However, it is compatible with any other video switcher including Black Magic's other ATEM switchers such as the ATEM Mini & ATEM Mini Pro.
