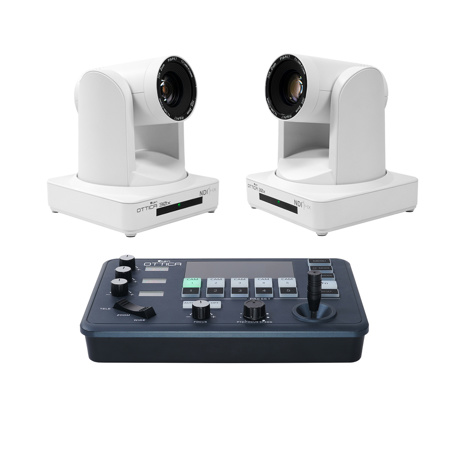

Ikan OTTICA Bundle with 2x Full HD NDI|HX 30x PTZ Video Camera and IP Controller V2, White

Just imagine the possibilities with the OTTICA Bundle, featuring 2 Full HD NDI|HX 30x PTZ Video Cameras and an IP Controller V2. This comprehensive package is designed to facilitate a seamless multi-camera video production setup, making it an ideal choice for diverse applications such as broadcasting, education, live production, medical use, sports, and houses of worship.

The OTTICA 30x PTZ Video Camera, manufactured by Ikan, is equipped with a 1/2.8" CMOS sensor and a 4.3-129mm varifocal lens. This combination allows for a 30x zoom capacity and the ability to capture high-definition videos at a maximum resolution of 1080p at 60fps.

The camera's connectivity options are extensive, supporting POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in. This ensures easy integration into various setups. The camera's step drive motor mechanism and motor drive controller ensure smooth and noiseless PTZ operation, enhancing the user experience.

The OTTICA camera employs advanced ISP processing algorithms, delivering vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding, ensuring motion video remains fluent and clear, even under less than ideal bandwidth conditions.

The camera's high-quality CMOS sensor supports resolutions up to 1920x1080 with frame rates up to 60 fps. Outputs include HDMI,3G-SDI, & wired LAN (NDI|HX). The 3G-SDI can work up to 100 meters in distance with transmission at 1080p60 format.

The OTTICA camera also features a 4.3-129mm f/1.6-3.5 varifocal lens with a viewing angle ranging from 2.34 Degree (tele) to 65.1 Degree (wide) and offers 30x optical zoom. Its autofocus algorithm ensures fast, accurate, and stable lens focusing performance.

The OTTICA camera's low noise CMOS effectively ensures a high SNR. Advanced 2D/3D noise reduction technology is also used to further reduce noise while ensuring image sharpness.

The OTTICA camera also supports a low-power sleep/wake up function, RS-232 cascade function, and allows programming of up to 255 preset camera positions.

The OTT-CONTROLLER-V2 offers flexibility when operating different OTTICA cameras with different control protocols. It allows you to mix & match different control protocols simultaneously, including IP VISCA, VISCA, PELCO D/P.

The bundle also includes an OTTICA PTZ Camera Wall Mount, providing a sturdy long-term mounting solution. The Ikan OTT-CONTROLLER-V2 is a compact PTZ controller that allows you to control up to 5 cameras using either IP or analog control protocols.

This compact camera controller features a high-quality 2-axis joystick for smooth control of pan & tilt, and a zoom rocker. Two separate knobs allow for control of Focus & PTZ/Focus Speed. The speed knob provides 7 levels of adjustment.

The large LED screen displays menu settings and network information, whereas the smaller LED screens allow you to control various exposure and color parameters.

Note: The OTTICA camera is NOT compatible with the Blackmagic Design ATEM Television Studio HD at 1080p 60fps. It is, however, compatible with any other video switcher including Black Magic's other ATEM switchers such as the ATEM Mini & ATEM Mini Pro.
