JBL AC266 12" 2-Way Full-Range Passive Loudspeaker System, 60x60 Degree Coverage Pattern, Black

SKU: JBAC266 MFR: AC266
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this JBL passive PA speaker system.
  • Achieve wide sound coverage with the 60x60 degree pattern, perfect for venues.
  • This durable PA speaker delivers 250W continuous power for reliable performance.
  • Ideal for live sound, enjoy high-quality audio with a 12" woofer and 1" driver.
  • Easily mount this PA speaker with multiple M10 threaded suspension points.
  • Get pristine audio for vocals and instruments with this full-range JBL speaker.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL AC266 Specifications

  • Finish

    Textured black paint finish

  • Active or Passive

    Passive

  • Frequency Response (+/-3 dB)

    80 Hz to 18 kHz

  • Frequency Range (-10 dB)

    63 Hz to 20 kHz

  • Power Capacity

    Long-Term System: 250 W/500 W/1000 W (Continuous/Program/Peak)
    System Power Rating (AES): 350 W (1400 W peak), 2 hours

  • Maximum Sound Pressure Level (SPL)

    3.2' (1m): 121 dB (127 dB peak)

  • Nominal Sensitivity

    1 W @ 3.2' (1m): 97 dB

  • Impedance

    8 Ohms

  • Crossover

    1.5 kHz

  • Coverage Pattern

    60 x 60 Degree

  • Low Frequency Driver

    1x 12" (304.8 mm) woofer (P/N: 5050730) with 2.5" (63.5 mm) voice coil

  • High Frequency Driver

    1x 2408H-2 driver with 1" (25.4 mm) exit / 1.5" (38 mm) voice-coil

  • Enclosure Material

    0.59" (15 mm) multi-ply hardwood plywood

  • Grille

    Powder coated, 0.05" (1.5 mm) perforated steel, with acoustically transparent black foam backing

  • Input Connections

    Dual Neutrik NL4MP connectors plus covered barrier trip terminals

  • Mounting

    14x M10 threaded suspension points
    4x M10 for wall mount bracket

  • Dimensions

    23.6 x 14.5 x 15.4" (600 x 368 x 391mm)

  • Weight

    38.3 lb (17.4kg)

About JBL AC266

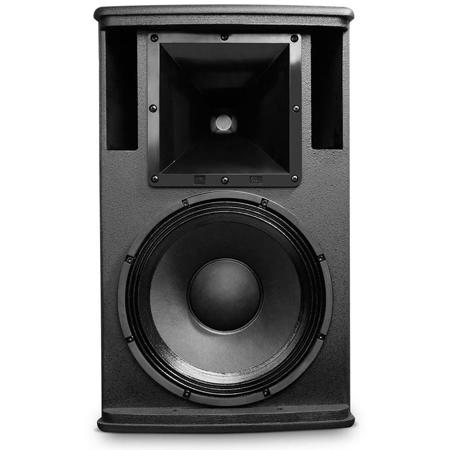

Under the umbrella of JBL's AE Application Engineered Series, the AC266 12" 2-Way Full-Range Passive Loudspeaker System stands out as a versatile audio solution for a myriad of fixed installation applications. This compact loudspeaker system is engineered with a 310 mm (12") low-frequency driver and a 25 mm (1") exit/35 mm (1.5") voice-coil compression driver, delivering high-quality sound that fills your space.

The AC266 features a unique 60x60 degree coverage pattern, ensuring consistent sound distribution in both vertical and horizontal orientations. This broad coverage is further enhanced by high-slope passive crossovers, which work to minimize band overlap and provide well-controlled off-axis response, resulting in a balanced and immersive audio experience.

Designed with practicality in mind, the AC266 loudspeaker system is fitted with M10 threaded suspension points for secure installation. Additionally, four threaded inserts on the back of the enclosure allow for the attachment of a MultiMount or similar type mounting, offering flexibility in setup and placement.

Whether you're outfitting performing spaces, clubs & bars, houses of worship, multimedia spaces, retail & hospitality spaces, presentation suites, or educational facilities, the AC266 12" 2-Way Full-Range Passive Loudspeaker System delivers the robust and reliable audio performance that JBL is known for. Its sleek black design seamlessly blends into any decor, making it a perfect choice for any venue or event.

JBL AC266 Features

  • Robust 15mm enclosure with black textured finish
  • 310 mm (12") LF transducer
  • 60 Degree x 60 Degree Waveguide with a 25 mm (1") exit 35mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful, crystal-clear audio with this JBL passive PA speaker system.
  • Achieve wide sound coverage with the 60x60 degree pattern, perfect for venues.
  • This durable PA speaker delivers 250W continuous power for reliable performance.
  • Ideal for live sound, enjoy high-quality audio with a 12" woofer and 1" driver.
  • Easily mount this PA speaker with multiple M10 threaded suspension points.
  • Get pristine audio for vocals and instruments with this full-range JBL speaker.

What's in the box:

  • AC266 12 " 2-Way Full-Range Passive Loudspeaker System (Black)
  • JBL 5 Year Limited Warranty
