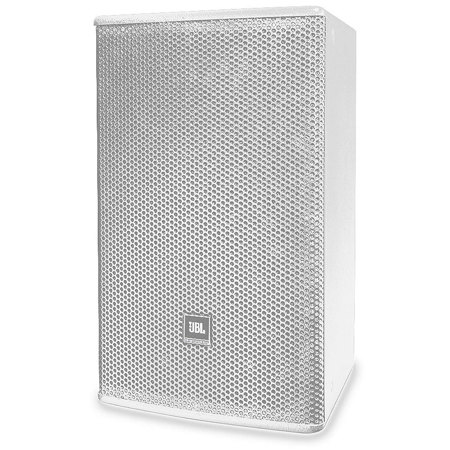

JBL AC266 12" 2-Way Full-Range Passive Loudspeaker System, 60x60 Degree Coverage Pattern, White

SKU: JBAC266WH MFR: AC266-WH
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this JBL 12" passive PA speaker system.
  • Achieve superior audio clarity with a wide 60x60 degree coverage pattern.
  • This durable PA speaker is perfect for live sound, events, and installations.
  • Enjoy high-quality audio with a frequency response of 80 Hz to 18 kHz.
  • Get flexible connectivity with dual Neutrik NL4MP connectors for your PA system.
  • Easily mount this 2-way loudspeaker using its 14 M10 threaded suspension points.
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL AC266 Specifications

  • Finish

    White

  • Active or Passive

    Passive

  • Frequency Response (+/-3 dB)

    80 Hz to 18 kHz

  • Frequency Range (-10 dB)

    63 Hz to 20 kHz

  • Power Capacity

    Long-Term System: 250 W/500 W/1000 W (Continuous/Program/Peak)
    System Power Rating (AES): 350 W (1400 W peak), 2 hours

  • Maximum Sound Pressure Level (SPL)

    3.2' (1m): 121 dB (127 dB peak)

  • Nominal Sensitivity

    1 W @ 3.2' (1m): 97 dB

  • Impedance

    8 Ohms

  • Crossover

    1.5 kHz

  • Coverage Pattern

    60 x 60 Degree

  • Low Frequency Driver

    1x 12" (304.8 mm) woofer (P/N: 5050730) with 2.5" (63.5 mm) voice coil

  • High Frequency Driver

    1x 2408H-2 driver with 1" (25.4 mm) exit / 1.5" (38 mm) voice-coil

  • Enclosure Material

    0.59" (15 mm) multi-ply hardwood plywood

  • Grille

    Powder coated, 0.05" (1.5 mm) perforated steel, with acoustically transparent black foam backing

  • Input Connections

    Dual Neutrik NL4MP connectors plus covered barrier trip terminals

  • Mounting

    14x M10 threaded suspension points
    4x M10 for wall mount bracket

  • Dimensions

    23.6 x 14.5 x 15.4" (600 x 368 x 391mm)

  • Weight

    38.3 lb (17.4kg)

About JBL AC266

Because sound quality matters, the AC266 12" 2-Way Full-Range Passive Loudspeaker System is designed to deliver superior audio performance. This compact system is engineered with a 310 mm (12") low-frequency driver and a 25 mm (1") exit/35 mm (1.5") voice-coil compression driver, ensuring a robust and clear sound output.

The unique feature of this loudspeaker system is its 60x60 degree coverage pattern. This means it provides consistent sound quality in both vertical and horizontal orientations, making it an ideal choice for various spaces. The high-slope passive crossovers are designed to minimize band overlap and provide well-controlled off-axis response, enhancing the overall sound experience.

The AC266 Loudspeaker System is not just about superior sound; it's also about durability and versatility. The cabinet is equipped with M10 threaded suspension points, and the back of the enclosure features four threaded inserts for easy attachment of a MultiMount or similar type mounting.

This product is a proud member of JBL's AE Application Engineered Series, a range of loudspeakers specifically designed for a wide variety of fixed installation applications. Whether it's performing spaces, clubs & bars, houses of worship, multimedia spaces, retail & hospitality spaces, presentation suites, or educational facilities, the AC266 12" 2-Way Full-Range Passive Loudspeaker System is engineered to deliver exceptional sound quality in any setting.

JBL AC266 Features

  • Robust 15mm enclosure with black textured finish
  • 310 mm (12") LF transducer
  • 60 Degree x 60 Degree Waveguide with a 25 mm (1") exit 35mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful sound with this JBL 12" passive PA speaker system.
  • Achieve superior audio clarity with a wide 60x60 degree coverage pattern.
  • This durable PA speaker is perfect for live sound, events, and installations.
  • Enjoy high-quality audio with a frequency response of 80 Hz to 18 kHz.
  • Get flexible connectivity with dual Neutrik NL4MP connectors for your PA system.
  • Easily mount this 2-way loudspeaker using its 14 M10 threaded suspension points.

What's in the box:

  • AC266 12 " 2-Way Full-Range Passive Loudspeaker System (White)
  • JBL 5 Year Limited Warranty
